Rockwell Automation Publication 2094-UM001J-EN-P - March 2017 93
Connect the Kinetix 6000 Drive System Chapter 5

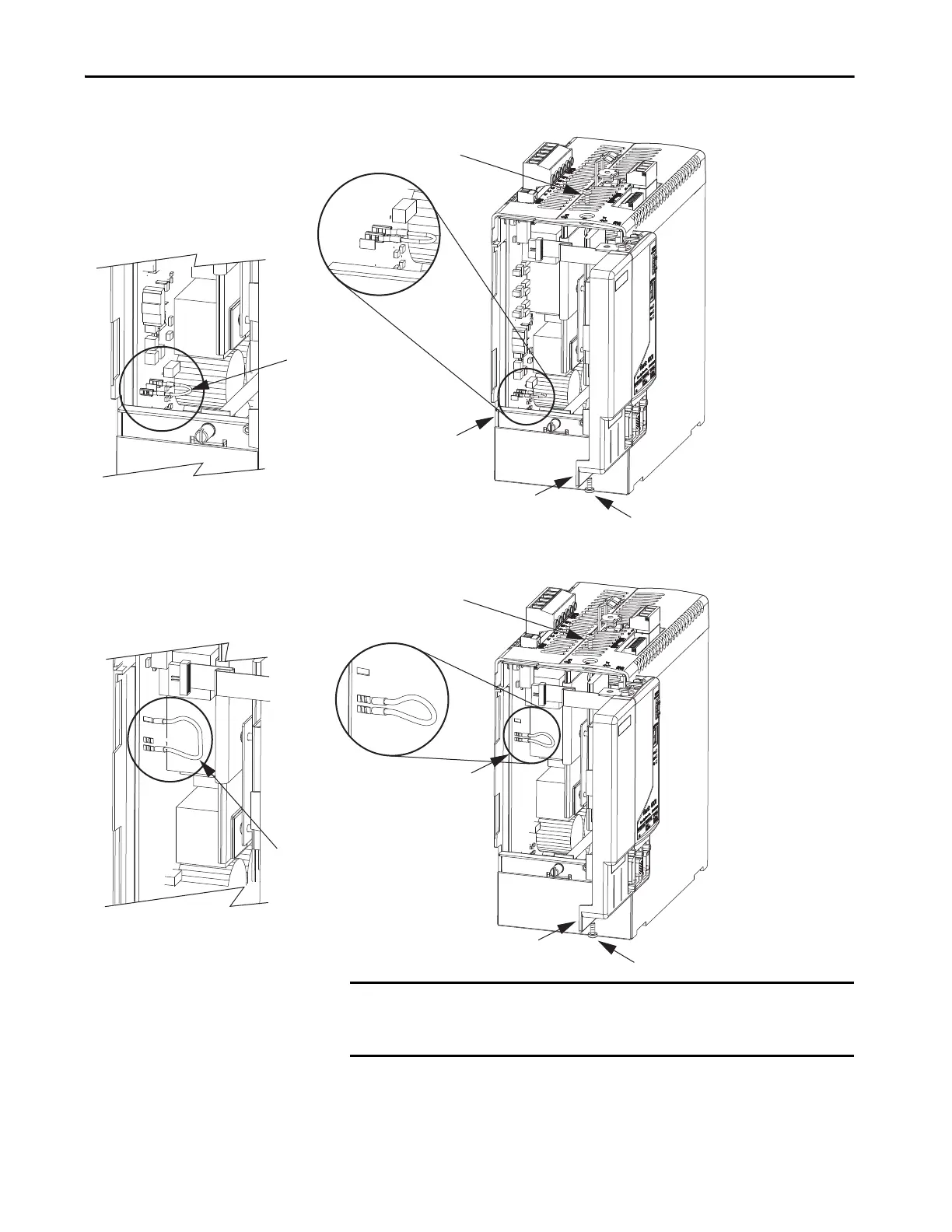

Figure 45 - Setting the Ground Jumper (460V Series A IAM modules)
P13
P14
P12
P13
P14
P12
Bottom Screw
Front Panel (opened)
Ground jumper set
for grounded configuration
(default setting).
Ground jumper set
for ungrounded configuration.
Top Screw
Bottom Screw
Front Panel (opened)
Ground jumper set
for grounded configuration
(default setting).
Ground jumper set
for ungrounded configuration.
Top Screw
2094-BC04-M03-x or
2094-BC07-M05-x
IAM Module (460V)
2094-BC01-MP5-x,
2094-BC01-M01-x, or
2094-BC02-M02-x
IAM Module (460V)
IMPORTANT Use the default jumper setting or remove the jumper entirely for grounded
power configurations. Move the jumper, as shown above, for ungrounded
power.

Allen-Bradley 2094-AC05-MP5 Specifications

General

Brand	Allen-Bradley
Model	2094-AC05-MP5
Category	Servo Drives
Language	English
