Chapter 2 Install the Controller
Install the SD Card

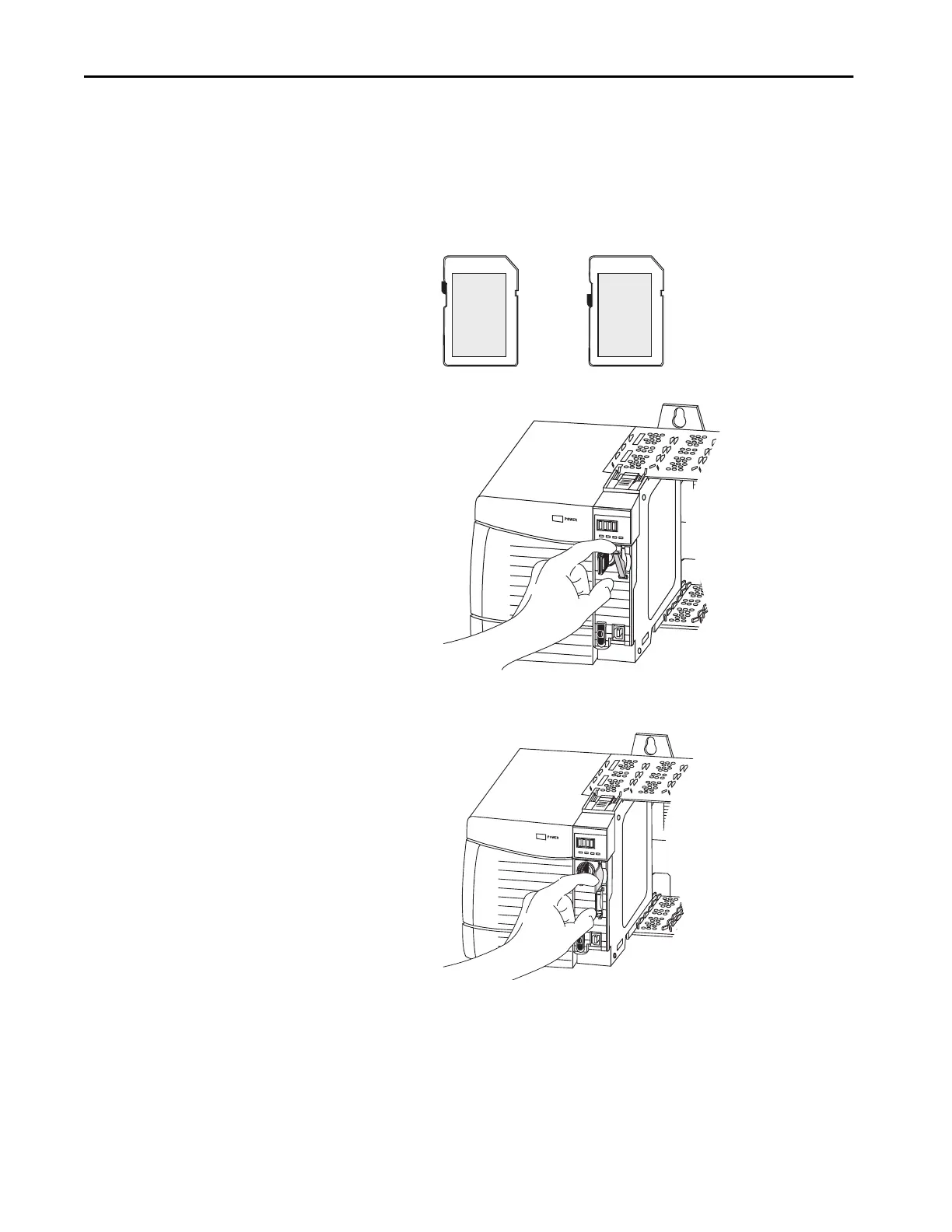

Follow these steps to install the SD card.
1. Verify that the SD card is locked or unlocked according to your
preference.
2. Open the door for the SD card.
3. Insert the SD card into the SD card slot.
4. Gently press the card until it clicks into place.
Unlocked
Locked
32005-M
Log
ix 55
xx
RUN
FORCE
SD
OK
Log
ix 55
xx
RUN
FORCE
SD
OK
32004-M
