5-6 Data Handling Instructions
Changes to the Math Register, S:13 and S:14
Used as the source for converting the entire number range of a register.
Example 1
The BCD value 9760 at source N7:3 is converted and stored in N10:0. The
maximum source value is 9999, BCD.
TIP
To convert numbers larger than 9999 BCD, the
source must be the Math Register (S:13). You must
reset the Minor Error bit (S:5/0) to prevent an error.

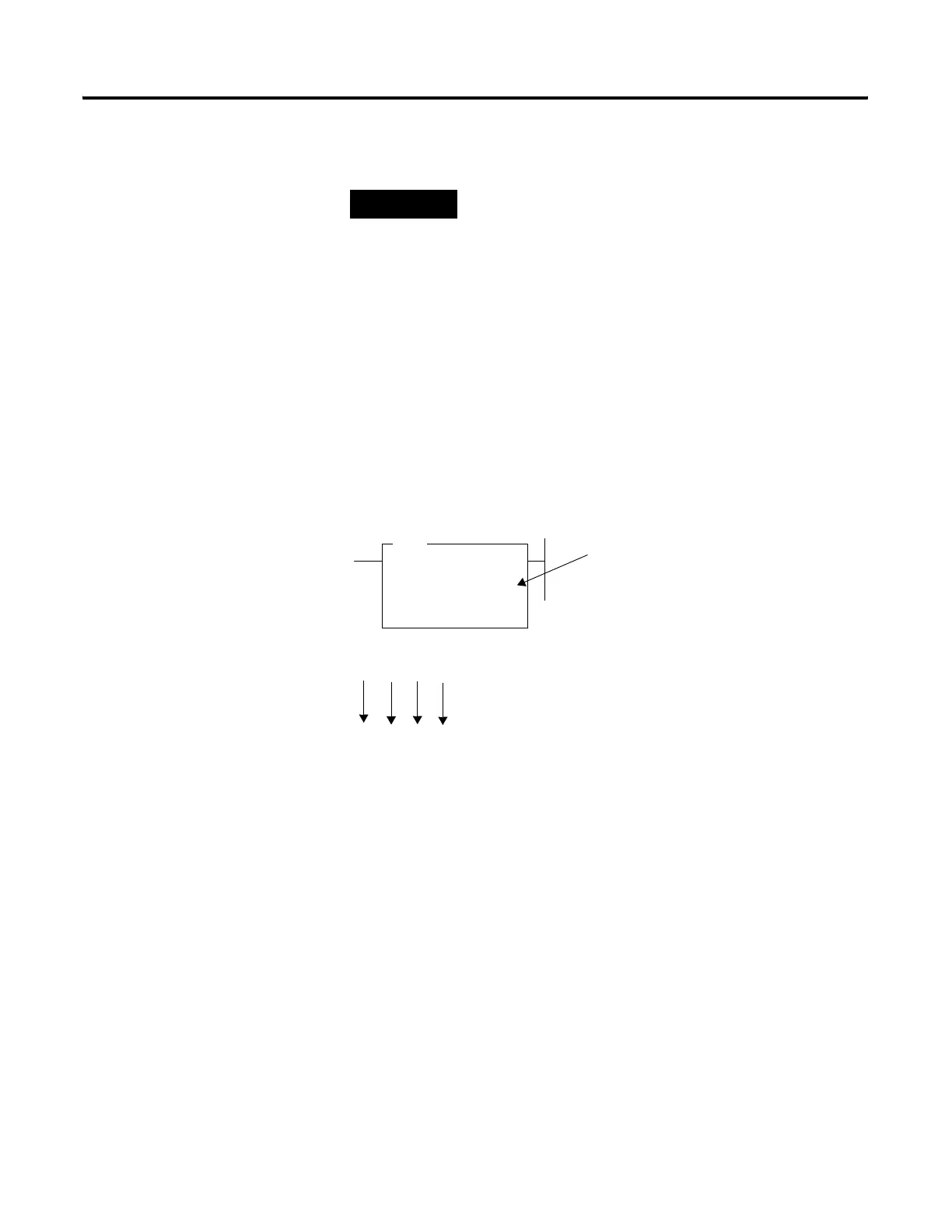

FRD
FROM BCD
Source N7:3
9760
Dest N10:0
9760
9760N7:3 4-digit BCD1001 0111 0110 0000
9760N10:0Decimal 0010 0110 0010 0000
The source value is displayed in
BCD format.
