SLC Communication Channels 13-37
Diagnostic Information
This section gives you access to the various diagnostic information screens
that are available. It is divided into two sections, the Network Stack Statistics
and Application Level Statistics. The Network Stack Statistics detail
information about the TCP/IP stack, while the Application Level Statistics are
related to the Allen-Bradley Client Server Protocol (CSP) and Common
Industrial Protocol (CIP) diagnostics.
The individual diagnostic screens automatically refresh using a time which is
configurable by the user and defaults to 15 seconds.

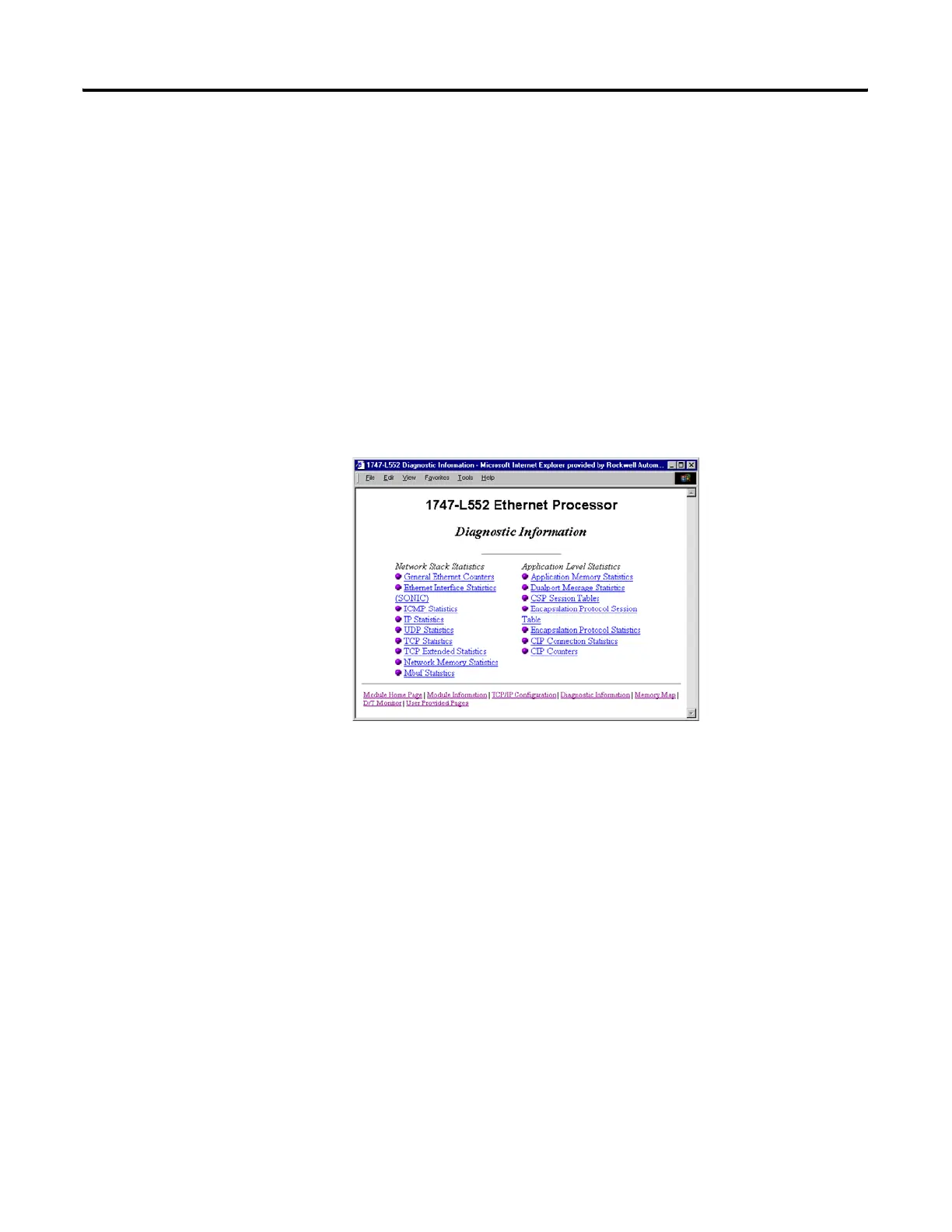

Figure 13.4 SLC 5/05 Diagnostic Information Main Page
To Next Page
