SLC Communication Channels 13-35
SLC 5/05 Embedded Web
Server Capability
SLC 5/05 processors with OS501, Series C, FRN 6 (or higher) include an
enhanced embedded web server (introduced in Series C, FRN 5) which allows
viewing of not only module information, TCP/IP configuration, and
diagnostic information, but also includes the data table memory map, data
table monitor screen, and user-provided web pages via Ethernet using a
standard web browser.
In order to view the web server main menu from a standard web browser,
type:
http://www.xxx.yyy.zzz for the web address
The www.xxx.yyy.zzz is the IP address of the SLC 5/05 processor.
The following topics appear on the main menu.
• Module Information
• TCP/IP Configuration
• Diagnostic Information
• Data Table Memory Map
• Data Table Monitor
• User Provided Pages

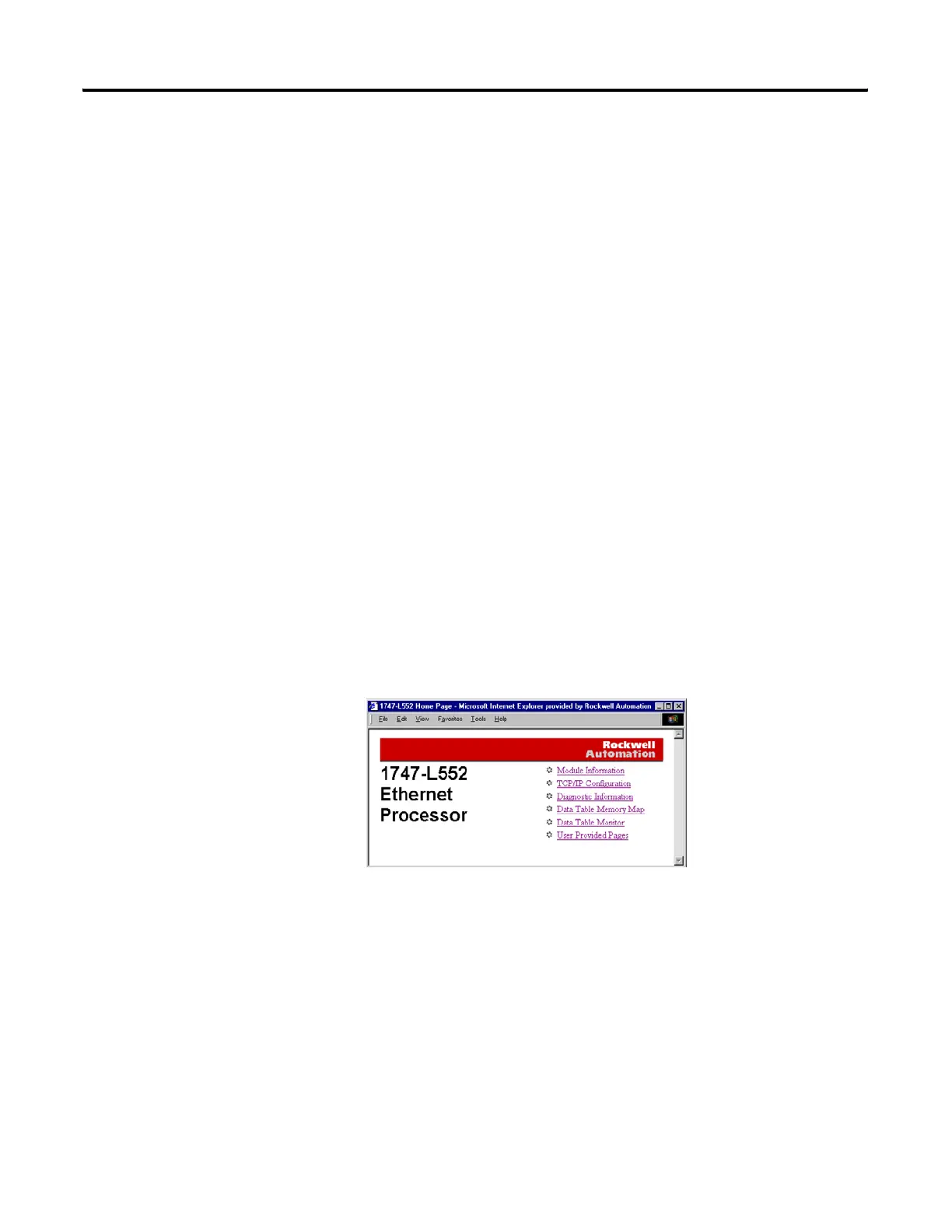

Figure 13.1 SLC 5/05 Home Page
Module Information
The module information page displays a table with information about the
processor. The specific information displayed includes the processor model,
series/revision of the processor, mode of the processor and the name of the
program in the processor. Also displayed is the revision/build of the Ethernet
firmware and the module uptime (time since power was last applied).
