13-94 SLC Communication Channels
Modbus RTU Master Channel Status
Channel Status data is stored in the diagnostic file defined on the Channel 0
Configuration screen.

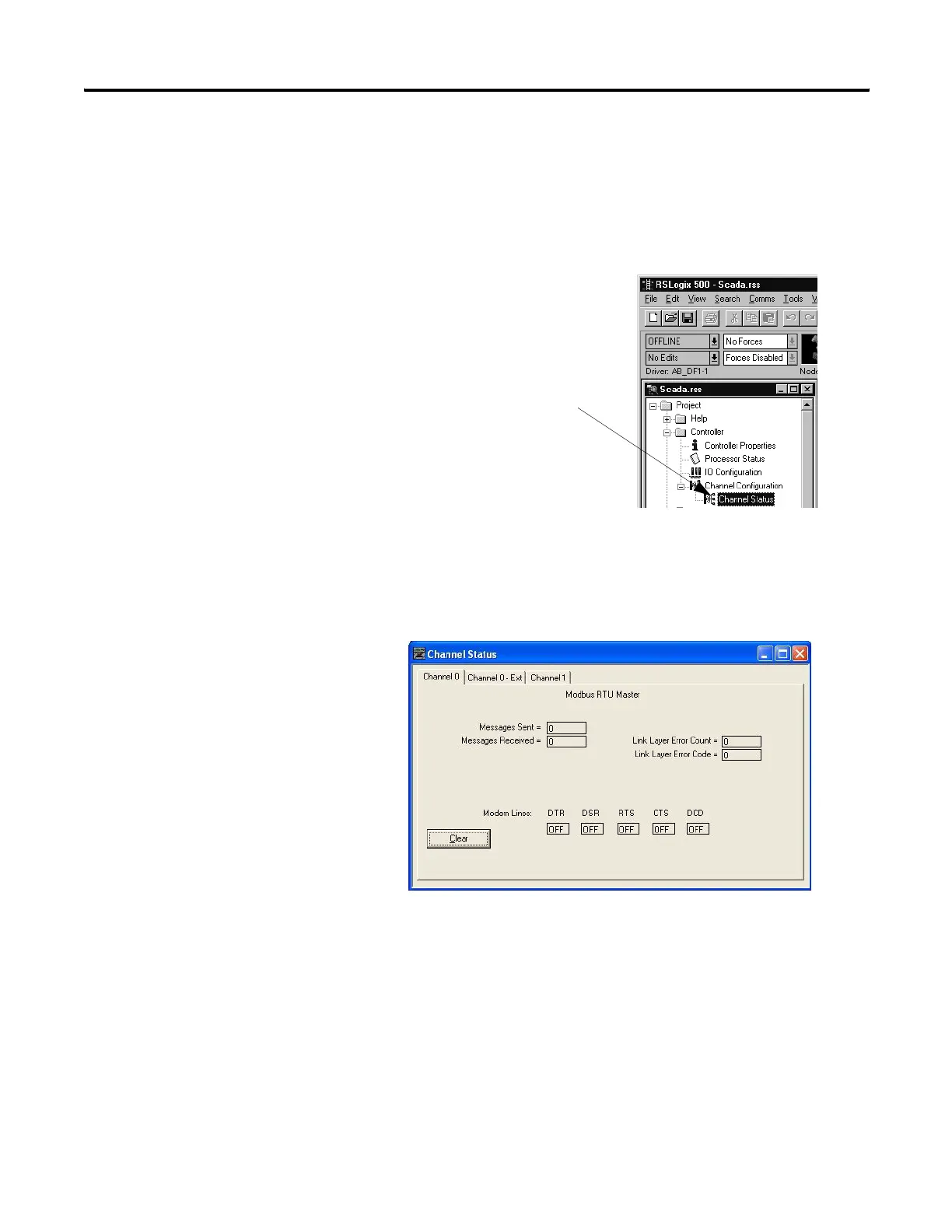

The Channel Status dialog box similar to the following appears. Data for the
data link layer diagnostic counters is displayed. See Table 13.27 for information
regarding the diagnostic counter data displayed.
Double-click on the Channel Status
Icon Located beneath the
Configuration icon to bring up the
Channel Status screen.
