Publication 1747-RM001G-EN-P - November 2008
15-18 Messaging Examples
SLC 5/05 Passthru
Examples
Passthru Example: DF1 to Ethernet
The IP Addresses used in the following illustration are for example purposes
only. Contact your system administrator for IP addresses unique to your
network.

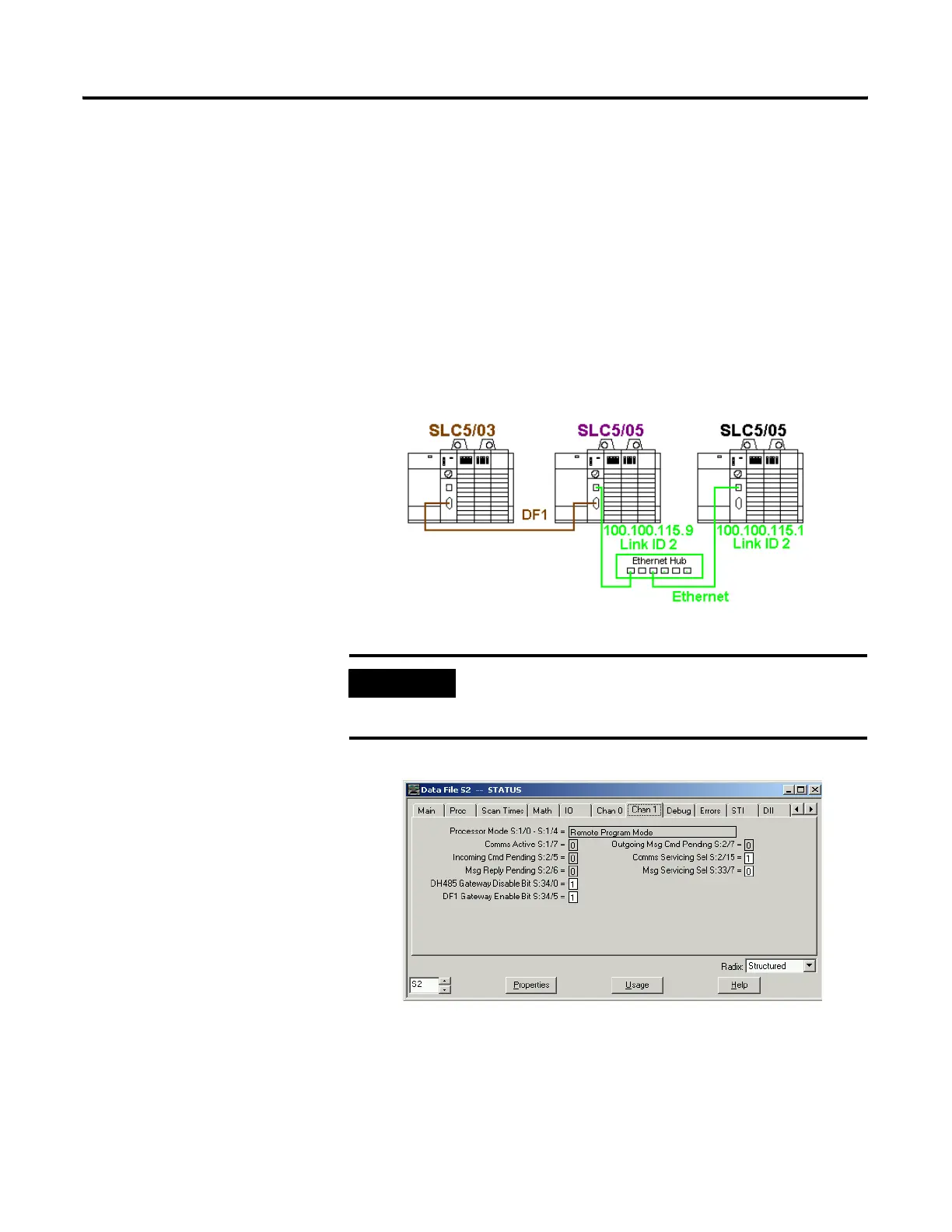

In the following diagram, a SLC 5/03 will send a local message via DF1 to the
SLC 5/05 (IP Address 100.100.115.9). The SLC 5/05 acts as a bridge, sending
the message out via Ethernet to the SLC 5/05 (IP Address 100.100.115.1),
whose address is stored in the routing table.
IMPORTANT
In the SLC 5/05 (IP Address 100.100.115.9) bridge,
Status File Bit S:34/5 must be set to 1 to enable
DF1-to-Ethernet passthru.
