Publication 1747-RM001G-EN-P - November 2008
15-20 Messaging Examples
Local node address is the station address in the SLC 5/05 (IP Address
100.100.115.9) routing table where the target IP address for SLC 5/05 (IP
Address 100.100.115.1) is stored.
SLC 5/05 (IP Address 100.100.115.9) Bridge
Ladder logic is not required for the SLC 5/05 which acts as the bridge from
DF1-to-Ethernet. However, you must set up a passthru routing table when

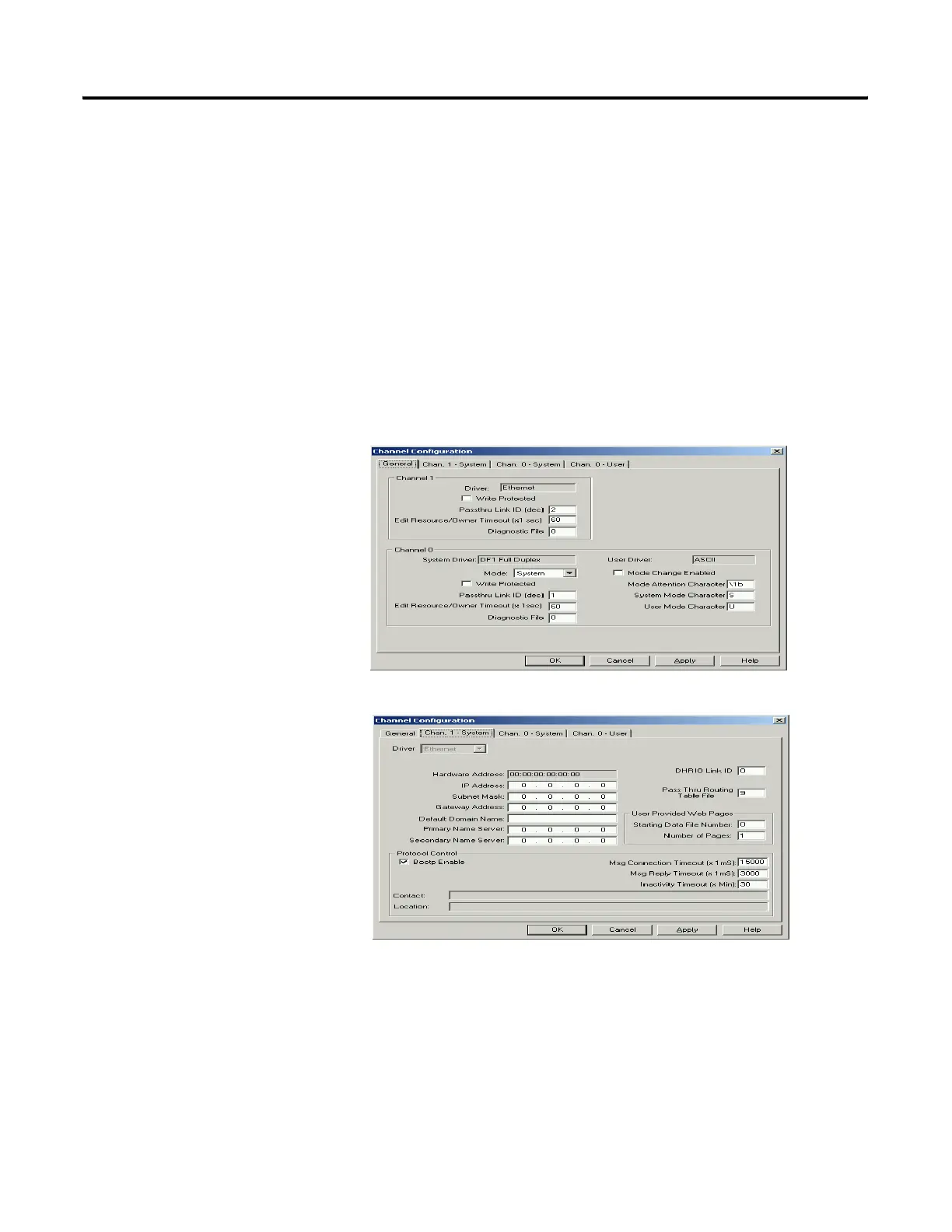

configuring the bridge. The General channel configuration page is shown
below, followed by the Channel 1 System configuration page with the Pass
Thru Routing Table File entry.
Passthru Link IDs are used by other processors to send remote MSG packets
through the SLC 5/05 (IP Address 100.100.115.9) when channel-to-channel
passthru is used. Passthru Link IDs must be properly specified in the remote
MSG instructions to enable channel-to-channel passthru. The default Passthru
Link ID for Channel 0 is one. The default Passthru Link ID for Channel 1 is
two.
