15-12 Messaging Examples
SLC 5/04 Passthru
Examples

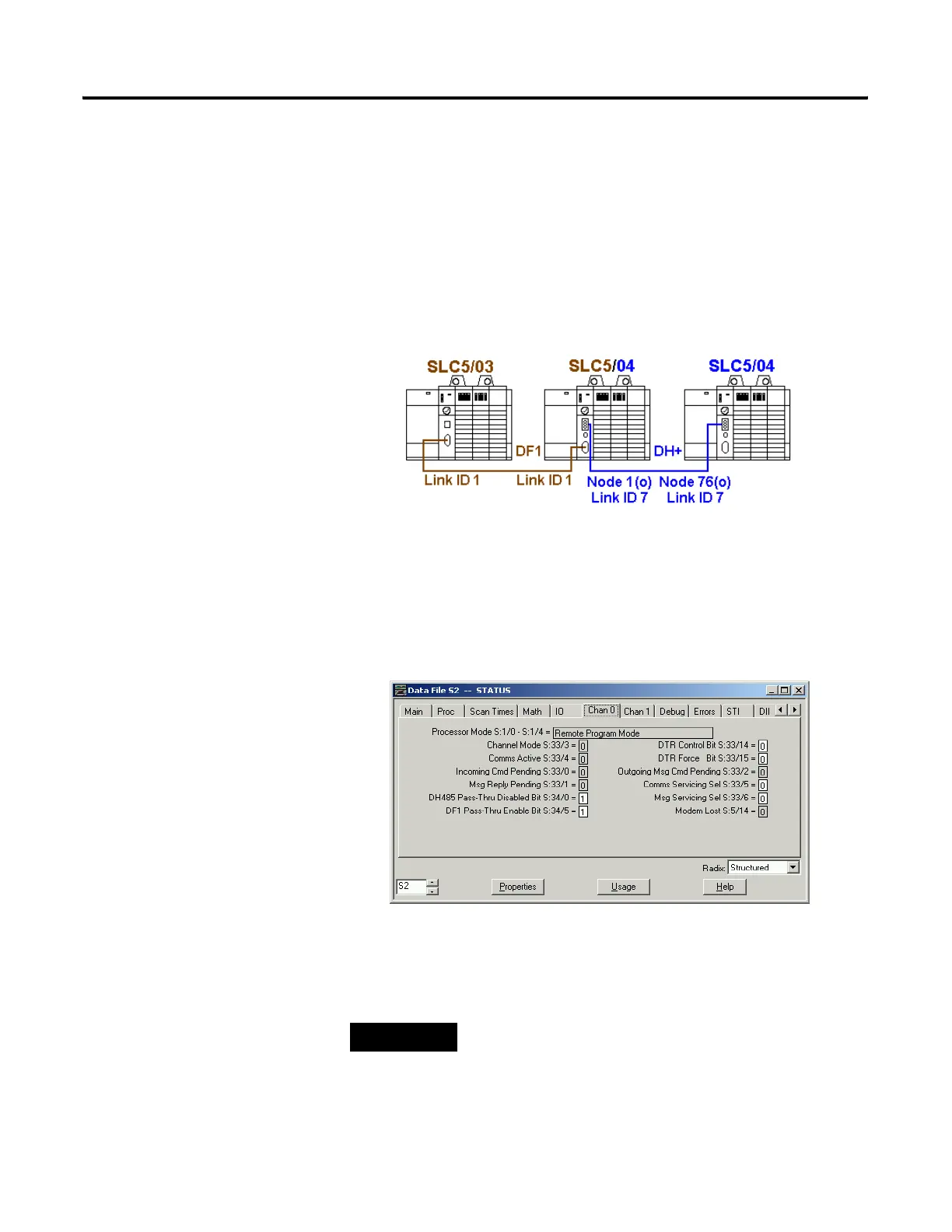

Passthru Example: DF1 to DH+
The following illustrates a SLC5/03 sending a local message via DF1 (CH0) to
a SLC5/04 processor. The SLC5/04 processor that receives the initial message
will send the message out DH+ to the SLC5/04 processor whose address
matches the Local Bridge Address on the DH+ network as long as DF1
Passthru is enabled.
1747-CP3 cable is used to connect the SLC5/03 CH0 port to the SLC5/04
CH0 port.
Status File Bit (S:34/5) must be set in the passthru processor in order to enable
the DF1-to-DH+ Passthru.
TIP
No programming logic is necessary in the passthru
processor.
