Publication 1747-RM001G-EN-P - November 2008
SLC Communication Channels 13-47
2. In the Address column, click on an underlined address to display the
radix selection page.
3. Click on a radio button to select the desired radix type.
To see the Sample Extended Format page:
1. Go back to the User-Provided Custom Data Table Monitor page.
2. In the Address column, click on the + before an address to display the
Sample Extended Format.

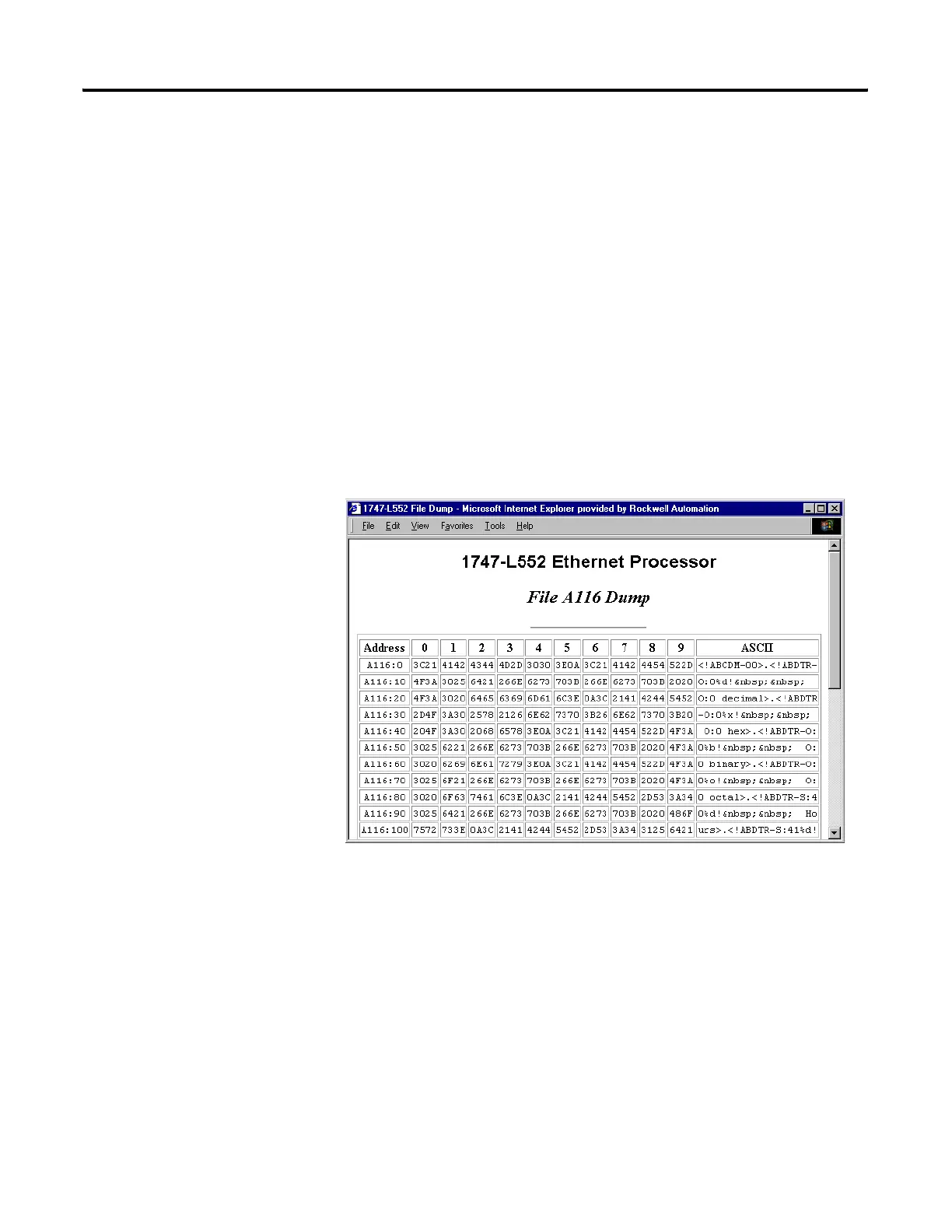

Click on the link under the file heading to display an ASCII dump of the
ASCII file. For example, click on the A116 to display the following screen.
Figure 13.11 File A116 Dump
