Messaging Examples 15-5

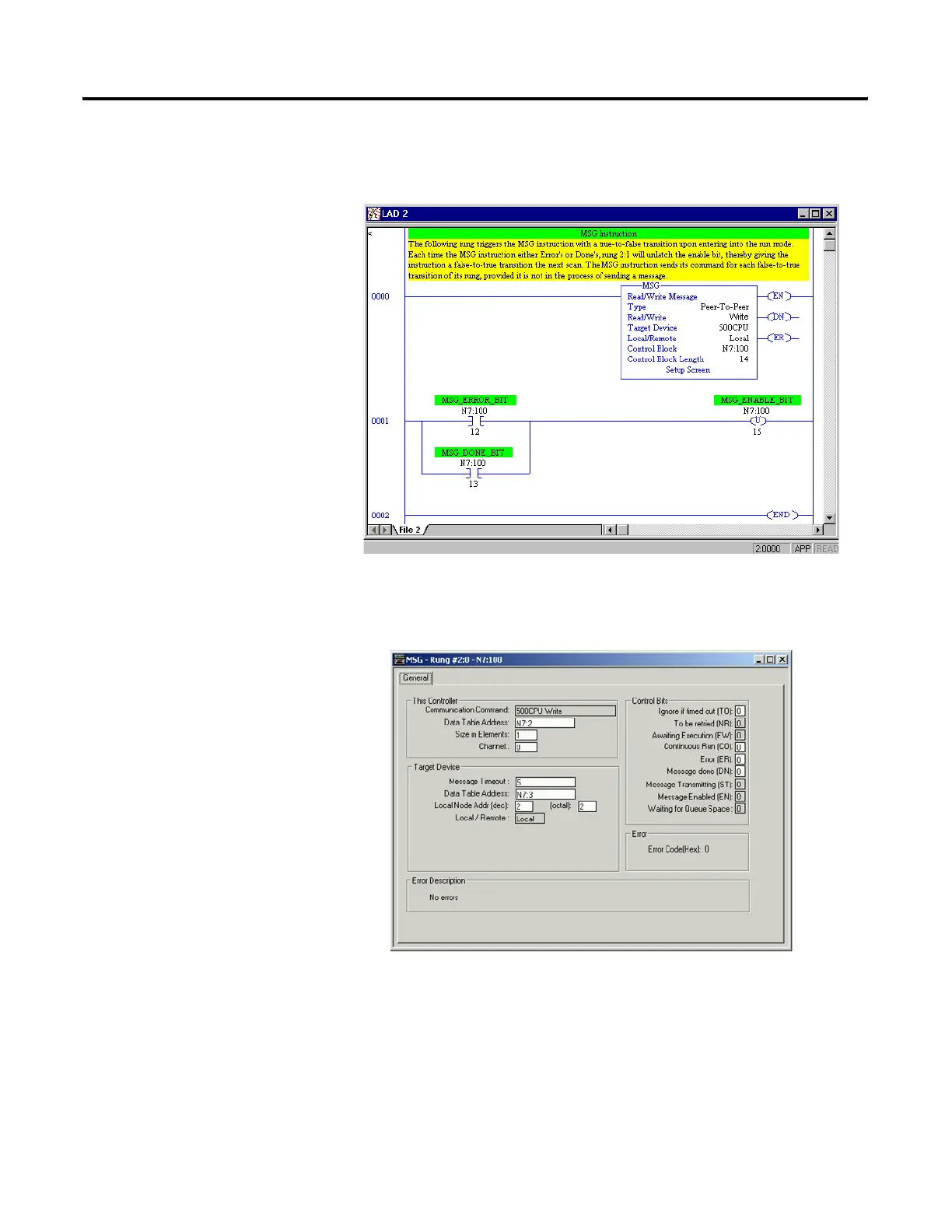

The following is the ladder logic necessary for the SLC 5/04 processor.
The following is the MSG setup for the SLC 5/04 processor.
The type of MSG instruction is Local. The local node address is the node
number of the destination DH-485 address.
For the step by step procedure for this example, refer to Knowledgebase
Document Number: G63635969.

Allen-Bradley SLC 500 Series Specifications

General

Programming Software	RSLogix 500
Series	SLC 500
Category	Controller
Manufacturer	Allen-Bradley (Rockwell Automation)
I/O Capacity	Up to 4096 I/O points
Communication Ports	DH-485
Programming Languages	Ladder Logic
Operating Temperature	0 to 60 °C (32 to 140 °F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
Power Supply	AC or DC (depending on the module)
