Allen-Bradley SLC 500 Series

Publication 1747-RM001G-EN-P - November 2008
15-14 Messaging Examples

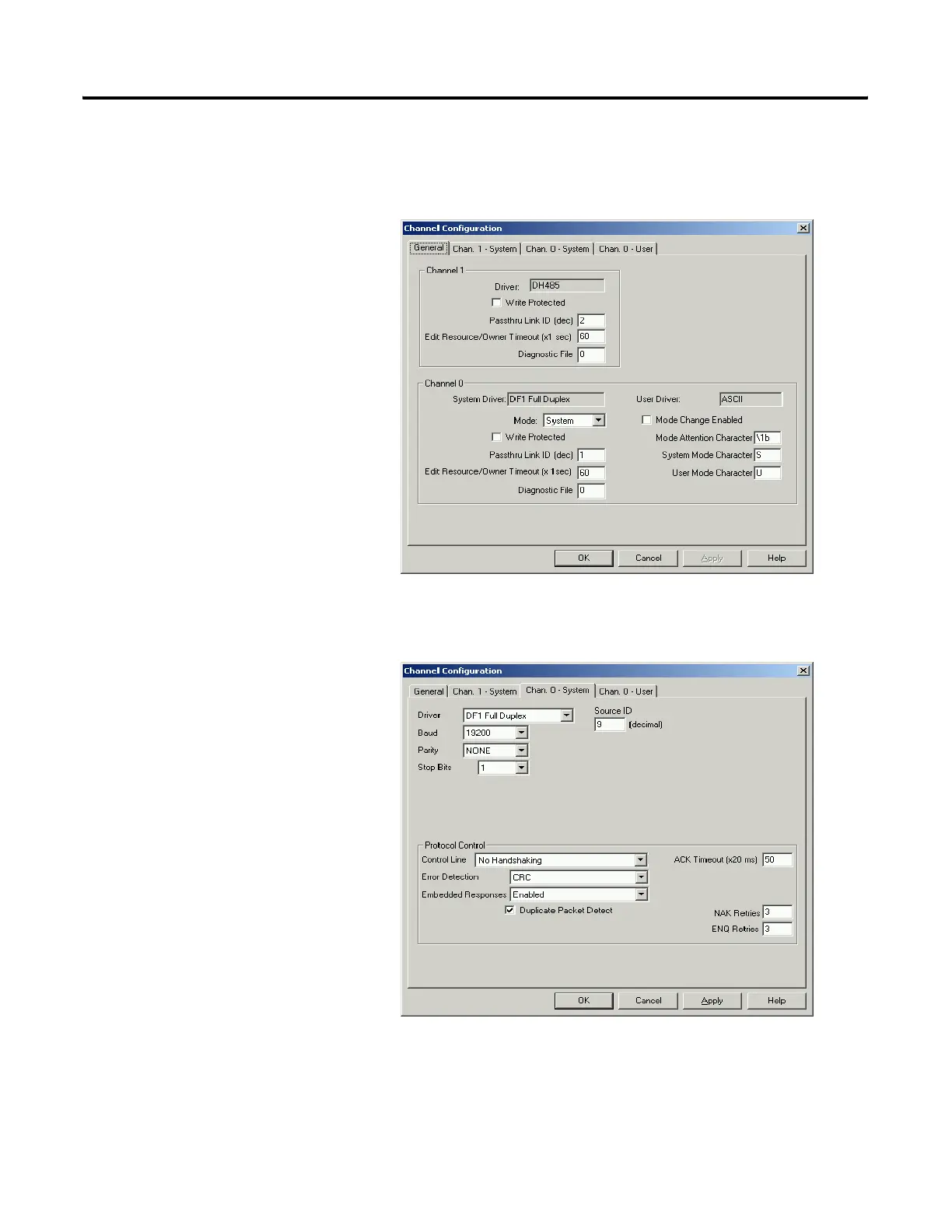

The following is the Channel Configuration MSG Setup for the SLC5/03
processor.
Channel 0 Mode is set for System.
Chan. 0 - System driver is set for DF1 Full Duplex.
For the step by step procedure for this example, refer to Knowledgebase
Document Number: G20023.
