Application Example Programs G-9

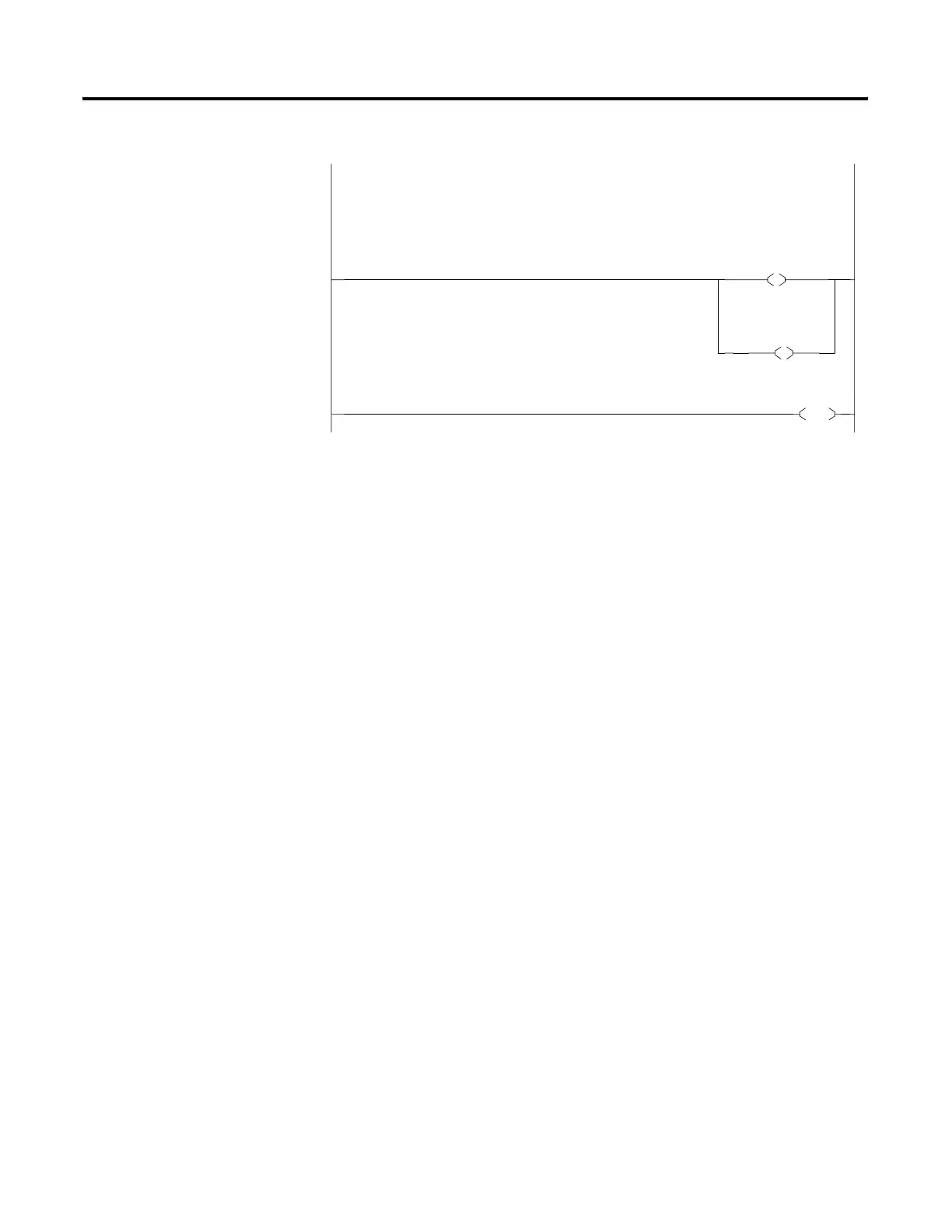

The following rung stops the conveyor and signals the main program (file 2) to initialize a drilling sequence.
The DRILL SEQUENCE subroutine (program file 6) resets the drill sequence start bit and sets the
conveyor
drive bit (O:3/0) upon completion of the drilling sequence.
0006
L
B3:2
0
Drill Sequence
Start
U
O:3
0
1746-OA16
Conveyor
Start/Stop
0007
END
