Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 113

Install Stratix 5410 Switches Chapter 4

Mount the Switch

The switch can be mounted on a wall in only one position: the side panel must

face up, and the port side must face left.

For the best support of the switch and cables, make sure that the switch is

attached securely to wall studs or to a firmly attached plywood backboard.

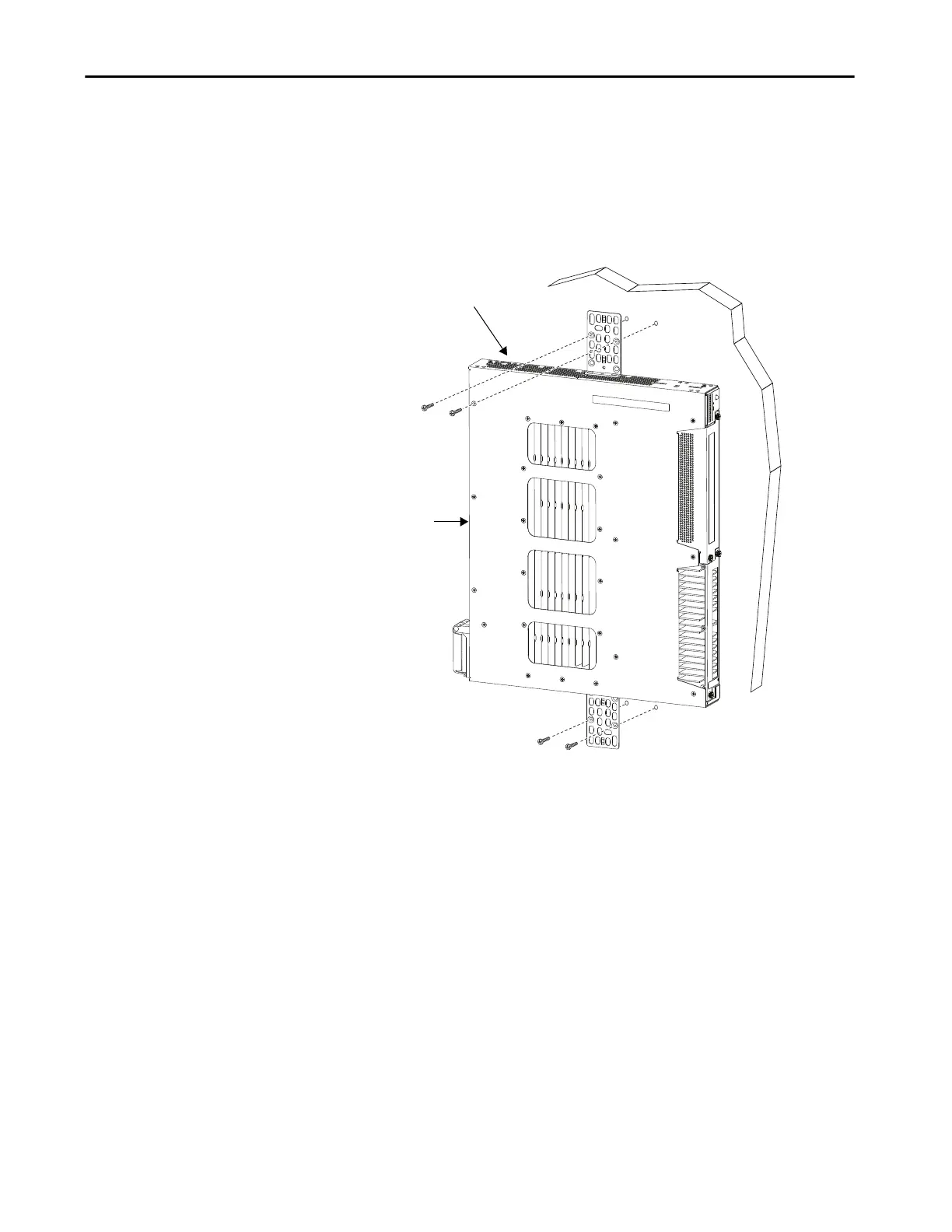

32580-M

The port side must

face left.

The side panel must face up.
