Allen-Bradley Stratix 8000 User Manual

174 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 6 Install Stratix 8000 and 8300 Switches

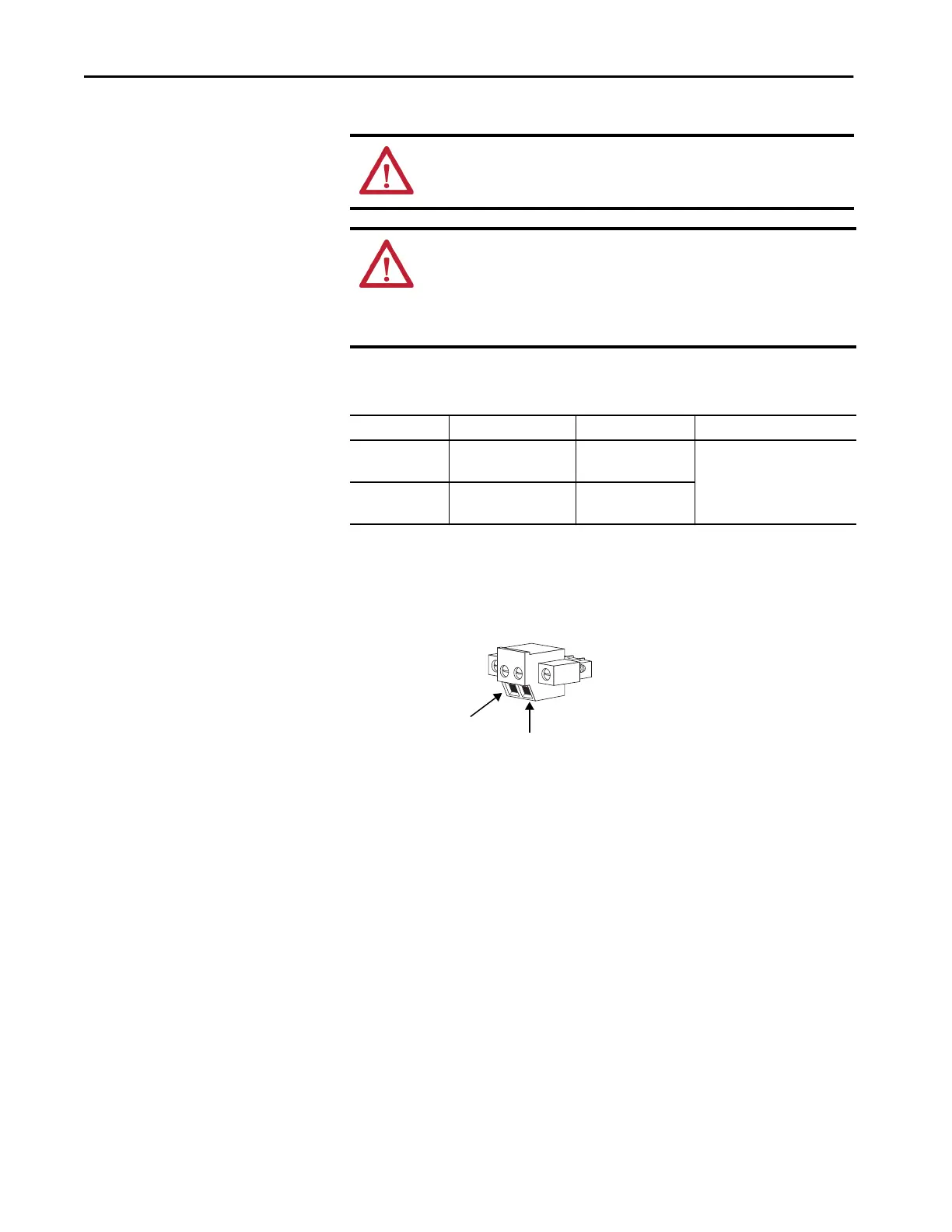

Wire the DC Power Source
for the PoE Expansion
Module
Follow these instructions if you have a PoE expansion module.
Power supply requirements for a PoE expansion module depend on your
application.
Follow these steps to wire DC power to the PoE expansion module.
1. Locate the power connector and identify the positive and return DC
power connections.
2. Measure a length of 0.82…0.52 mm
2
(18…20 AWG) copper wire long
enough to connect to the DC power source.
WARNING: Before performing any of the following procedures, make sure
that power is removed from the DC circuit or the area is nonhazardous before
proceeding.
WARNING: To comply with the CE Low Voltage Directive (LVD), this
equipment must be powered from a source compliant with the safety extra
low voltage (SELV) or protected extra low voltage (PELV).
To comply with UL restrictions, this equipment must be powered from a source
compliant with Class 2 or Limited Voltage/Current.
Application Power Consumption Power Supply per Port Allen-Bradley Products
PoE only
IEEE 802.3af
44…57V DC (48V DC
nom)
15.4 W, max Switched mode power supplies:
• 1606-XL Standard
• 1606-XLE Essential
• 1606-XLP Compact
• 1606-XLS Performance
PoE and PoE +
IEEE 802.3at Type 2
50…57V DC (54V DC
nom)
15.4 W, max for PoE
30 W, max for PoE+
32437-M
DC +
DC -
