Install Stratix 8000 and 8300 Switches Chapter 6

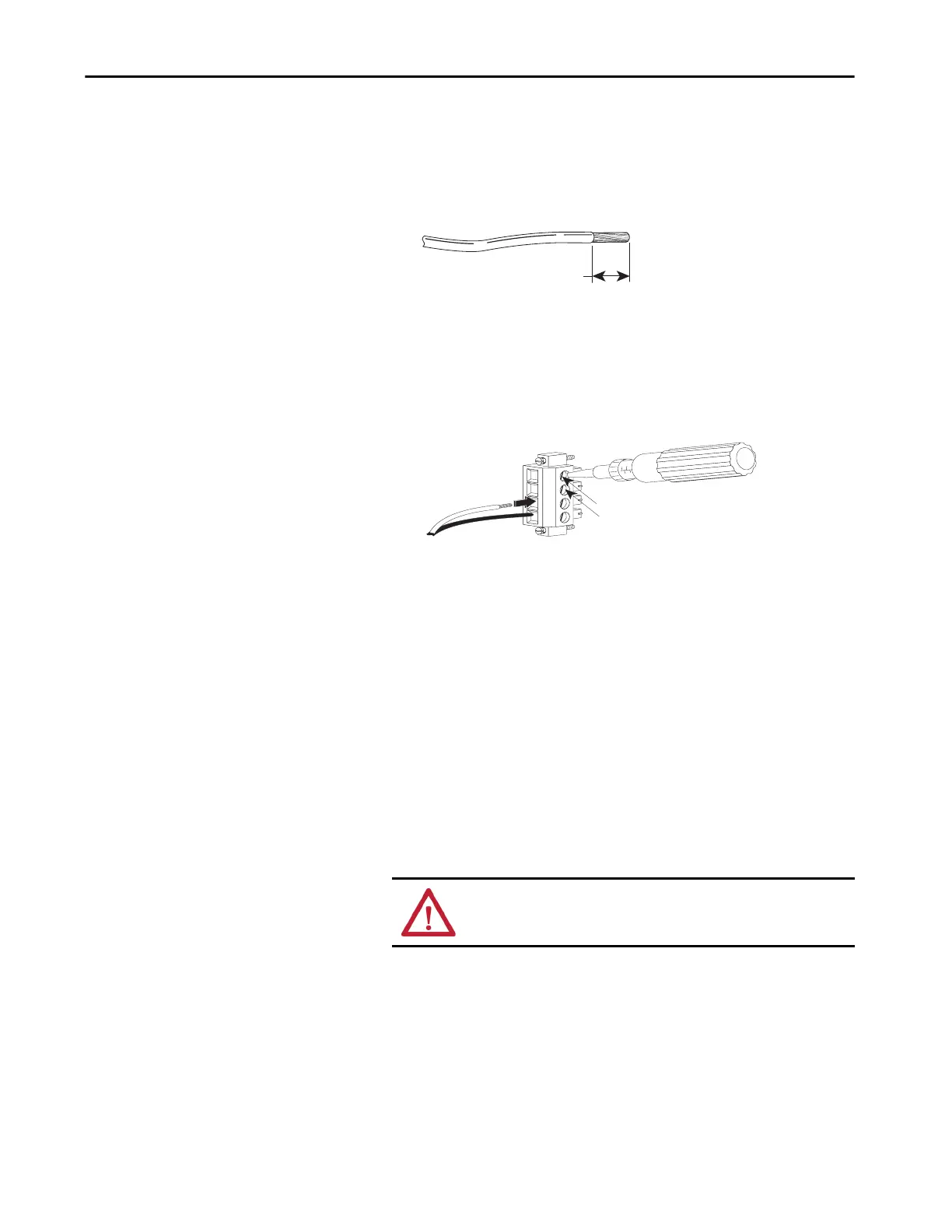

3. Using an 18-gauge wire-stripping tool, strip each of the two wires to
6.3 mm (0.25 in.) ± 0.5 mm (0.02 in.).
Do not strip more than 6.8 mm (0.27 in.) of insulation from the wire.
Stripping more than the recommended amount of wire can leave
exposed wire from the connector after installation.
4. Insert the exposed part of the positive wire into the connection labeled
V and the exposed part of the return wire into the connection labeled
RT.
Make sure that you cannot see any wire lead. Only wire with insulation
can extend from the connector.
5. Use a ratcheting-torque screwdriver to torque the power and relay
connector captive screws above the installed wire leads to 0.23 N•m
(2.0 lb•in).
6. Connect the other end of the positive wire (the one connected to V) to
the positive terminal on the DC power source, and connect the other
end of the return wire (the one connected to RT) to the return terminal
on the DC power source.
You can use a second power source to provide redundant power. The
alarm relays on the switch can be used to warn you if one of the power
supplies fails. The switch operates properly with only one power source
connected at either Pwr A or Pwr B.
7. If you are installing the switch and are using a second power source,
repeat these with a second power and relay connector.
ATTENTION: If multiple power sources are used, do not exceed the
specified isolation voltage.
