396 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017

Chapter 8 Monitor the Switch

NAT Statistics

You can monitor NAT statistics in both Device Manager and the Logix

Designer application.

Monitor NAT Statistics via Device Manager

You can monitor these types of NAT statistics:

• Global statistics for all instances

• Statistics per instance

• Detailed private translations per instance

• Detailed public translations per instance

From the Monitor menu, choose NAT Statistics.

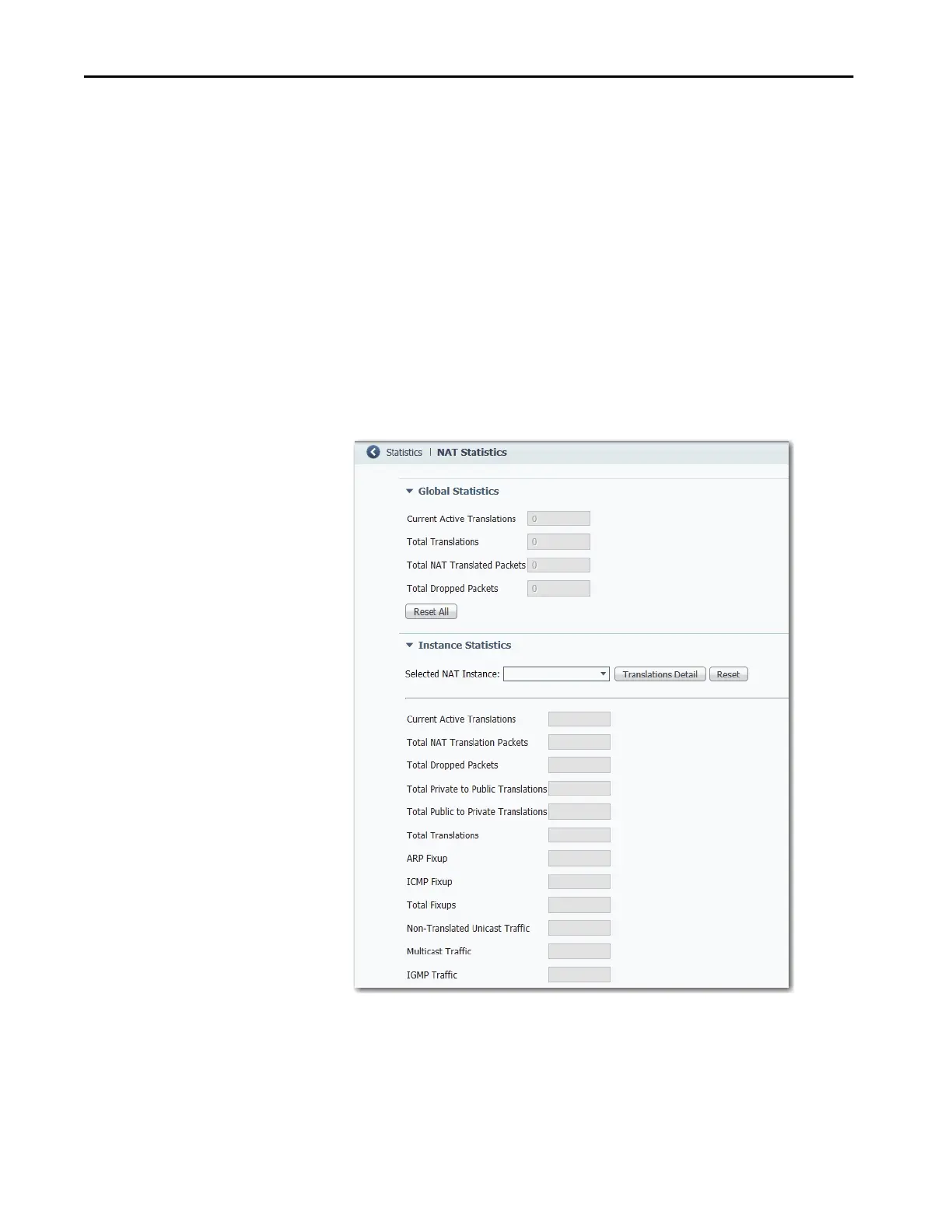

Figure 58 - NAT Statistics for Stratix 5400 and 5700 Switches
