Allen-Bradley Stratix 8000 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 165
Install Stratix 8000 and 8300 Switches Chapter 6

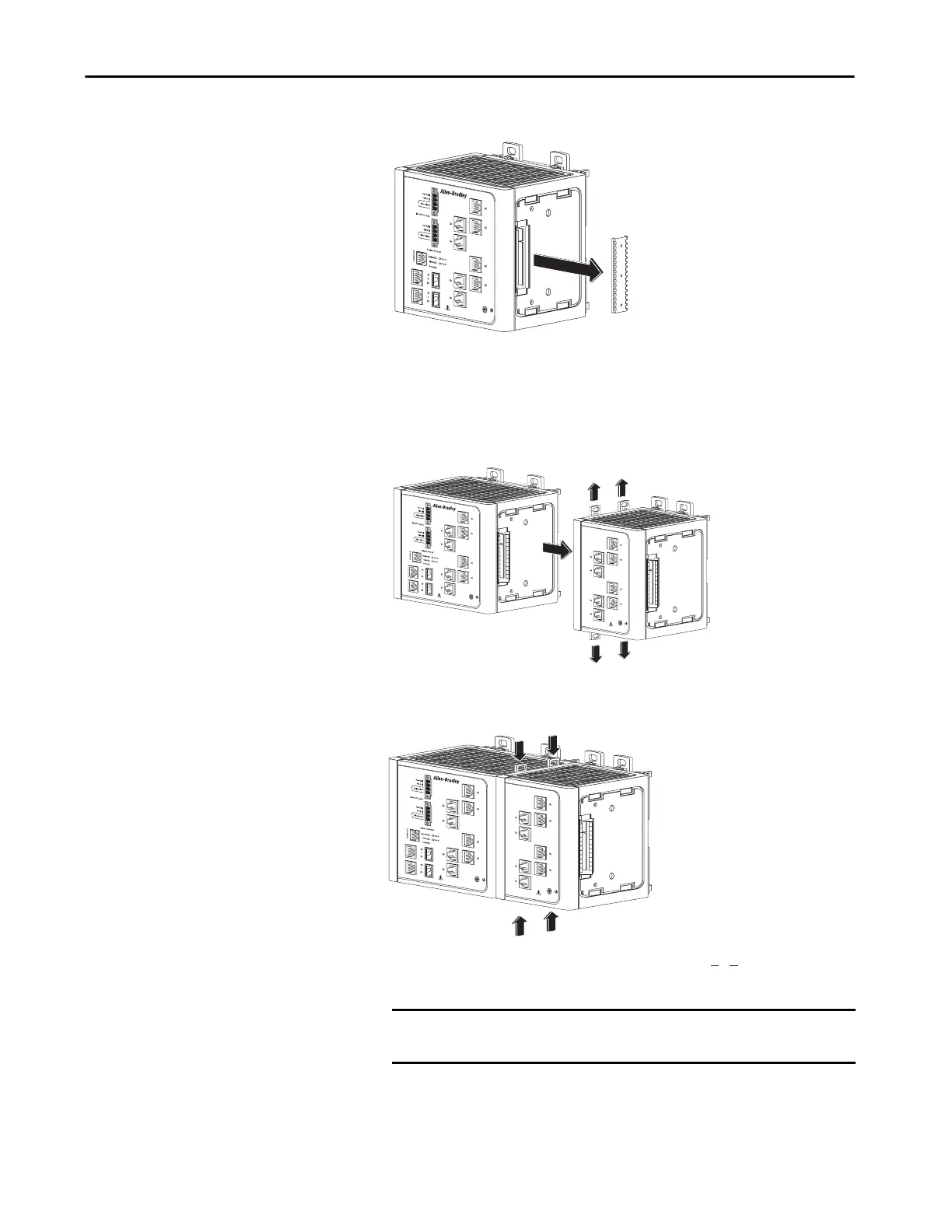

2. Remove the protective EMI-connector cover from the side panel.
3. Push the upper module latches up and the lower module latches down.
Then slide the switch and module together.
The expansion module is shown with the side panel removed. Do not
remove this panel unless you plan to install another module.
4. Push the upper and lower module latches in to secure the module to the
switch.
5. If you are installing a second module, repeat steps
1...4, but secure the
second module to the right side of the first module.
IMPORTANT You cannot install an expansion module to the right of the
1783-MX08F or 1783-MX08S fiber expansion module.
31787-M
31780-M
31781-M
