Allen-Bradley Stratix 8000 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 167
Install Stratix 8000 and 8300 Switches Chapter 6
2. If you are using a heavy-duty 35 mm x 15 mm (1.38 in. x 0.59 in.) DIN
rail, rotate all feet to the extended positions.
Otherwise, if you are using 35 mm x 7.5 mm (1.38 in. x 0.30 in.) DIN
rail, rotate the feet to the recessed positions.

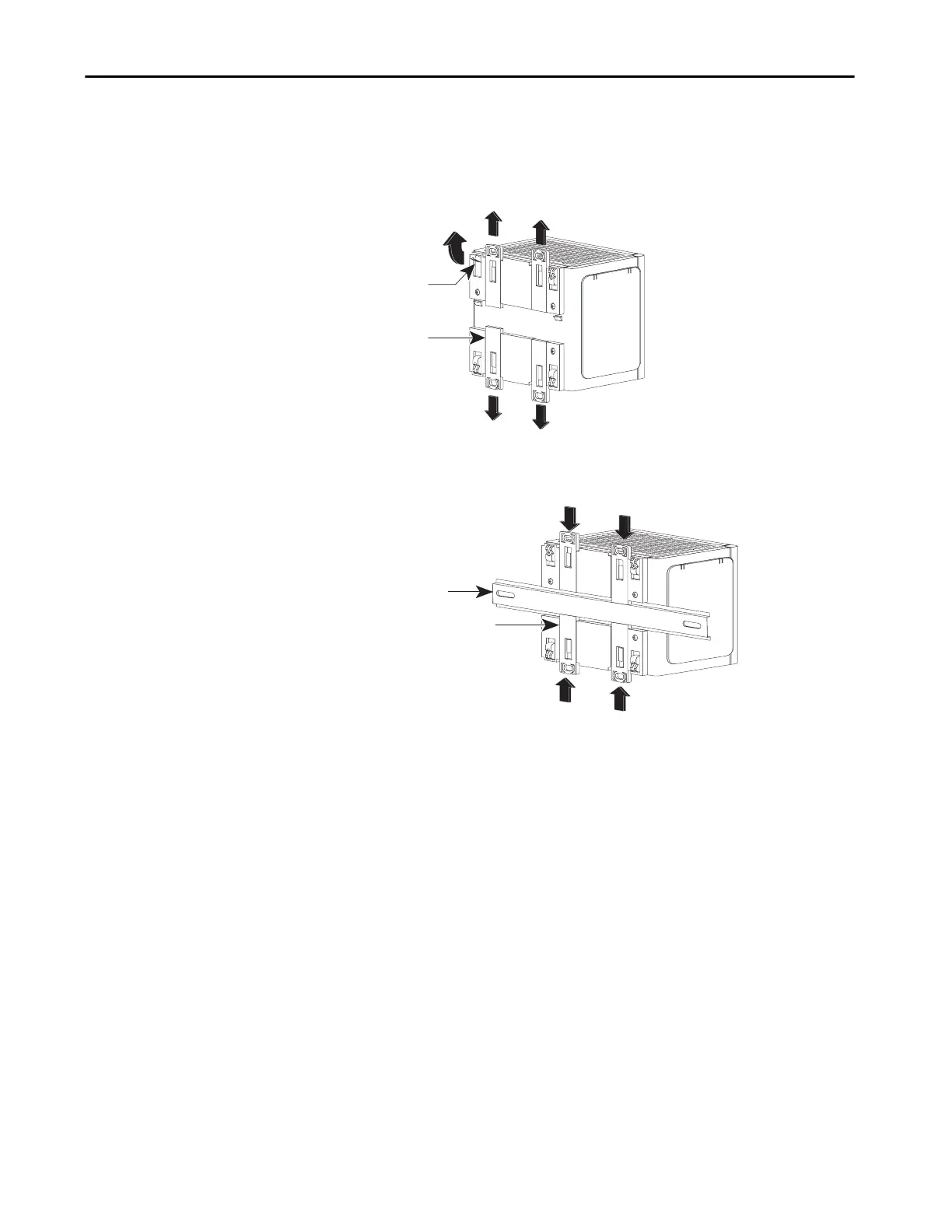

3. Position the rear panel of the switch directly in front of the DIN rail,
making sure that the DIN rail fits in the space between the two latches.
4. Push the DIN rail latches in after the switch is over the DIN rail to
secure the switch to the rail.
31777-M
Latch
Foot
31778-M
Latch
DIN Rail
