Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 267

Configure Switch Features Chapter 7

Create NAT Instances for Traffic Routed through a Layer 2 Switch

To create a NAT instance for traffic that is routed through a Layer 2 switch,

follow these steps.

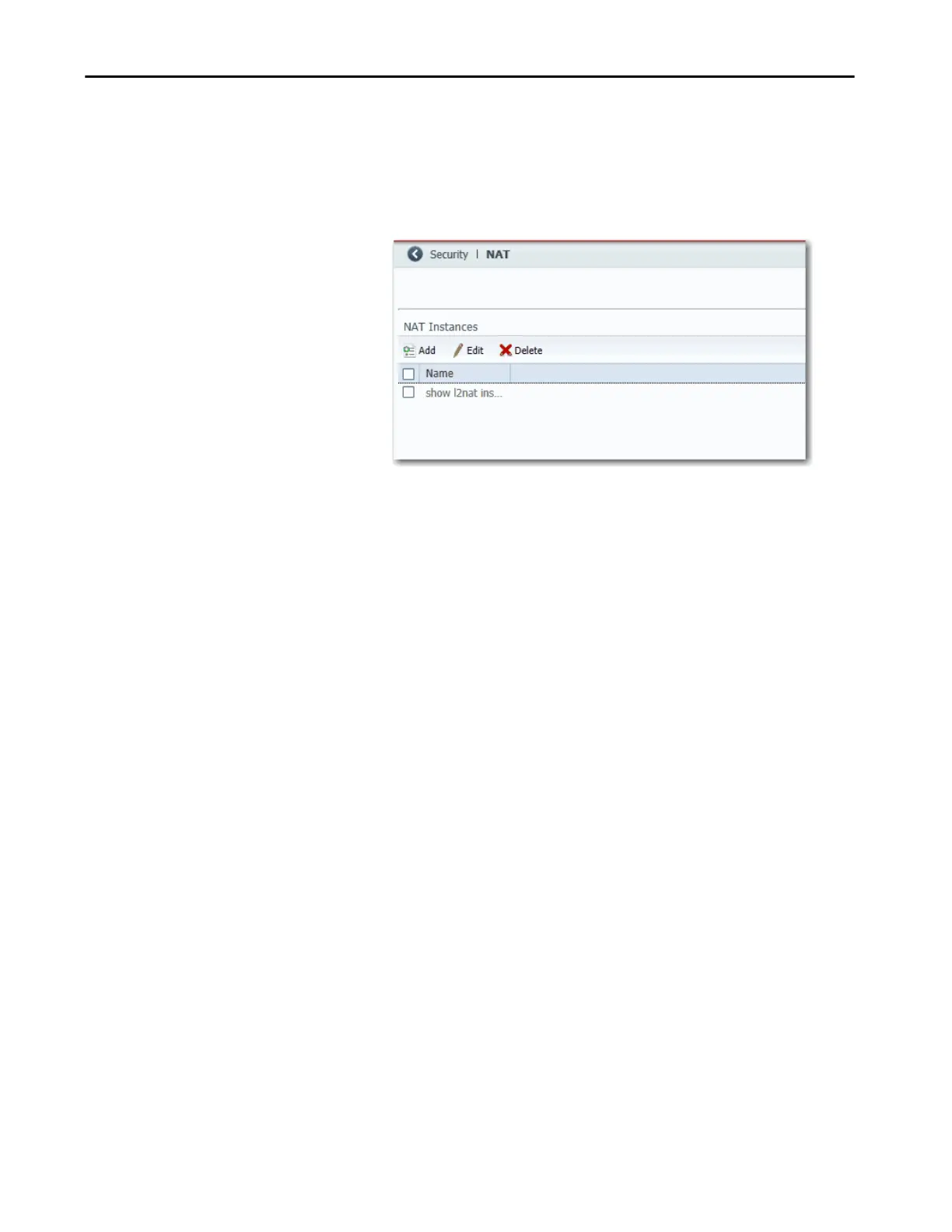

1. From the Configure menu, choose NAT to display the NAT window.

2. Click Add to display the General tab of the Add/Edit NAT Instance

window.
