Monitor the Switch Chapter 8
\

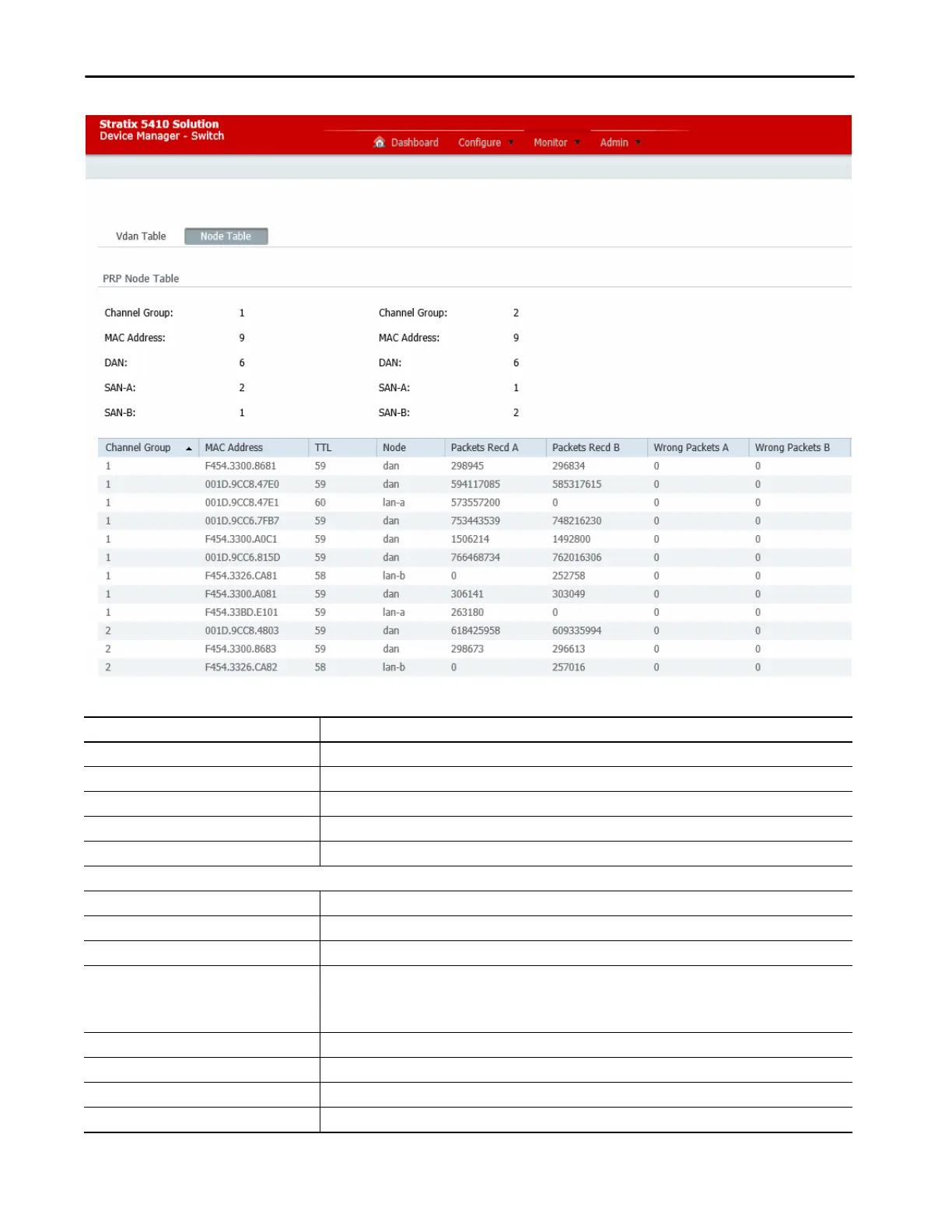

Table 116 - Node Table Fields
Field Description
Channel Group 1, 2 The number of the PRP channel group.
MAC Address The number of MAC addresses (static and dynamic) for the channel group.
DAN The number of dual attached node (DAN) MAC addresses for the channel group.
SAN-A The number of single attached nodes (SANs) on LAN A.
SAN-B The number of single attached nodes (SANs) on LAN B.
Grid Fields
Channel Group The channel group of the associated entry.
MAC Address The MAC address of the DAN or SAN.
TTL The amount of time before the learned MAC address expires.
Node The type of PRP node:
• DAN—Dual attached node
• SAN-A—Single attached node on LAN A
• SAN-B—Single attached node on LAN B
Packets Recd A The number of packets received on LAN A.
Packets Recd B The number of packets received on LAN B.
Wrong Packets A The number of packets received on LAN A having the wrong LAN A destination.
Wrong Packets B The number of packets received on LAN B having the wrong LAN B destination.
