54 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017

Chapter 2 Get Started

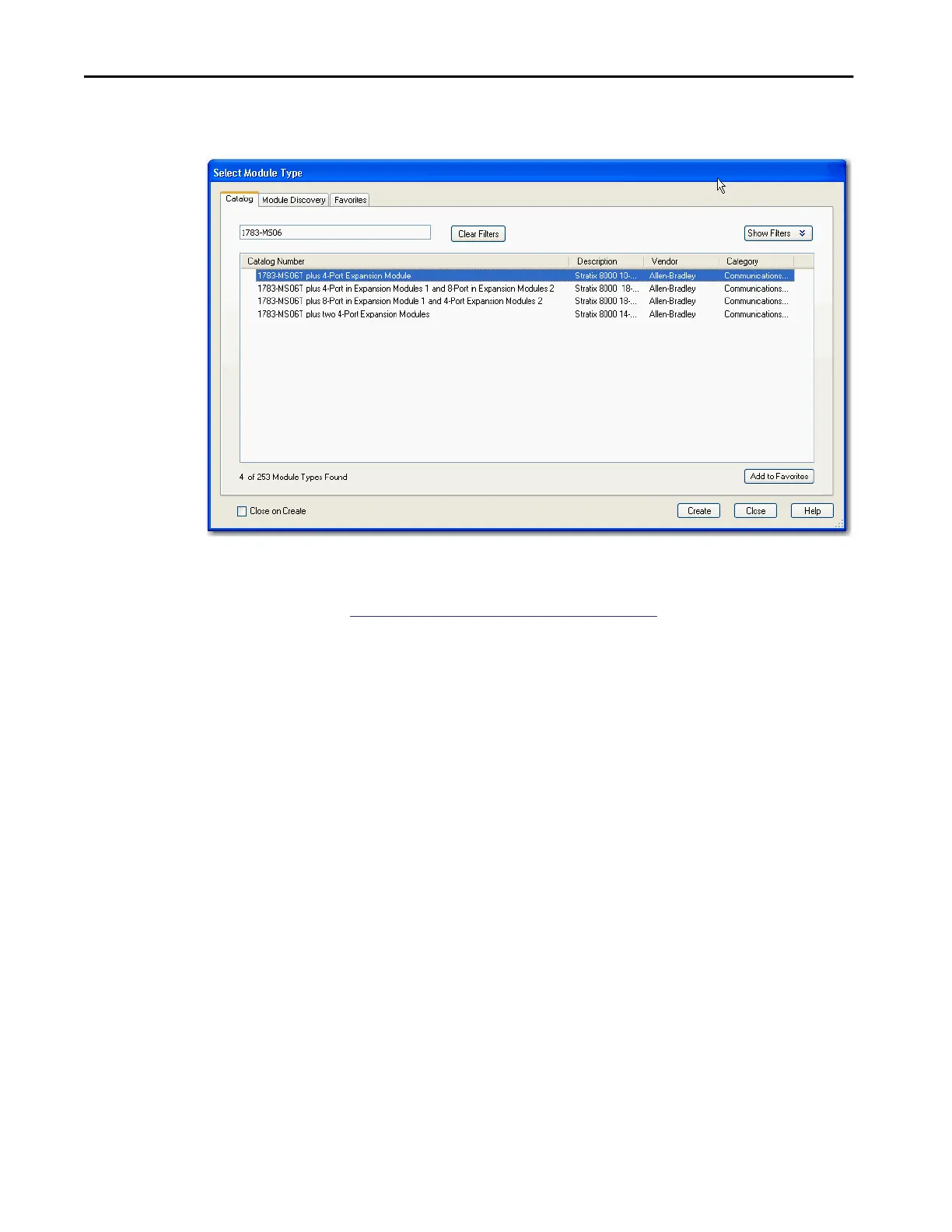

3. On the Select Module Type dialog box, select the switch and click

Create.

If you do not see the switch on the list, you can obtain the AOP from the

Rockwell Automation support website:

http://www.rockwellautomation.com/support/
