Rockwell Automation Publication 1783-UM003G-EN-P - December 2012 117
Manage the Switch via RSLogix 5000 Software Chapter 4

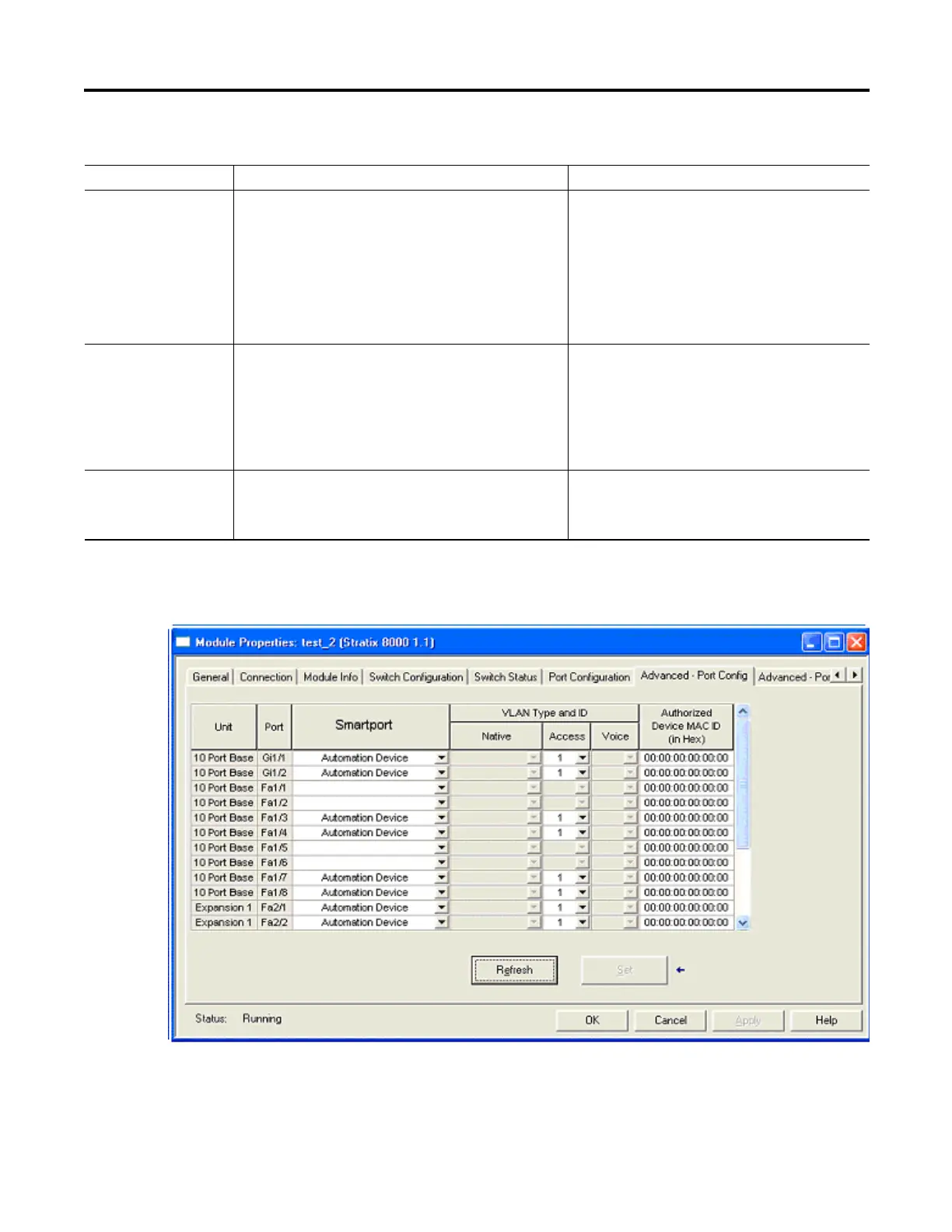

Advanced Port Properties
Use this tab to configure the Smartport roles VLAN and authorized MAC ID.
You must be online to configure these port features. Most of the information on
this tab is not displayed if you are offline.
Auto-negotiate Check if you want the port and end-device to auto-negotiate the
link speed and Duplex mode.
Clear the checkbox to manually select the desired port speed
and Duplex mode.
We recommend that you use the default (auto-negotiate)
so that the speed and duplex settings on the switch port
automatically match the setting on the connected device.
Change the switch port speed and duplex if the
connected device requires a specific speed and duplex. If
you set the speed and duplex for the switch port, the
connected device must also be configured for the exact
same speed and duplex, and not set to auto-negotiate,
otherwise a speed/duplex mismatch will occur.
Fiber optic interfaces do not support auto-negotiation.
Speed Gigabit (Gi):
• 10 Mbps
• 100 Mbps
• 1 Gbps
Fast Ethernet (Fa)
• 10 Mbps
• 100 Mbps
Choose the operating speed of the port.
Duplex • Half-duplex – Both devices cannot send data at the same
time.
Half-duplex is not available when speed is set to 1 Gbps.
• Full-duplex – Both devices can send data at the same time.
Choose the Duplex mode of the port.
Port Configuration
In this field Values are Comments
