124 Rockwell Automation Publication 1783-UM003G-EN-P - December 2012
Chapter 4 Manage the Switch via RSLogix 5000 Software

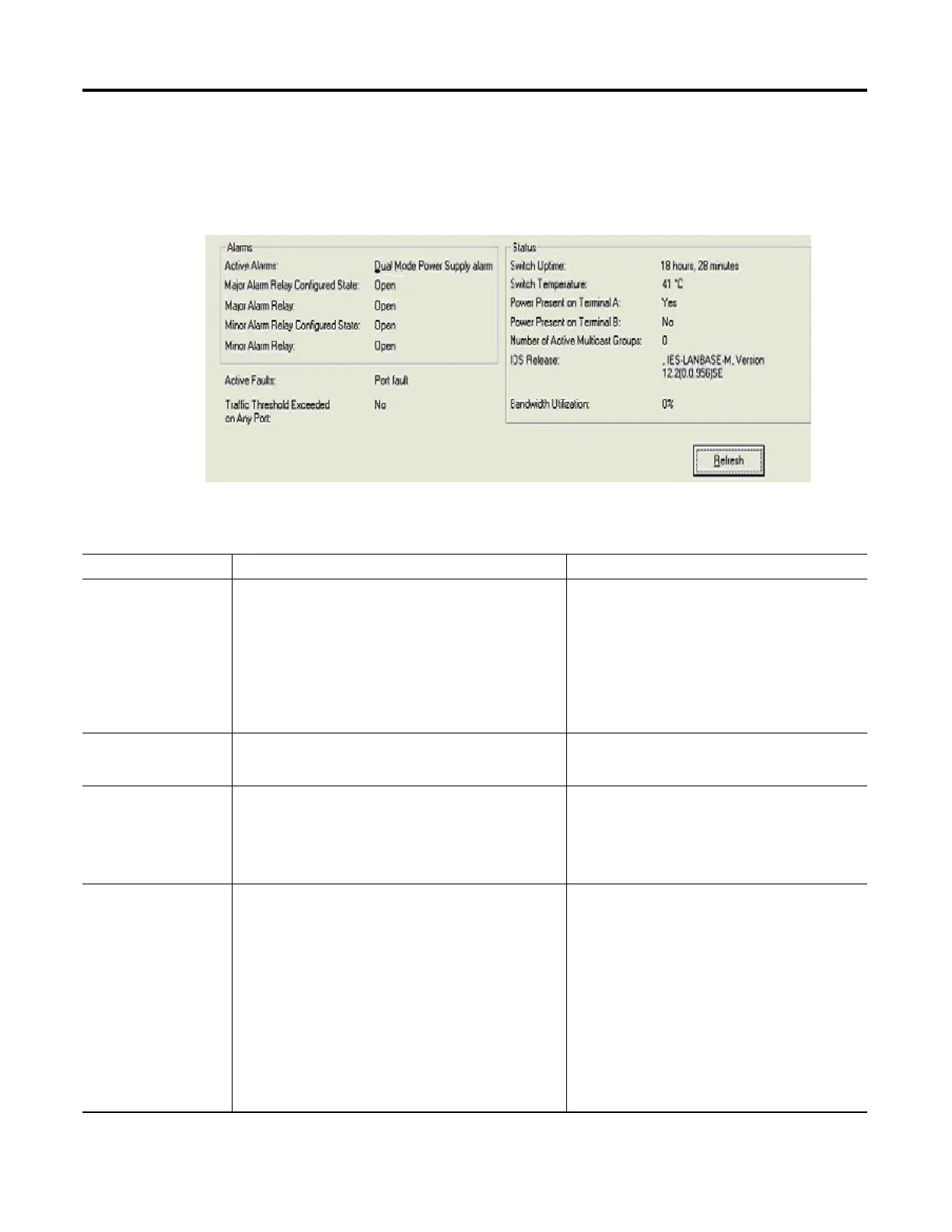

Switch Status
Through RSLogix 5000 software, you can monitor switch status. Use this tab to
monitor the switch and port conditions to quickly see if a fault or error condition
exists. This tab also shows the overall health of the switch (temperature and
power).
Switch Status
In this field Values are Comments
Alarms • Active Alarms
– None
– Port alarm
– Dual Mode Power Supply alarm
– Primary Temperature alarm
• Major Alarm Relay Configured State
• Major Alarm Relay
• Minor Alarm Relay Configured State
• Minor Alarm Relay
Displays the active switch and port alarms.
Displays whether the major alarm relay is configured.
Displays whether the major alarm relay is on or off.
Displays whether the minor alarm relay is configured.
Displays whether the minor alarm relay is on or off.
Active Faults • None
• Port fault
• Hardware fault
Displays the active switch and port faults. If the port and
hardware faults are active, the Hardware fault will be
displayed.
Traffic Threshold Exceeded
on Any Port
• Yes
• No
Displays a yes or no value indicating whether the current
unicast, multicast, and broadcast thresholds have been
exceeded on any port.
To view the status of the active ports, click the Port
Status tab. To view the threshold values, click the
Advanced - Port Threshold tab.
Status
• Switch Uptime
• Switch Temperature
• Power Present on Terminal A
• Power Present on Terminal B
• Number of Active Multicast Groups
• IOS Release
• Bandwidth Utilization
These features display the status of the switch.
Displays the days, hours, and minutes that the switch has
been functioning since the last reboot.
Displays the current internal temperature (in degree
Celsius) of the switch.
Displays a yes or no value indicating whether power is
present on Terminal A.
Displays a yes or no value indicating whether power is
present on Terminal B.
Displays the number of active multicast groups.
Displays the current version of the switch operating
system.
Displays the total percentage of the switch bandwidth
being used.
