Allen-Bradley Stratix 8300 - Appendix C Connect to 10 BASE-T- and 100 BASE-TX-Compatible Devices

158 Rockwell Automation Publication 1783-UM003G-EN-P - December 2012
Appendix C Cables and Connectors
Connect to 10BASE-T- and 100BASE-TX-Compatible Devices
When connecting the ports to 10BASE-T- and 100BASE-TX-compatible
devices, such as servers, workstations, and routers, you can use a two or four
twisted-pair, straight-through cable wired for 10BASE-T and 100BASE-TX.
To identify a crossover cable, compare the two modular ends of the cable. Hold
the cable ends side-by-side, with the tab at the back. The wire connected to the
pin on the outside of the left plug should be a different color from the wire
connected to the pin on the inside of the right plug.
The following figures show these schematics:
• Two twisted-pair, straight-through cable
• Four twisted-pair, straight-through cable

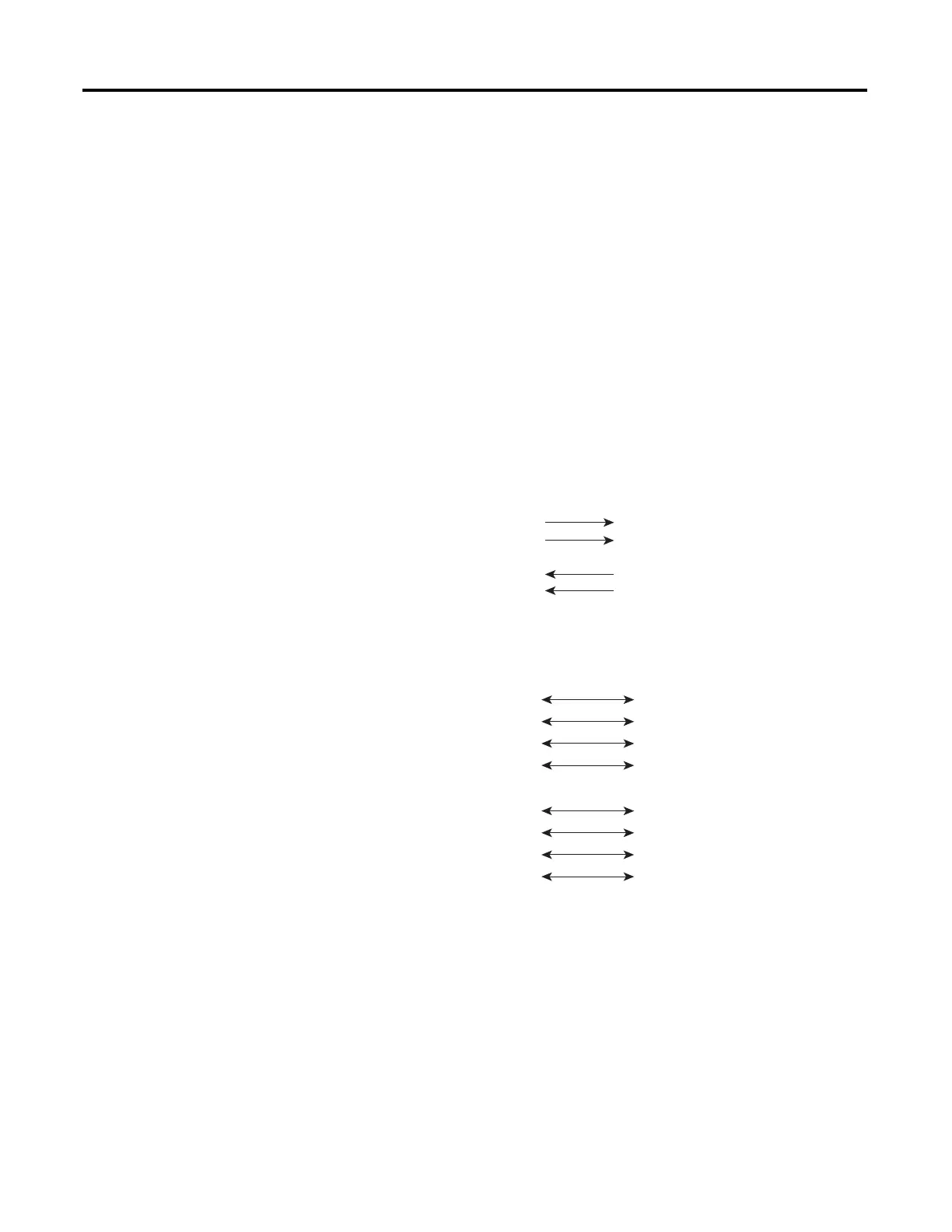

Figure 9 - Two Twisted-pair Straight-through Cable Schematic
Figure 10 - Four Twisted-pair Straight-through Cable Schematic
When connecting the ports to 10BASE-T- and 100BASE-TX-compatible
devices, such as switches or repeaters, you can use a two or four twisted-pair,
crossover cable.
The following figures show these schematics:
• Two twisted-pair, crossover cable schematics
• Four twisted-pair, crossover cable schematics
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or Personal Computer
3 RD+
6 RD–
1 TD+
2 TD–
H5578
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP1+
Switch Router or Personal Computer
2 TP1-
3 TPO+
6 TPO-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP3+
5 TP3-
7 TP2+
8 TP2-
65272
