Chapter 13: Virtual LANs

168

Modify a Tagged

VLAN

To modify the name or port assignments of a tagged VLAN, perform the

following procedure:

1. From the main menu on the left side of the page, select Bridge.

The Bridge folder expands.

2. From the Bridge folder, select VLAN.

The VLAN folder expands.

3. From the VLAN folder, select Tagged VLAN.

An example of a tagged VLAN is shown in the table at the bottom of

Figure 58.

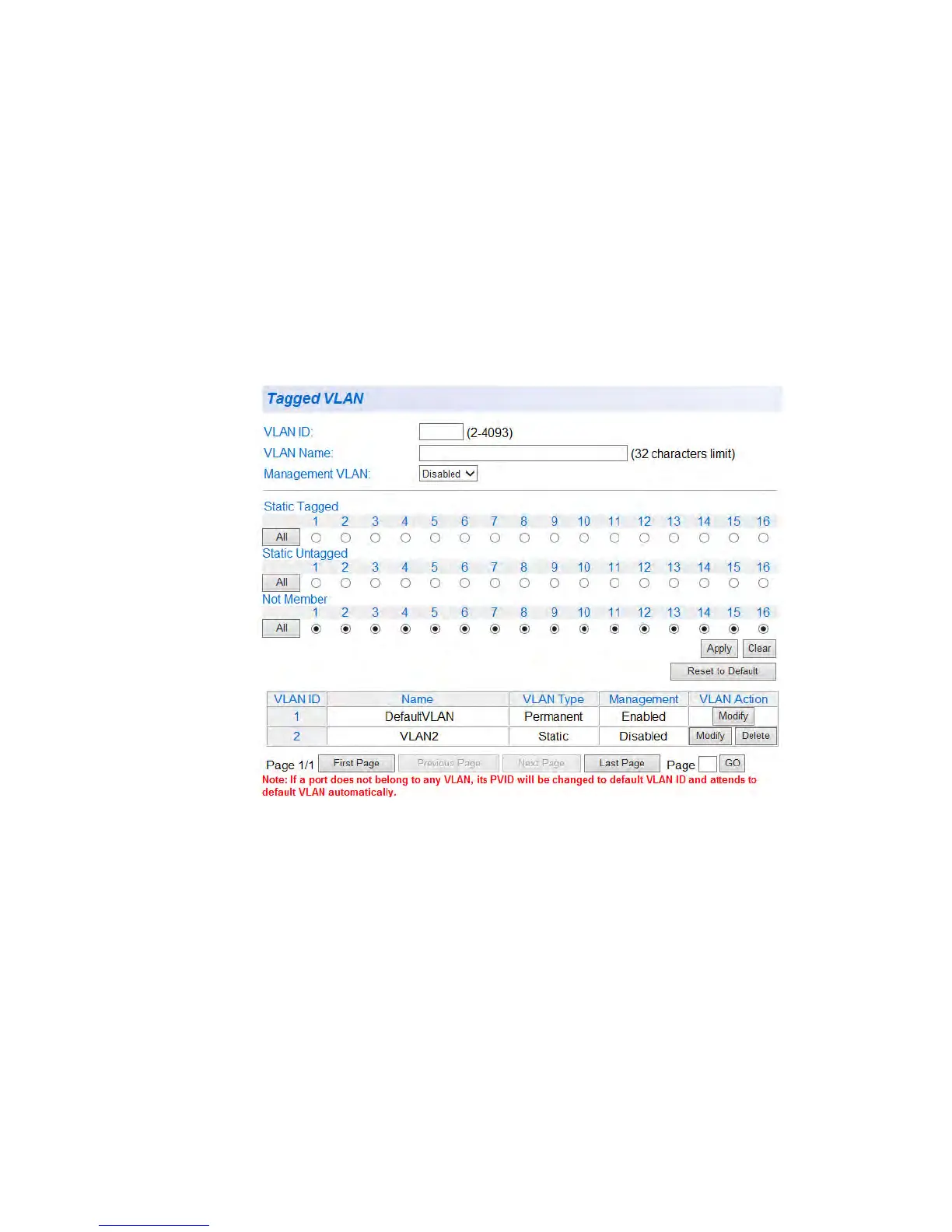

Figure 58. Example of AT-GS950/16 Tagged VLAN Page

4. In the VLAN Action column, click Modify in the row of the VLAN that

you want to change.

The Modify VLAN Page is displayed. See Figure 59 on page 169.
