AT-GS950/16 Web Interface User Guide
321
Traffic Comparison Statistics
The Traffic Comparison chart allows you to display a specified traffic
statistic over all of the ports. You can select 24 statistic types and 12 colors
for each port.
To display traffic comparison statistics, perform the following procedure:
1. Select the Statistics Chart folder.
The Statistics Chart folder expands.
2. From the Statistics Chart folder, select Traffic Comparison.
The Traffic Comparison Chart page opens as shown in Figure 129.

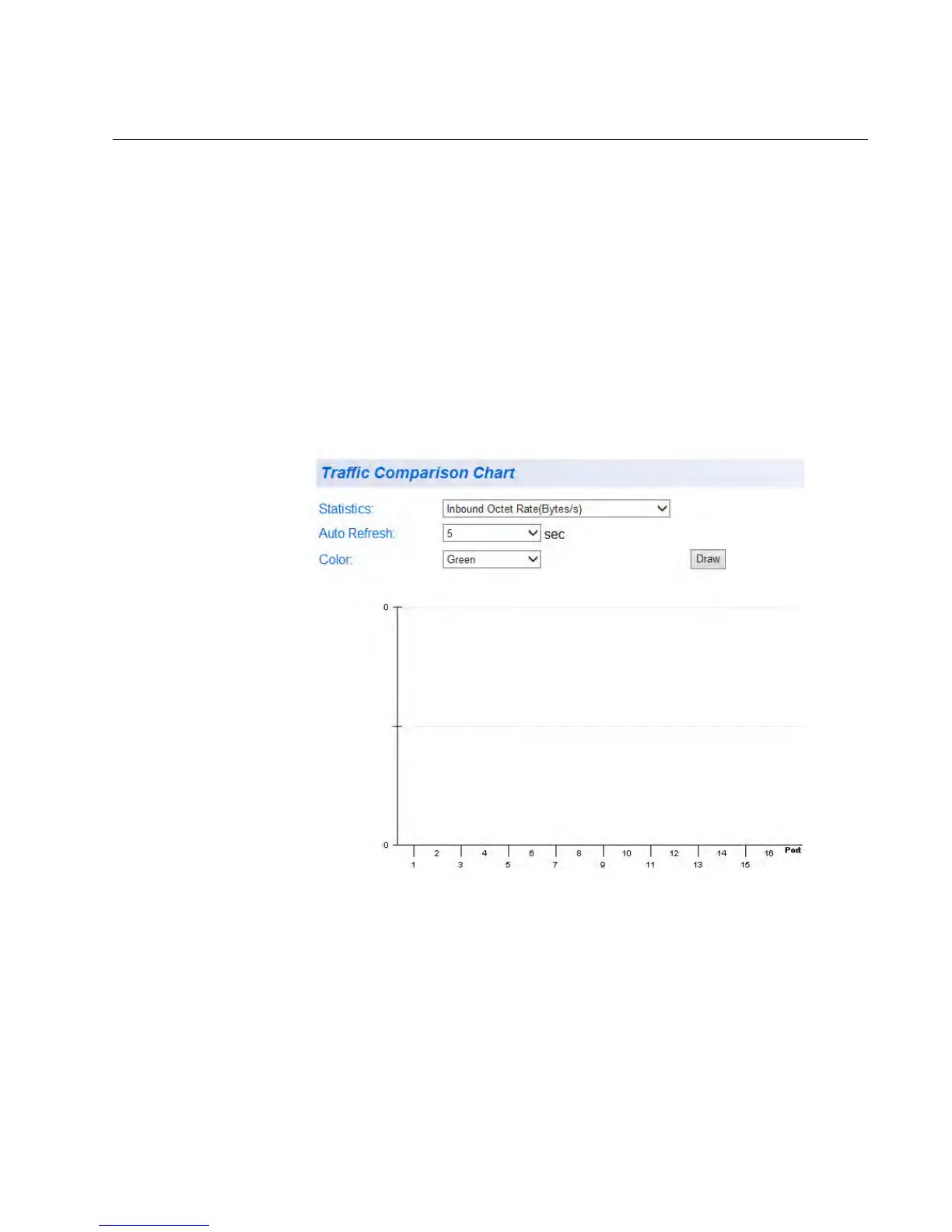

Figure 129. Traffic Comparison Chart Page
3. To view traffic statistics, click on the arrow next to “Statistics” and
select one of the options in Table 5.
