345
Chapter 26
Cable Diagnostics
This chapter provides procedures to run cable diagnostics on the cables
connected to the switch ports. If a port is selected, a cable must be
connected to it for meaningful test results to be displayed.
To permanently save your new settings or any changes to the
configuration file, select Save Settings to Flash from the main
menu on the left side of the page.
To run these cable diagnostics, perform the following procedure:
1. From the main menu on the left side of the page, click the Tools folder.
The Tools folder expands.
2. From the Tools folder, select Cable Diagnostics.
The Cable Diagnostics page is displayed. See Figure 142.

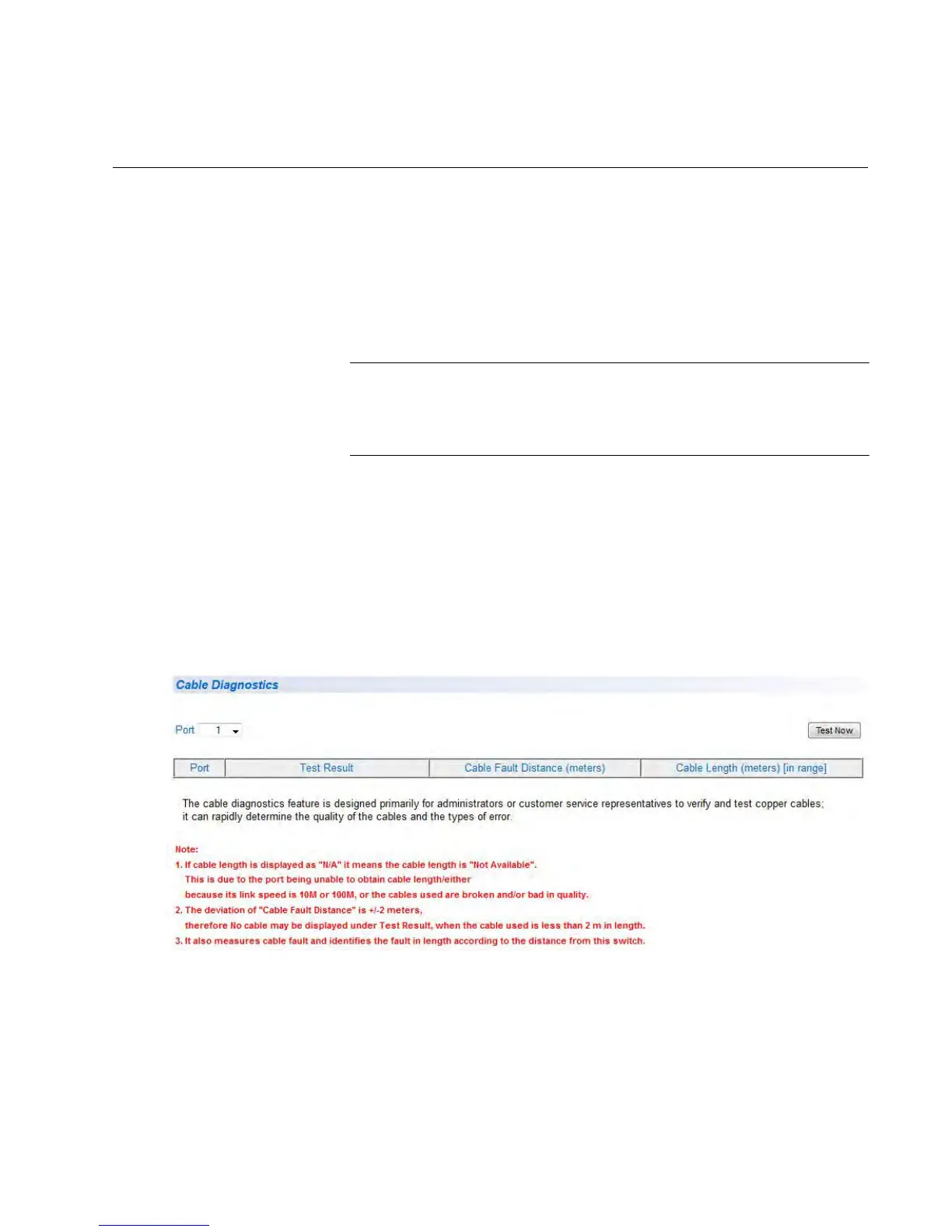

Figure 142. Cable Diagnostics Page
3. Select the Port number from the pull-down menu.
4. Click Test Now.
5. The following information is displayed:
