Associate DSCP Classes to Egress Queues
If you choose to use the DSCP tags in your Access Control policy
configuration, each DSCP value (0-63) that is relevant to
your configuration must be mapped to one of the four egress queues (Low
- Highest). The default queue for all DSCP values is Low.To assign the
queue mappings to the DSCP values, perform the following procedure.
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select QoS.
The QoS folder expands.
3. From the QoS folder, select DSCP.

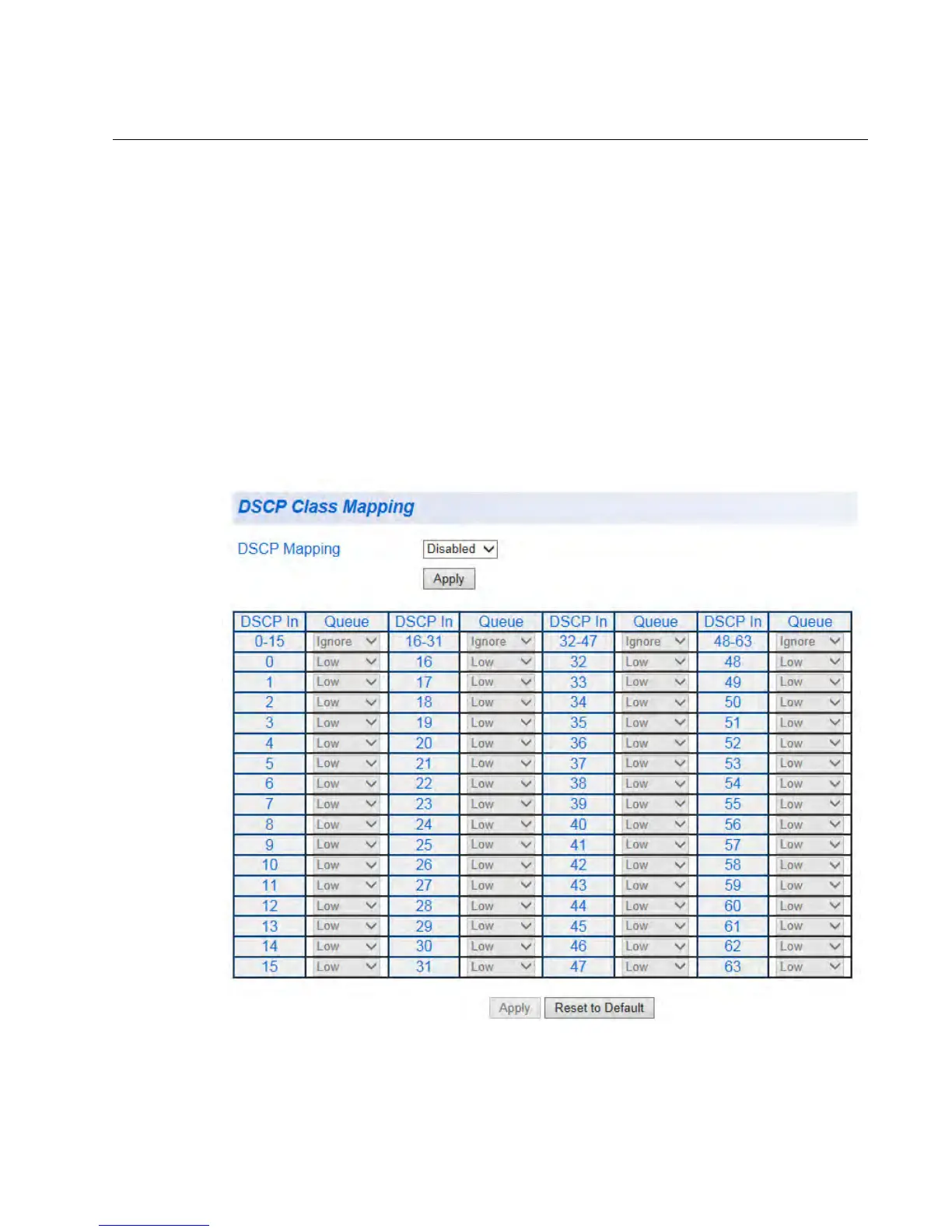

The DSCP Class Mapping Page page is shown in Figure 73.
Figure 73. DSCP Class Mapping Page
4. Select Enabled from the DSCP Mapping drop-down menu.
