Chapter 13: Virtual LANs
174
5. Assign a name to a VLAN by entering a name in the VLAN Name field.
You can enter a value of up to 32 characters. For more information
about this field, refer to “VLAN Name” on page 159.
6. To assign individual ports to the VLAN, click on the port numbers
under VLAN Member. To assign all ports to the VLAN, click All under
VLAN Member.
7. Click Apply.
8. From the main menu on the left side of the page, select Save Settings
to Flash to permanently save your changes.
Modify a Port-
Based VLAN
To modify the name or port assignments of a port-based VLAN, perform
the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Port-Based VLAN.
An example VLAN is shown in the table at the bottom of the Port-
Based VLAN Page. See Figure 62.

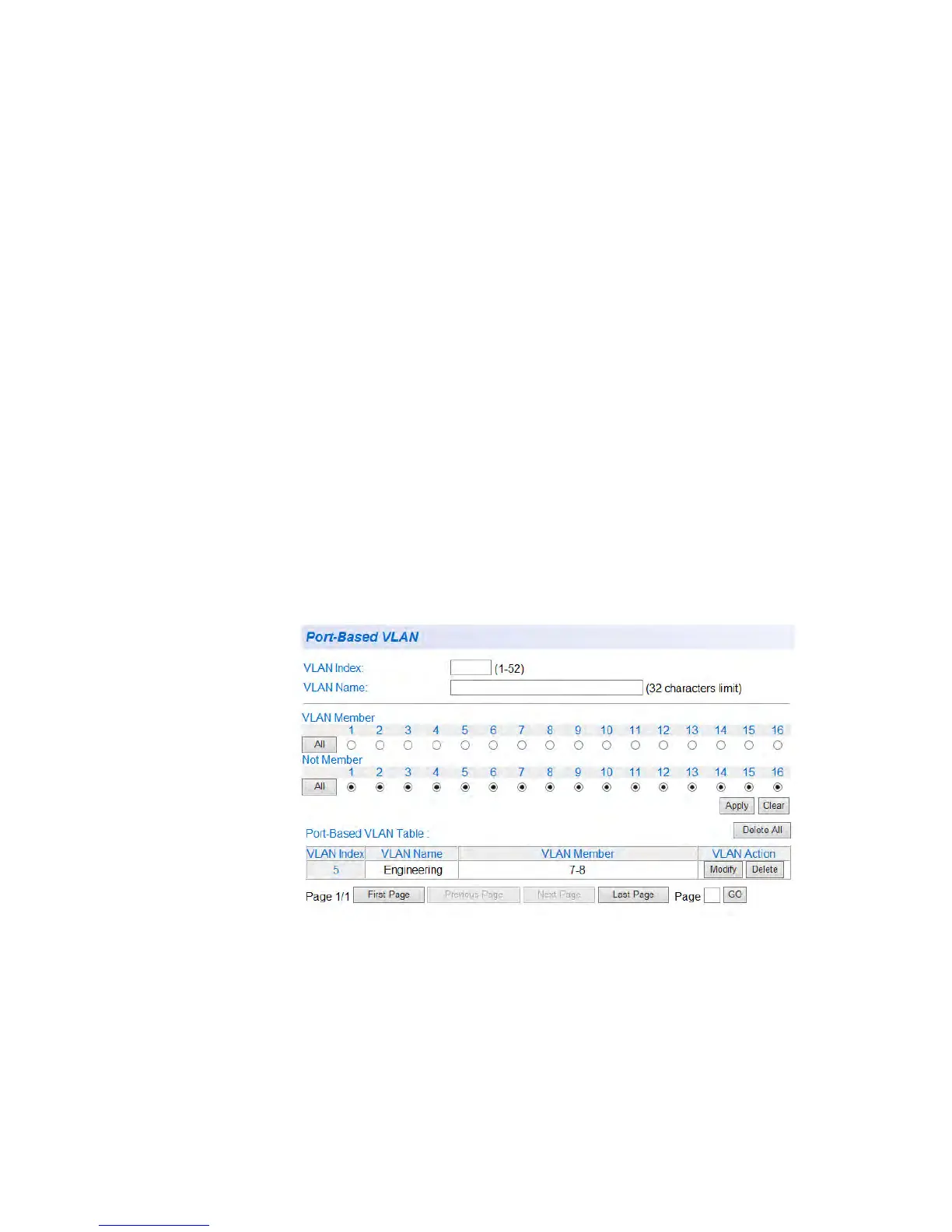

Figure 62. Example of AT-GS950/16 Port Based VLAN Page
4. In the VLAN Action column, click Modify next to the VLAN that you
want to change. The Modify Port-Based VLAN page appears. See
Figure 63 on page 175.
