Allied Telesis AT-GS950/16 User Manual

AT-GS950/16 Web Interface User Guide
255
Display Specific
Policy
Information
To display information for a specific policy, perform the following
procedure:
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
2. From the Access Control Config folder, select Policy Database.
The Policy Database page is displayed in Figure 99 on page 254.
3. Select the switch port from the Select Port pull-down menu that you
want to view.
4. Click the Detail button under the Policy Info column for details of the
policy you want to view. The Policy Detail page appears. See Figure
100.

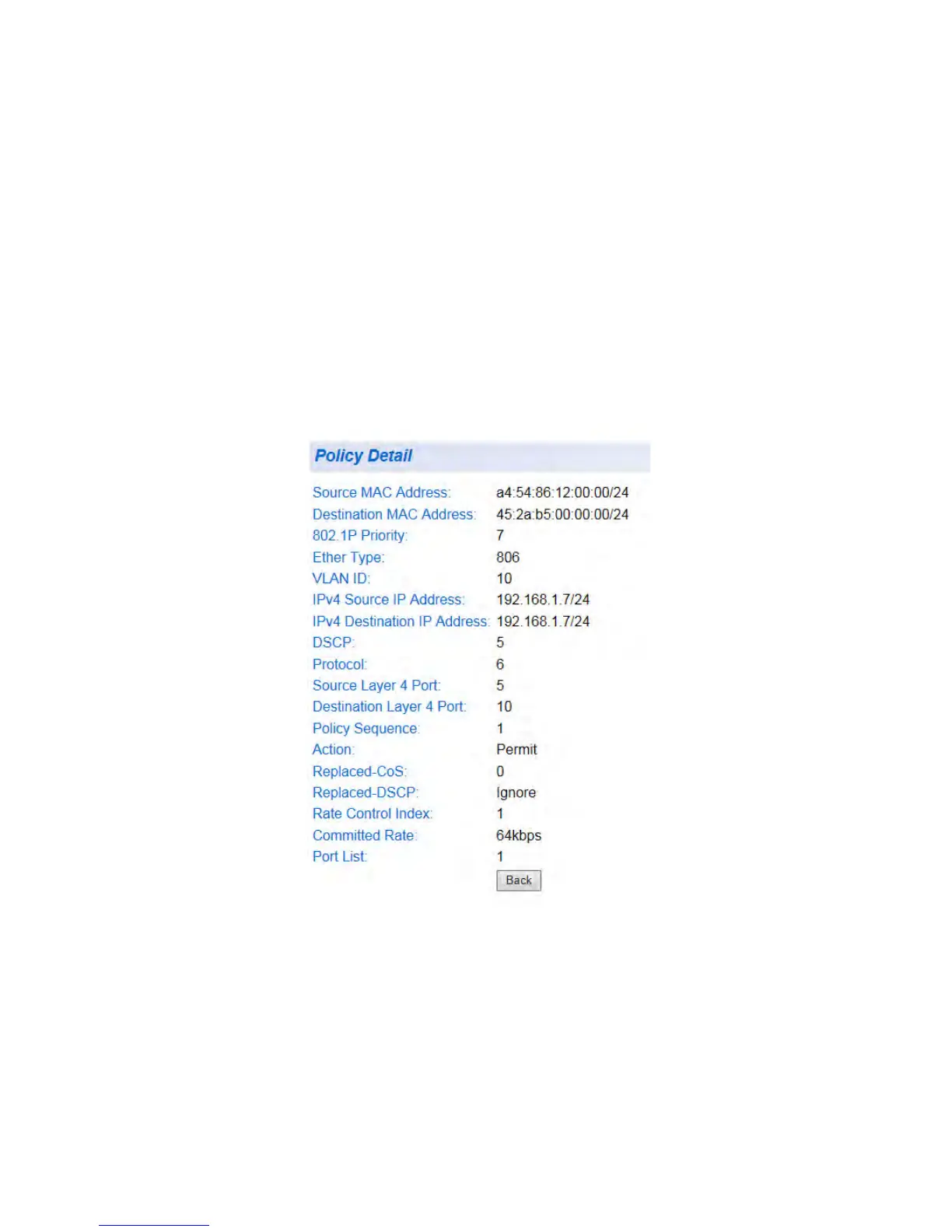

Figure 100. Policy Detail Page
For a description of the displayed settings, refer to “Create a Policy” on
page 243.
5. To return to the Policy Database page, click the Back button.

Allied Telesis AT-GS950/16 Specifications

General

Brand	Allied Telesis
Model	AT-GS950/16
Category	Network Router
Language	English
