ALMAC BiBi 850-BL - 4.5.2 Emergency Stop

BIBI 850-BL Use and maintenance manual Rev.00
70
Sym
bol
I
dentification
Funct
ion
1
3P Ke
y switch

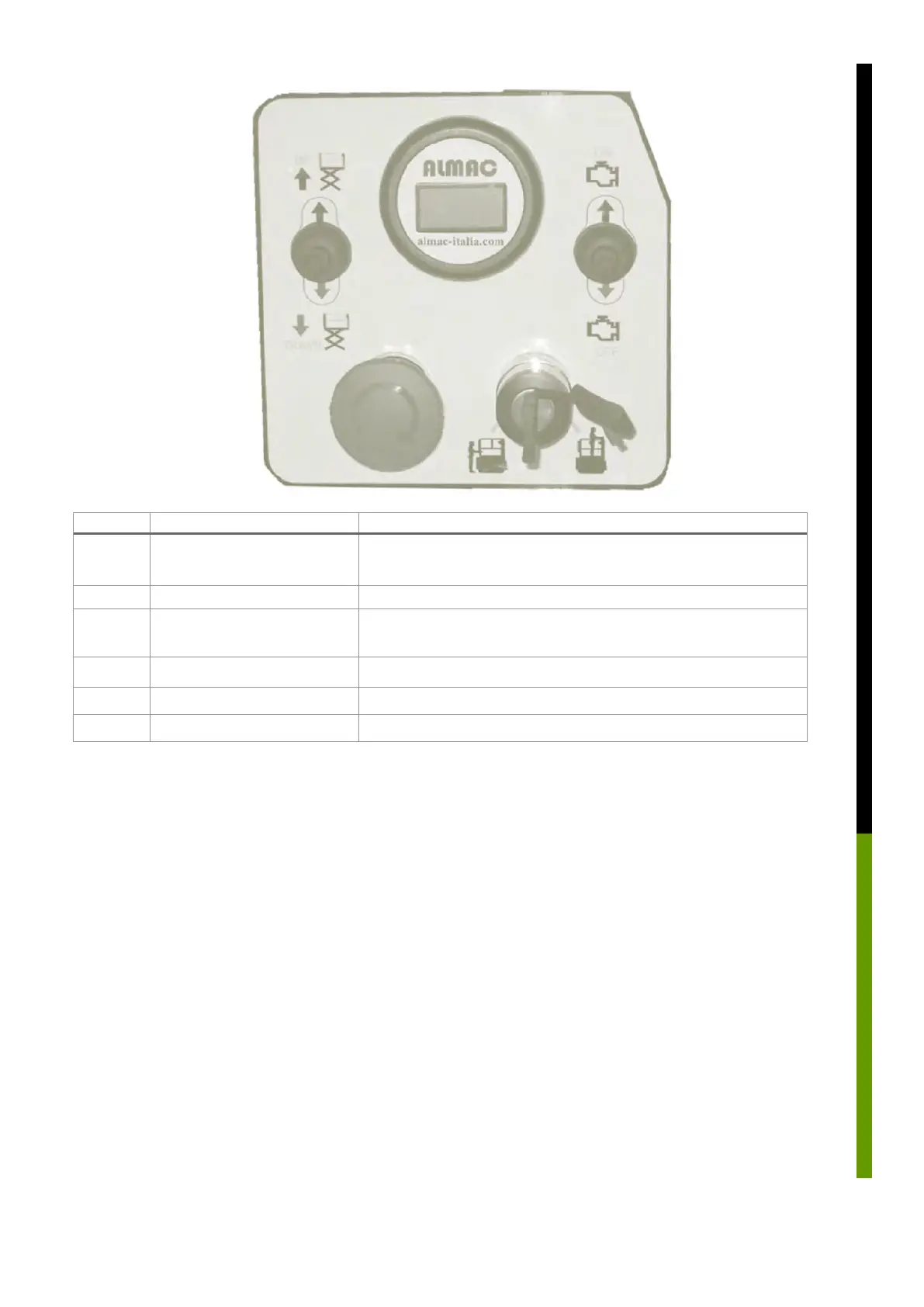

LEFT position = electrical panel on - mobile pushbutton panel
disabled - ground controls enabled
CENT
RAL position= platform off
RIGHT position = electrical panel on - ground controls disabled
- mobile pushbutton panel enabled
2
Bu
tton Platform emergency button
3
Return lever
Basket ascent/descent
4
Return lever Sta
rting/stopping the electric or internal combustion engine
4.5 Stopping the machine
4.5.1 Normal stopping
During normal platform use, releasing the MOVEMENT joysticks (10 and 11) stops the
movement. Each track has a braking system that prevents the machine from moving unless
hydraulic pressure is exercised to disengage it (see sect. 4.2.1-Drive and steering).
Releasing the RAISE platform or LOWER platform (15) button in normal working conditions,
stops the related movement.
Platform disabling and recovery is done as follows:
1. Stop the platform as described above
2. Cover the mobile pushbutton panel with the casing (see photo below)
3. Climb down from the basket using the ladder
4. Set the switch to the 3 position on the ground controls in the central position and then remove
the key
1
2
3
4
