6.11 Inspection of inclinometer operation
Perform a functional inspection of the platform's safety inclinometer at the inspection frequency
indicated in the general chart.
S
afety inclinometer
The platform must have the track WIDENED W=1500 mm (chassis not levelled).

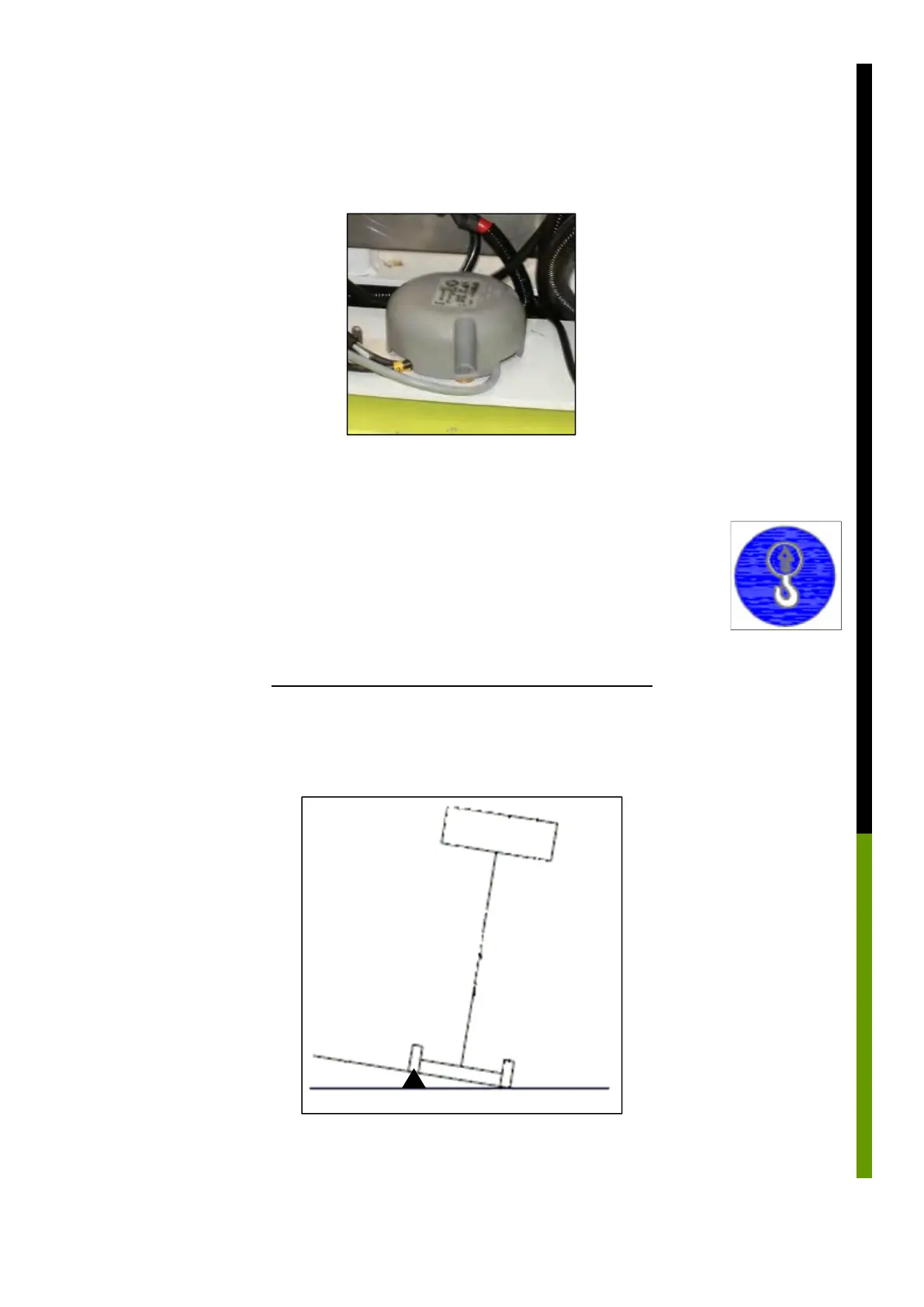

To test the electronic inclinometer, tilt the platform by placing the shims indicated in
the figure below, underneath the tracks near the roller centre line.
To do this, lift the machine from ground level using suitable equipment and the
anchorage points indicated by the relative signs:
CHECK WITH 1° OF LATERAL INCLINATION
Tilt the platform by placing the shims indicated in the figure below, underneath the tracks near the
roller centre line (inclination reached >1°):
S1= 30 mm
S1
