BIBI 850-BL Use and maintenance manual Rev.00
87

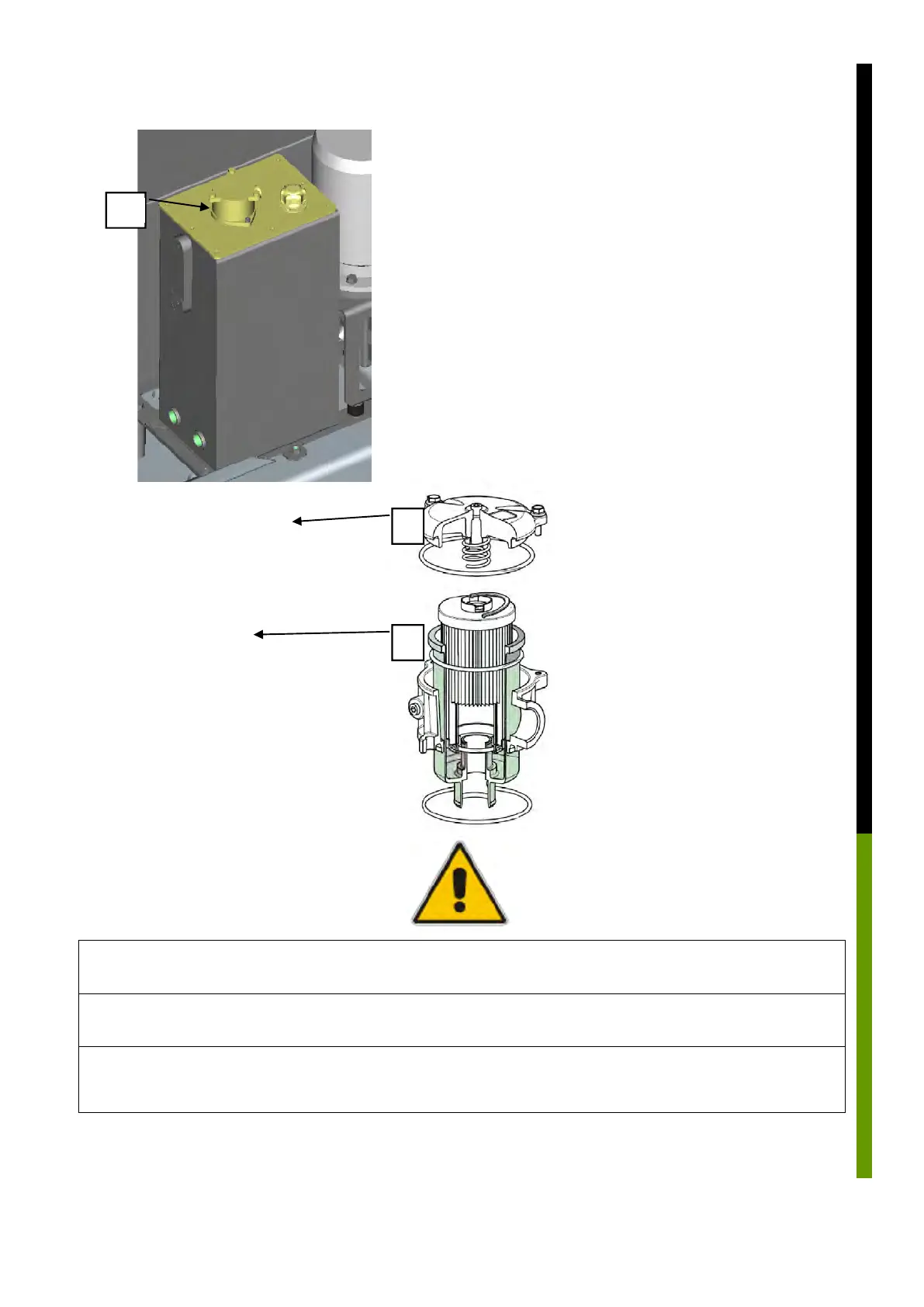

6.10.2 Return filter replacement
To replace the return filter located above the hydraulic tank,
proceed as follows:
1) Arrange the machine with the extending structure lifted
and block it with the special tool for maintenance (see sec. 2.9
Safety regulations during maintenance). Now turn it off
and deactivate the electric panel.
2) Unscrew the blocking screws (4) on the filter and remove
it from its housing
3) Unscrew the filter cartridge (5). Take care of the seals
and/or O-rings.
4) Remove the cartridge (6) and fit a new one in its place.
5) Work through the instructions above in reverse order to
restore the machine to its normal operating conditions.
Attention: during operations some oil could spill. Remove spilt oil with a cloth or place a vessel
underneath so that the oil drains into it.
ONLY USE GENUINE SPARE PARTS when replacing the filters. Contact the ALMAC
technical assistance service.
Do not reuse used oil. Do not dispose of it in the environment. Used oil must be disposed of as
required by the laws in force.
