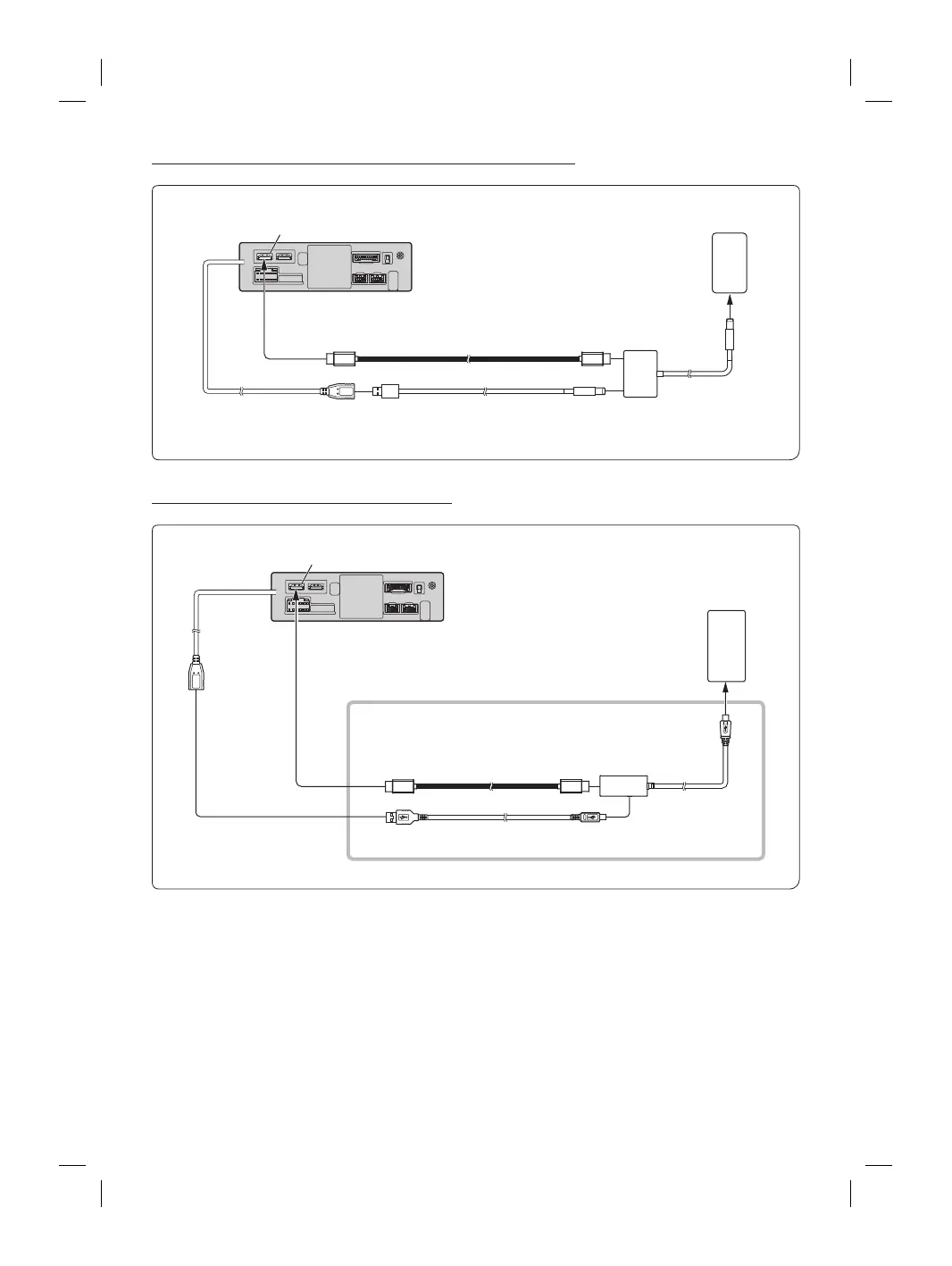

Connection of an HDMI Device (iPhone with a Lightning connector)
HDMI input connector
USB connector 2.4A (Black)
Lightning to USB Cable
KCU-471i (sold separately)
HDMI extension cable
(sold separately)
iPhone with a Lightning
connector (sold separately)
Lightning Digital AV Adapter
(Apple Inc., products) (sold
separately)
Connection of an HDMI Device (Android device)
HDMI input connector
Android device with
MHL connector
(sold separately)
■
MHL connection kit KCU-610MH
(sold separately)
HDMI connection cable
MHL conversion
adapter
Micro USB conversion cable
USB connector
2.4A (Black)
• A connection kit or adapter kit suitable for the type of terminal on the connecting device is required.
vice (using HDMI SELECTOR INTERFACE)
HDMI input connector
MHL device
(sold separately)
■
MHL connection kit KCU-610MH
(sold separately)
HDMI connection cable
(supplied with KCX-630HD)
MHL conversion
adapter
Micro USB conversion cable
HDMI-REMO-OUT
(Brown)
REMOCON IN
(Brown/White)
USB POWER
HDMI IN 2
HDMI IN 1
HDMI OUT
TOR
ACE
-630HD
ately)
DVD Player
(sold separately)
HDMI connection
cable
REM Connector
HDMI connection cable
(supplied with DVD Player)
-OUT Lead (Brown)
ion kit or adapter kit suitable for the type of terminal on the connecting device is required.
