ALPINE iLX-F509E 68-41657Z84-A (EN)ALPINE iLX-F509E 68-41657Z84-A (EN)
75-EN
Connection of an HDMI Device (iPhone with a Lightning connector)
HDMI input connector
USB connector 2.4A (Black)
Lightning to USB Cable
KCU-471i (sold separately)
HDMI extension cable
(sold separately)
iPhone with a Ligh
connector (sold separ
Lightning Digital AV Adapter
(Apple Inc., products) (sold
separately)
Connection of an HDMI Device (Android device)
HDMI input connector
Android device with
MHL connector
(sold separately)
■
MHL connection kit KCU-610MH
(sold separately)
HDMI connection cable
MHL conversion
adapter
Micro USB conversion cable
USB connector
2.4A (Black)
• A connection kit or adapter kit suitable for the type of terminal on the connecting device is required.

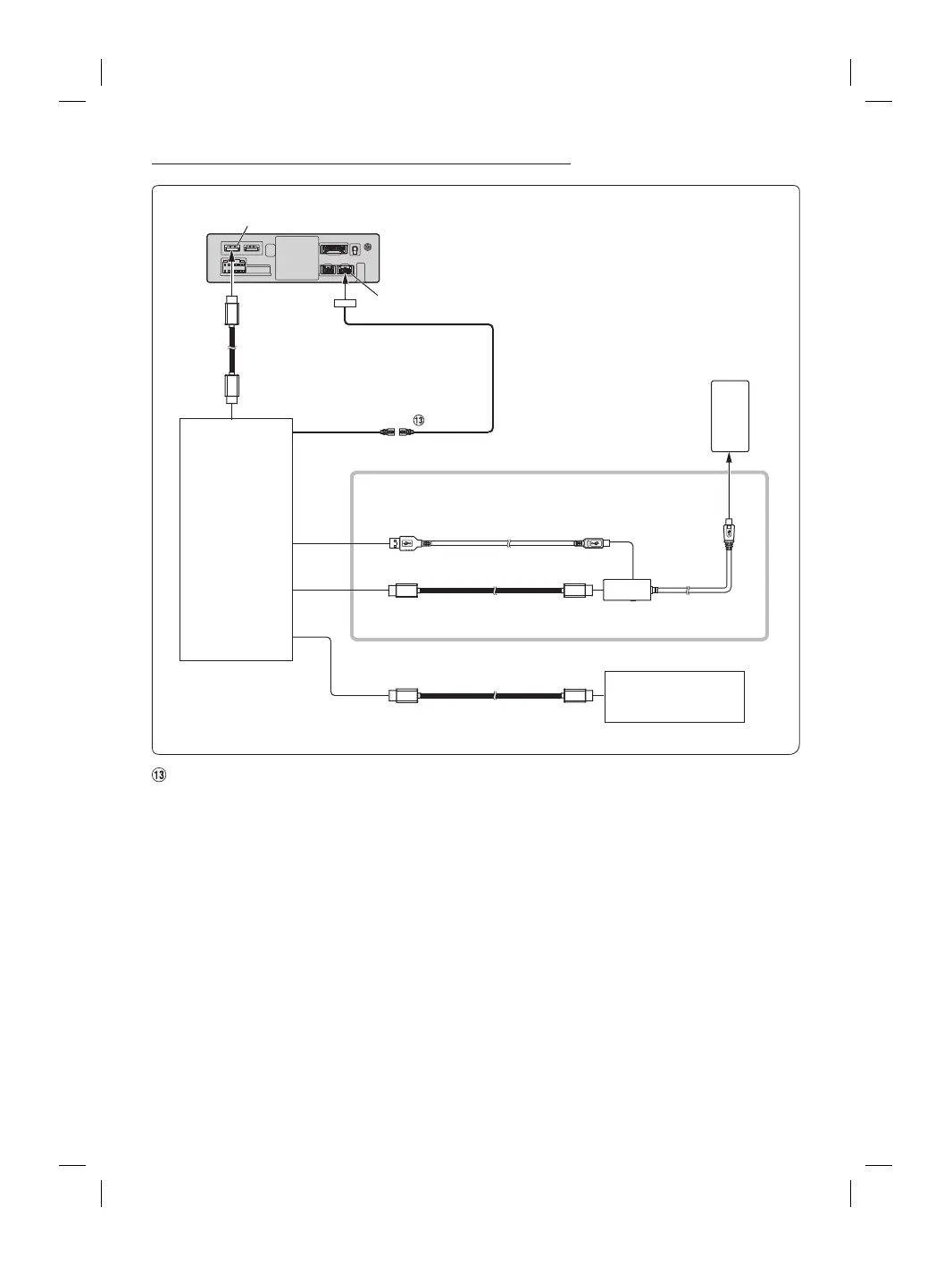

Connection of an HDMI Device (using HDMI SELECTOR INTERFACE)
HDMI input connector
MHL device
(sold separately)
■
MHL connection kit KCU-610MH
(sold separately)
HDMI connection cable
(supplied with KCX-630HD)
MHL conversion
adapter
Micro USB conversion cable
HDMI-REMO-OUT
(Brown)
REMOCON IN
(Brown/White)
USB POWER
HDMI IN 2
HDMI IN 1
HDMI OUT
HDMI SELECTOR
INTERFACE
KCX-630HD
(sold separately)
DVD Player
(sold separately)
HDMI connection
cable
REM Connector
HDMI connection cable
(supplied with DVD Player)
HDMI-REM-OUT Lead (Brown)
• A connection kit or adapter kit suitable for the type of terminal on the connecting device is required.
