Amazone AMATRON 3 Operating Manual

GPS track application
AMATRON
3 BAG0094.6 02.15
91

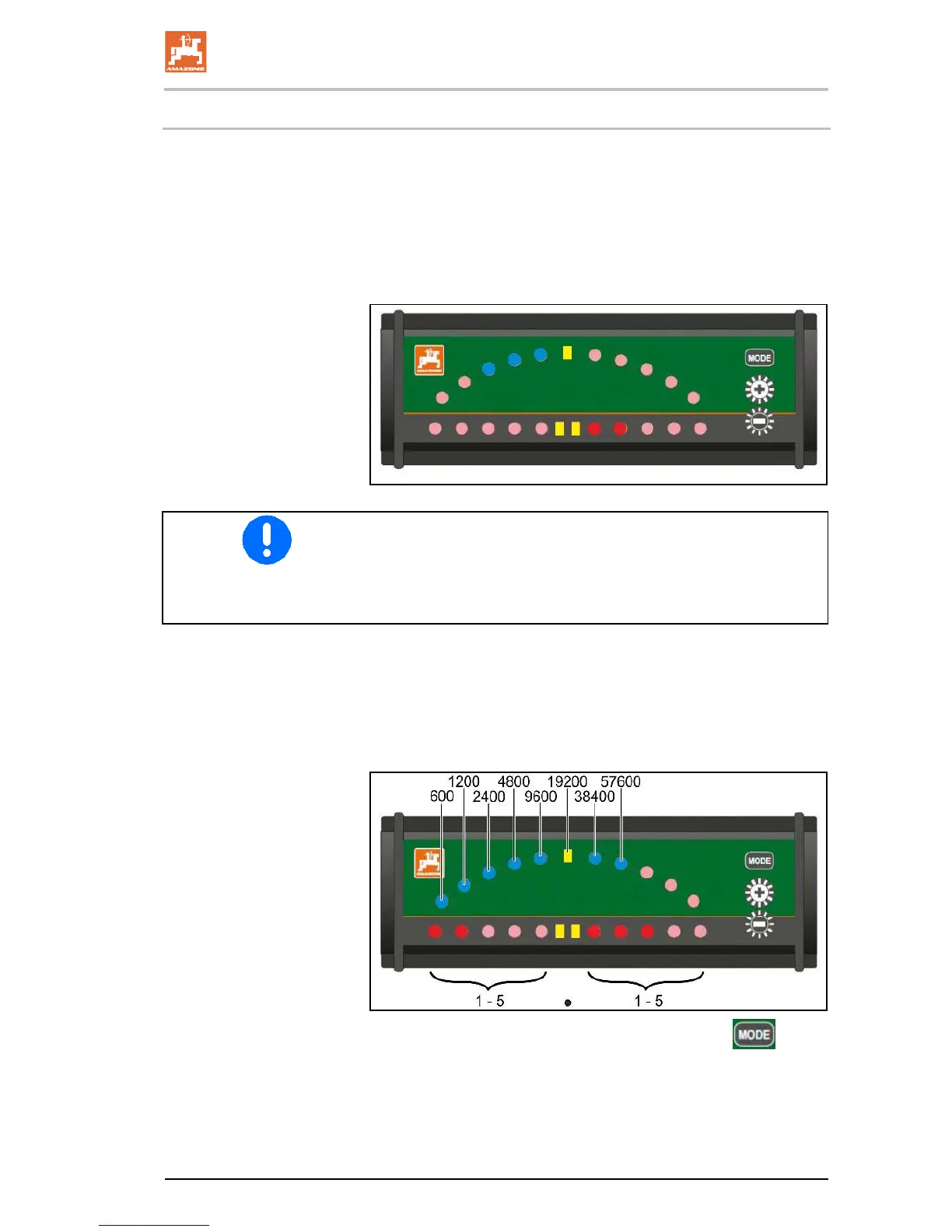

12.6 Light bar
The light bar shows the track being followed.
• The lower LED strip shows the deviation from the guide track to
the left or to the right.
• The upper LED strip shows the required steering angle to return
to the guide track.
• If only the yellow LEDs are lit, the implement is on the guide
track.
The light bar is set to a baud rate of 19,200 as standard. The
AMATRON 3 and the GPS receiver must be set to the same baud
rate as the light bar.
The baud rate of the light bar can be adjusted in the Configuration
menu.
The upper LED strip shows the baud rate in the configuration menu.
→ Baud rates (600 to 57,600) rising from the left.
The lower LED strip shows the software version in the Configuration
menu.
→ Software version: x.x (x = 1-5 illuminated LEDs).
• Calling up the configuration menu: Press and hold and
turn on the AMATRON 3.
• + /- Change the baud rate in the Configuration menu.
• To exit the Configuration menu: Turn the AMATRON 3 on again.
