12 Status Registers
You can use status register programming to determine the operating condition of the AC
source at any time. For example, you may program the AC source to generate an MSS bit
when an event such as a current limit occurs. When the MSS bit is set, your program can
then act on the event in the appropriate fashion.
Service
Standard event status Status request
Event Enable Logic Output Byte enable Logic
*ESR? *ESE *STB? *SRE
n.u. 0 Queue n.u. 0
n.u. 1 Data n.u. 1
QYE 2 4 4 Data n.u. 2
DDE 3 8 8 Data n.u. 3
EXE 4 16 16 OR MAV 4 16 16 OR
CME 5 32 32 ESB 5 32 32
n.u. 6 MSS 6 64 64
PON 7 128 128 n.u. 7

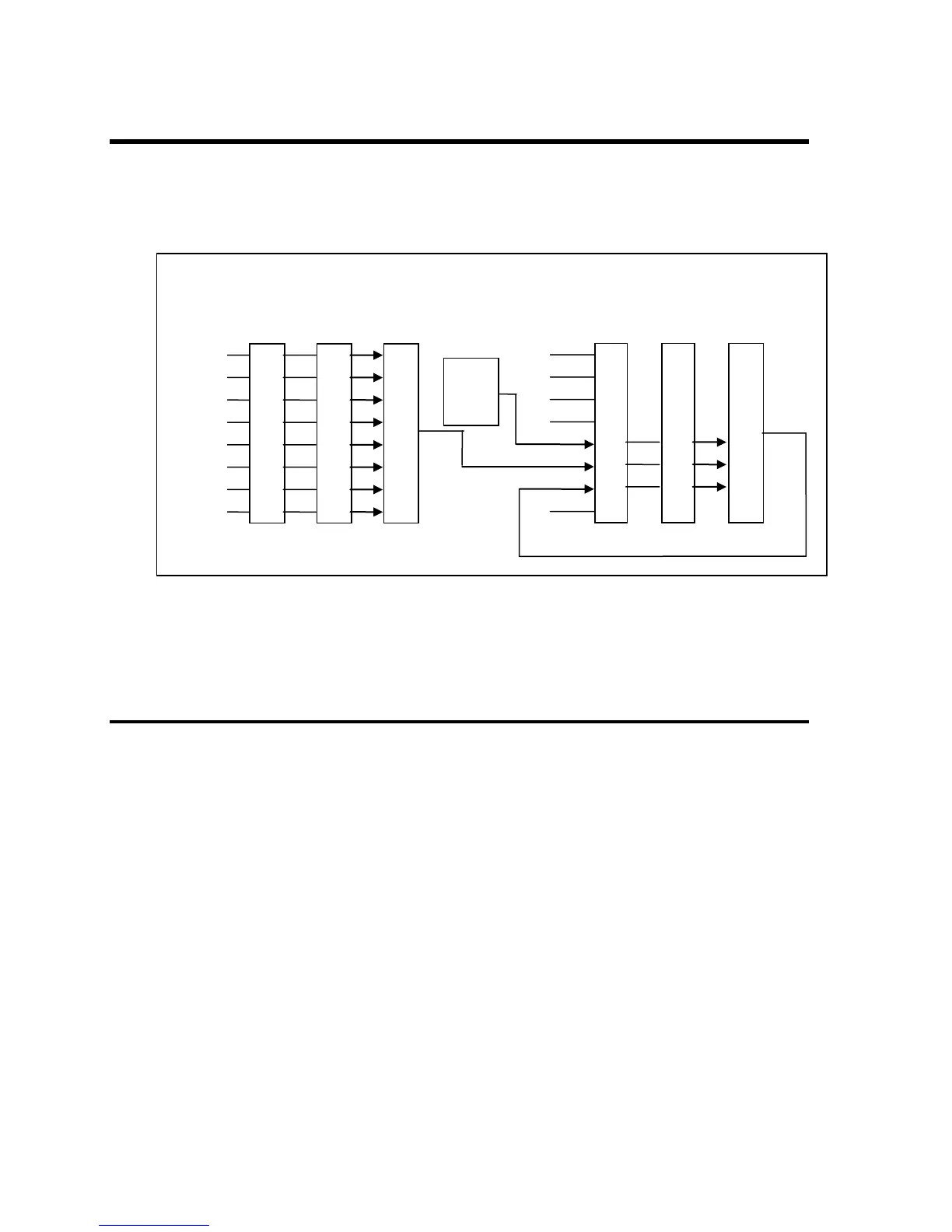

Figure 12-1: AC Source Status System Model
Figure 12-1 shows the status register structure of the AC source. The Standard Event,
Status Byte, and Service Request Enable registers and the Output Queue perform standard
IEEE-488 functions as defined in the IEEE 488.2 Standard Digital Interface for
Programmable Instrumentation.
12.1 Power-On Conditions
Refer to the *RST command description in paragraph 10.10.6 for the power-on conditions of
the status registers.
