6-10 | Model 241CE II Hydrocarbon Dewpoint Analyzer
HEAT SINK SLEEVE
(PART OF: 100-2083)
M6 X 20 HEX SOCKET SCREW
(300-4492)(24 PLACES)
SAMPLE CELL ASSEMBLY
(100-2652)
O-RING, EPR-218
(300-4511)
OPTO-RING ASSEMBLY
(100-1184)
OPTO-RING PWB
FLEX BOARD
COOLER HOUSING
(300-6062)
PELTIER COOLER
ASSEMBLY (100-1578)
APPLY THERMALCOTE
(300-4477)
HEATSINK ASSEMBLY
(100-2083)
LOCATING PIN
(300-4508)
FLAME ARRESTOR
(301-1821)
DOWEL PIN
(300-4499)
INDEXED MIRROR ASSEMBLY
(100-2653)
APPLY THERMAL COTE
TO SURFACE (300-4477)
RTD OPENING
DO NOT REMOVE
FLAME ARRESTOR LABEL
COOLER PCB
(100-0666)

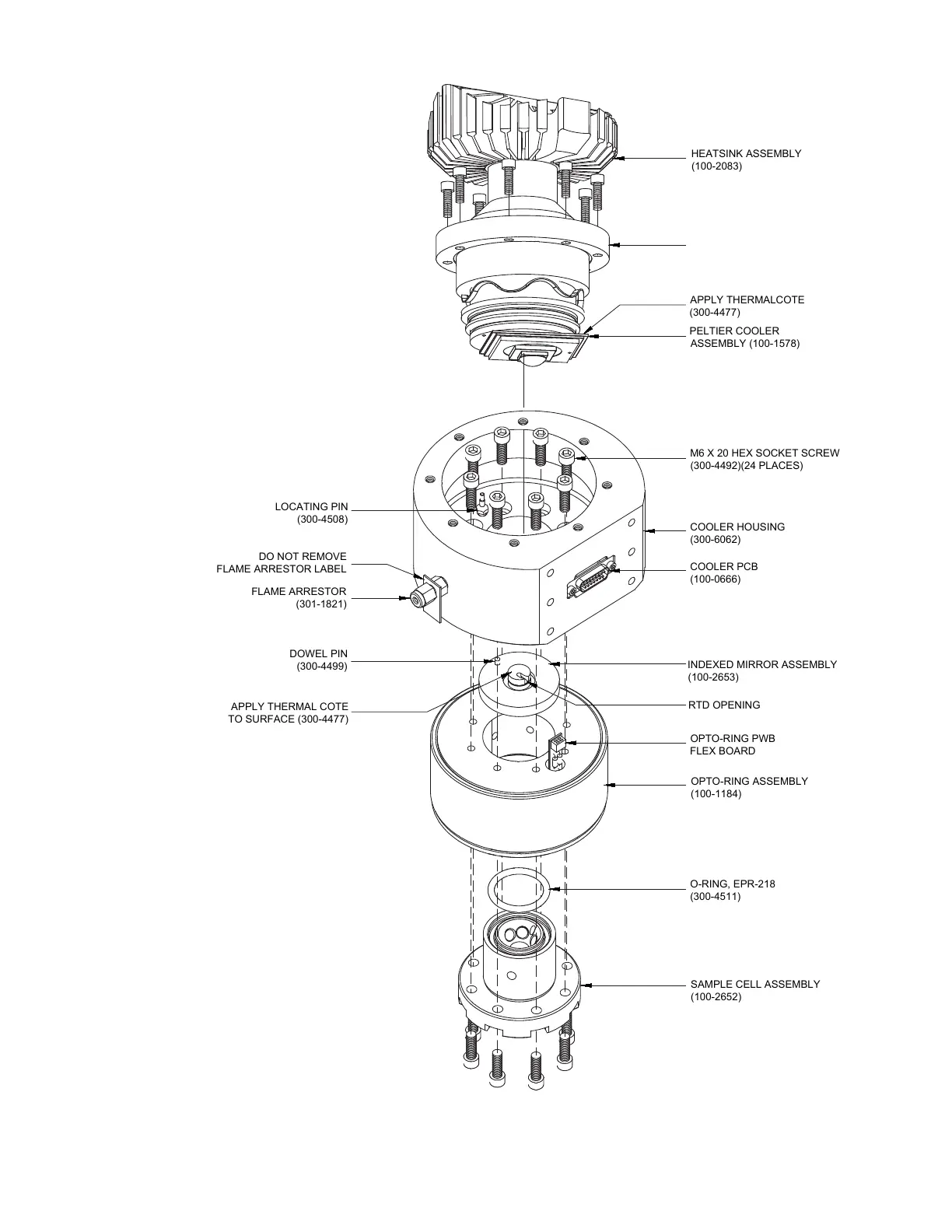

Figure 6-1.
Measuring Cell
Assembly.
