Sample Path
Sample gas is extracted from the process line via a 1/4" tube on the Sample
Probe. In the Sample Probe (Figure 1-2), the sample gas passes through an
isolation valve and into the Sample Line which carries it to the Filterblock
Assembly.

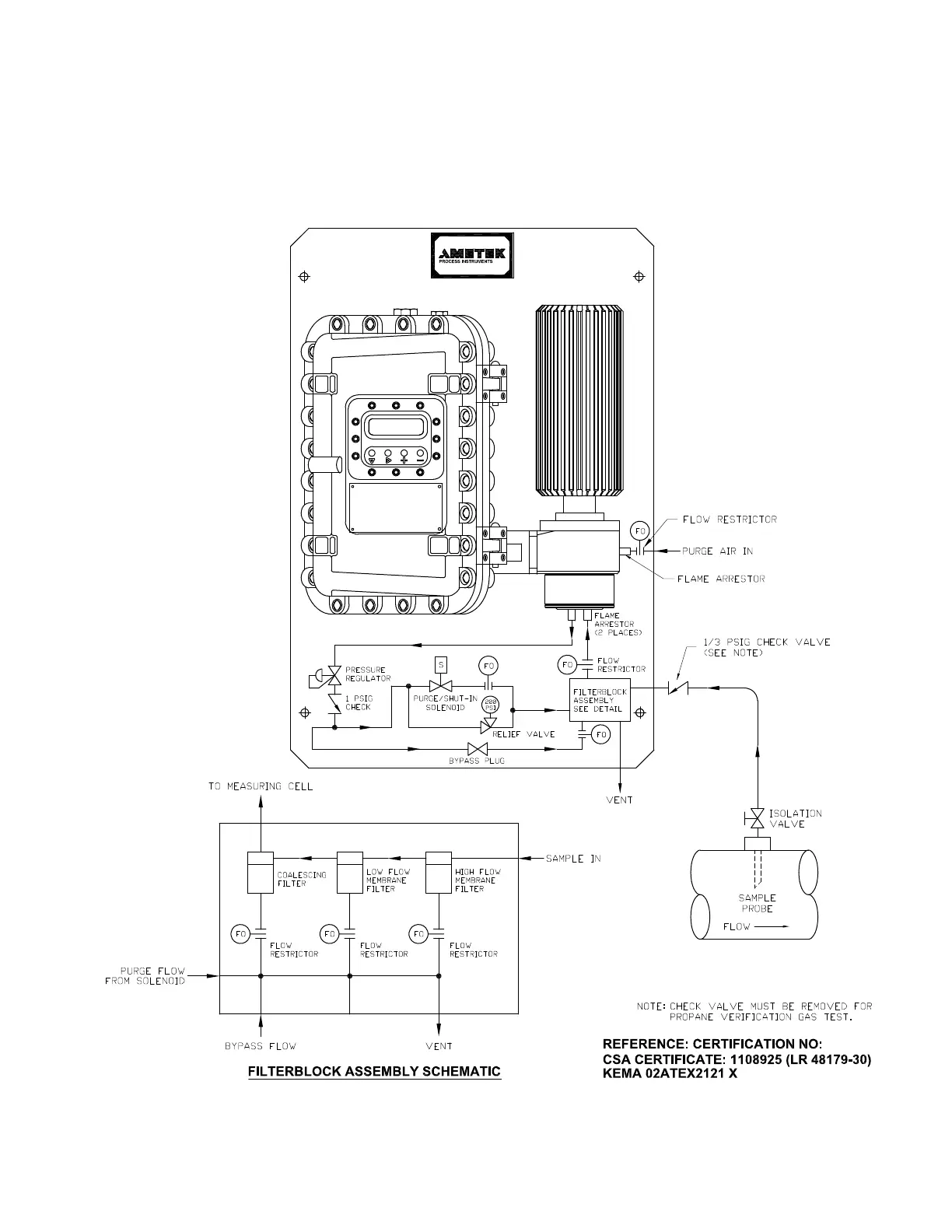

Figure 1-2.
Gas ow schematic.
