Overview | 1-3
About the Analyzer Sample System and Electronics
The temperature of the analyzer and its sample system must be at
least 15 °C (27 °F) above the highest expected HCDP temperature of
the sample gas stream. The ambient temperature around the analyzer
and the gas flowing into the Measuring Cell should not exceed 40 °C
(104 °F).
The sample filtering, flow control, and connection points for the Sample
and Vent Lines are all provided on the backpan (Figure 1-1). The remain-
ing components of the sample system – Sample Line, Sample Probe, Vent
Line to a low pressure flare header (or vent to atmosphere) – can be sup-
plied by AMETEK or provided by the customer.

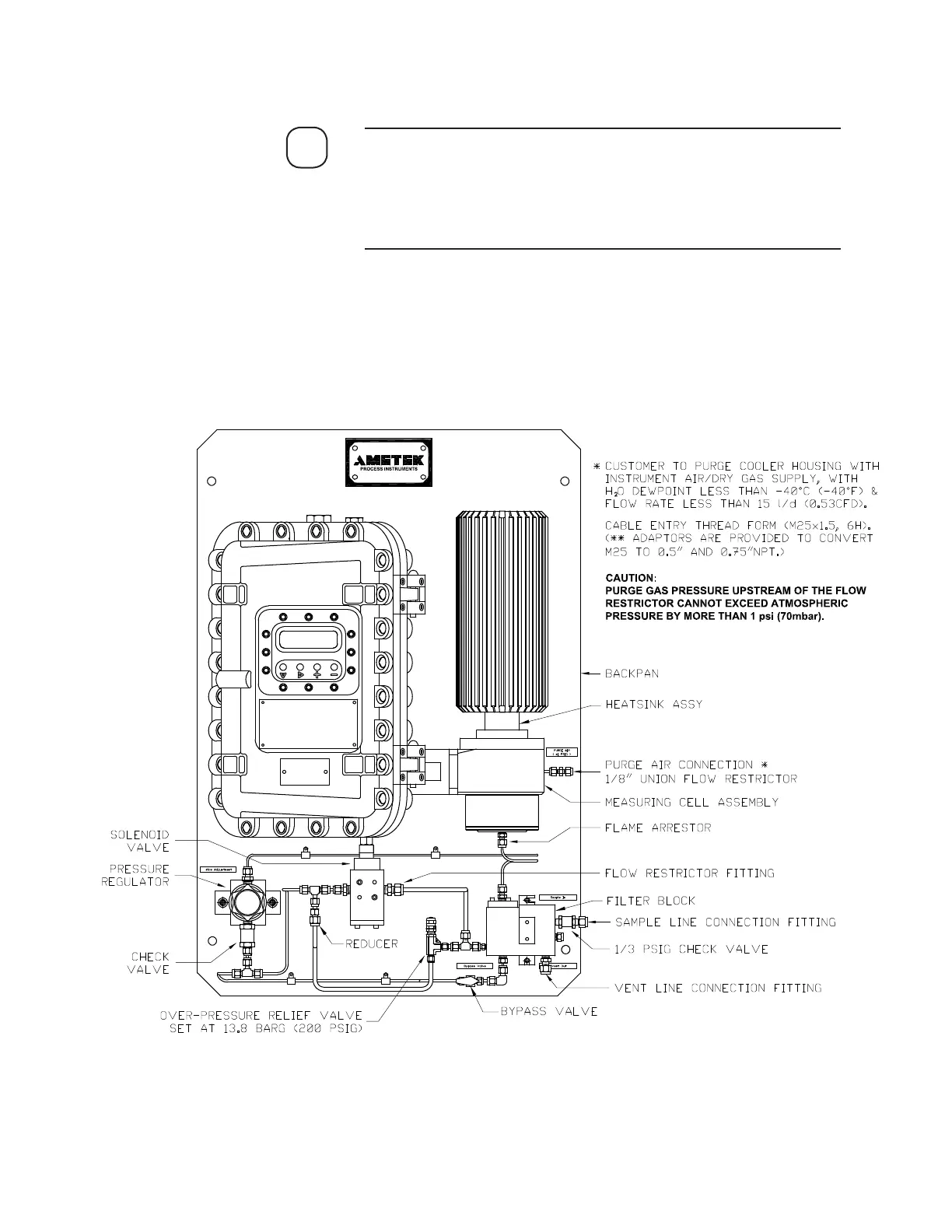

Figure 1-1.
Sample system
component layout.
