3-18 | Model 241CE II Hydrocarbon Dewpoint Analyzer
Connecting the I/O Signals, Alarm Relay Contacts, and AC Power
The analog input/output signals, alarm relay contacts, and AC power
requirements are specific to each analyzer installation. The wiring require-
ments are discussed in the following pages, and illustrated in Figure 3-3.

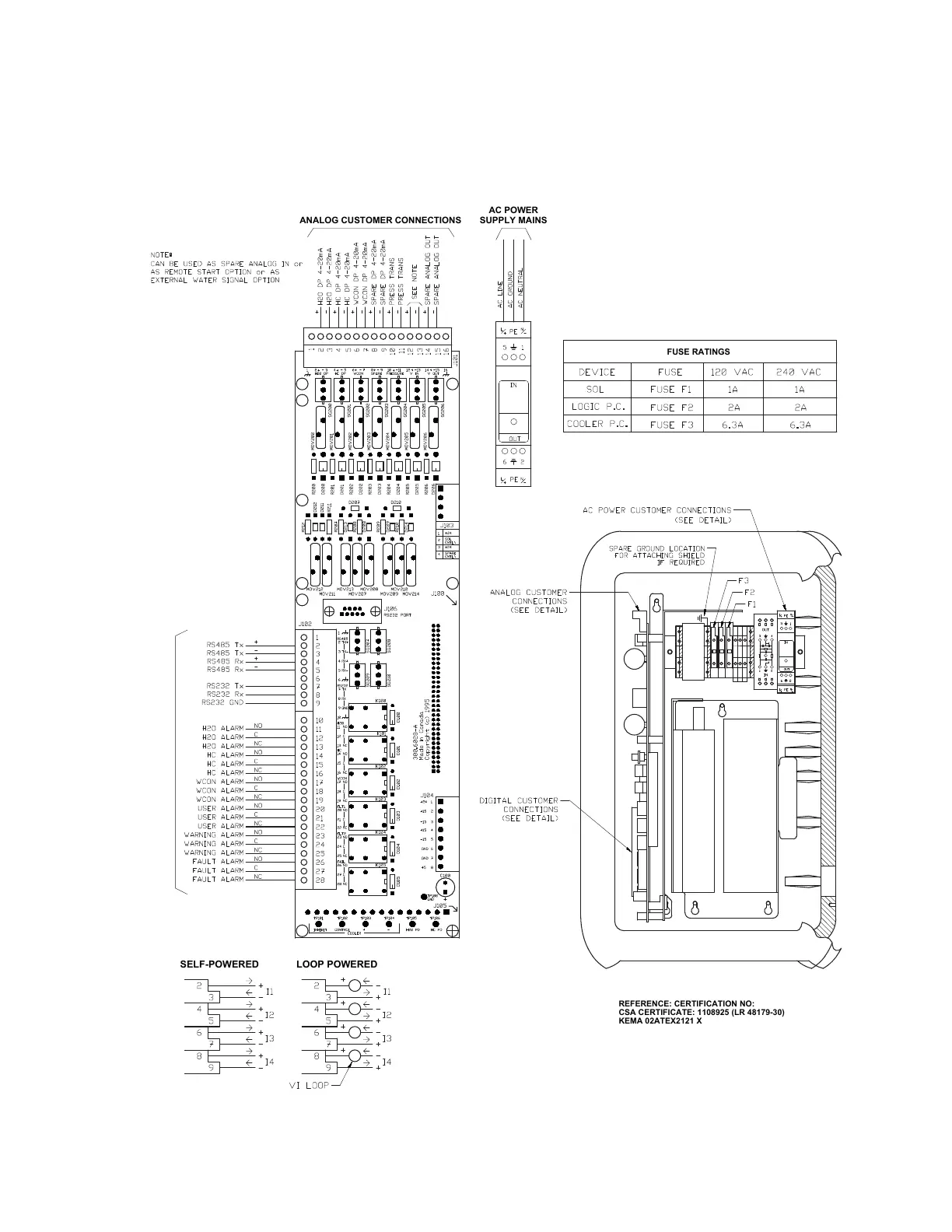

Figure 3-3.
Customer connections,
Termination board.
DIGITAL CUSTOMER CONNECTIONS
ANALOG CUSTOMER CONNECTIONS
AC POWER
SUPPLY MAINS
SELF-POWERED
LOOP POWERED
FUSE RATINGS
KEMA 02ATEX2121 X
CSA CERTIFICATE: 1108925 (LR 48179-30)
REFERENCE: CERTIFICATION NO:
