A-22 | Thermox WDG-V Series Analyzers
If you have the Combustibles or Methane options, you will be prompt-
ed to enter those gases as well if you are calibrating them at this time.
9. If your analyzer is equipped with the Combustibles option, you are
then prompted to Inject the Combustible Span Gas to the calibration
inlet port of the sensor. Click the OK button when you have applied
this gas.

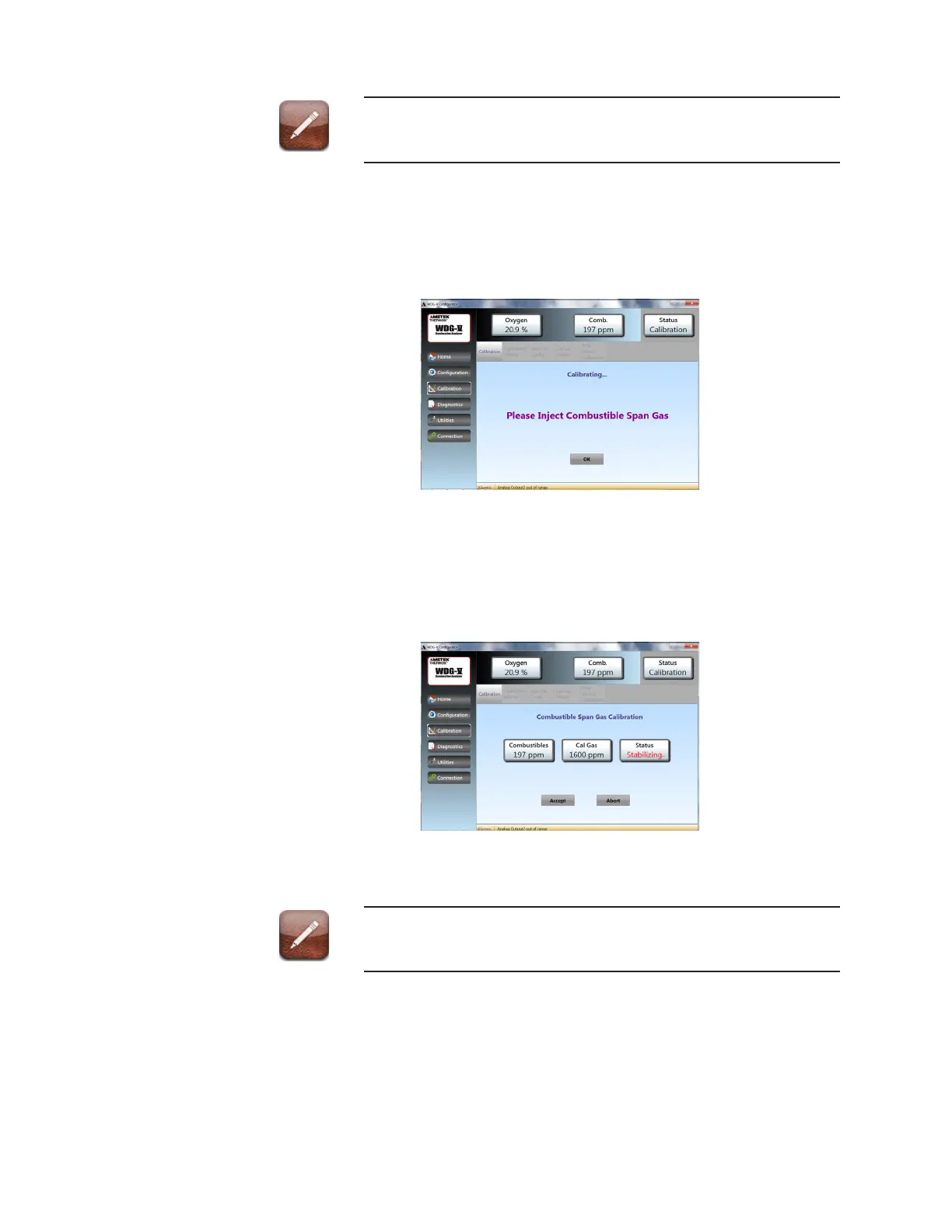

Figure21.Calibration_InjectCombustibleSpanGasCalibrationscreen.
10. The system will calibrate the combustibles span gas. When the read-
ings have stabilized and the Status is READY, click the ACCEPT
button to accept the values and continue the calibration or click on the
Abort button to abort the calibration.
Figure22.Calibration_CombustibleSpanGasCalibrationscreen.
If you have the Methane option, you will be prompted to enter this gas
as well if you are calibrating them at this time.
When all gases have calibrated, the screen displays the Calibration Results
that include % drift as well as recovery time. If the calibration is success-
ful, a large green checkmark will be displayed. If it is not, a large red X is
displayed.
