This screen displays the Outputs available and the Set Values and Get
Values (real-time values) and allows you to control the outputs directly.
You can access the Set Value fields to change these values and to Open or
Close the Output Relays. It also displays the status of the Contact Input
on the sensor board interface. The user must provide the physical con-
nection to the appropriate terminal block (Contact In) that allows access
to the switch to electronically (open/close) trigger a calibration. When
Diagnostics Mode is on, the close contact switch is open, to prevent the
analyzer from accidentally triggering an auto calibration.
Inject Gas
Use this screen to test the flow of gas to the analyzer.

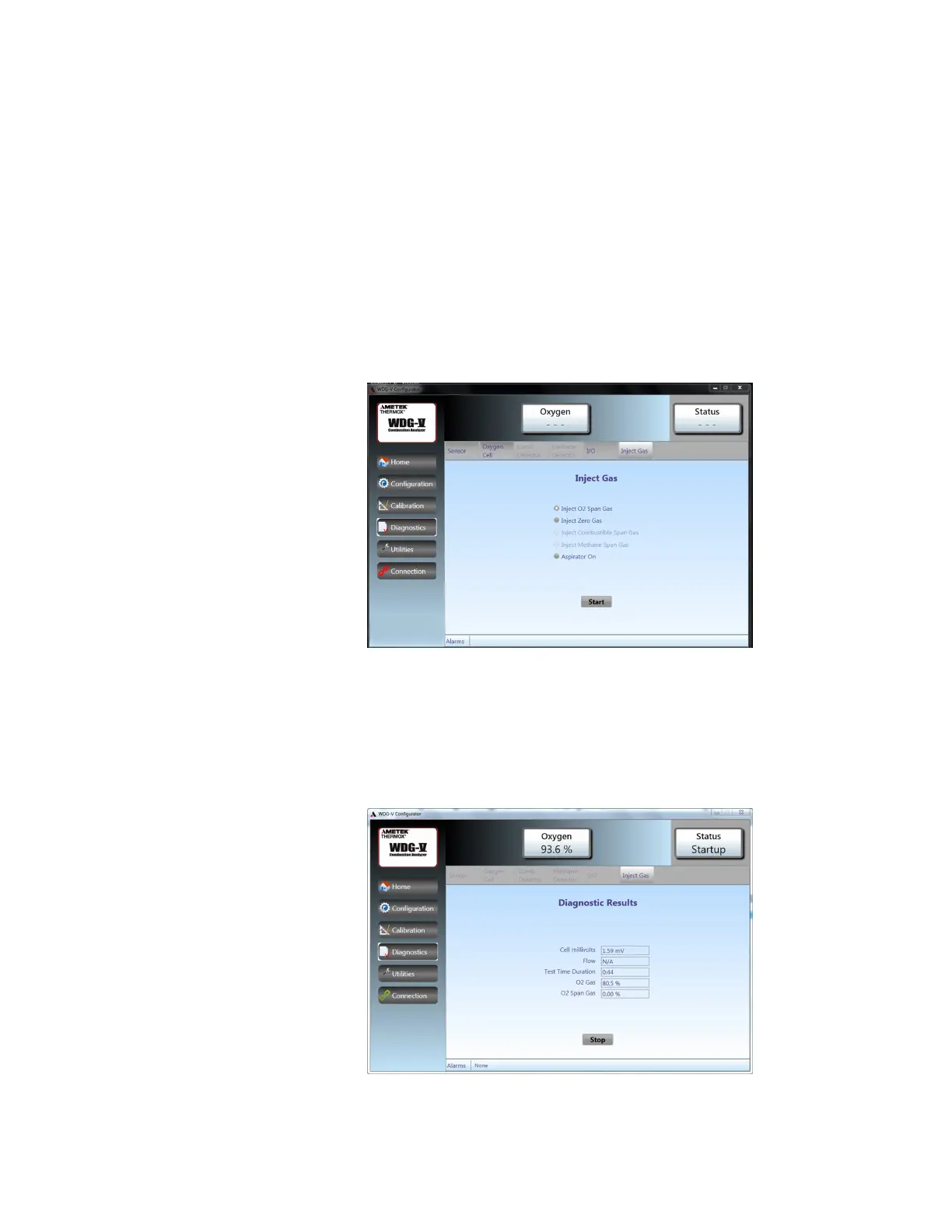

Figure44.Diagnostics_InjectGasscreen.
• Select the gas to inject. Only one gas can be selected.
• Click on the START button to begin the gas flow.
• Click on the STOP button to stop and gas flow and to view the Diag-
nostic Results as seen below.
Figure45.Diagnostics_InjectGasDiagnosticResultsscreen.
