A-8 | Thermox WDG-V Series Analyzers
Conguration_ProcessAlarms

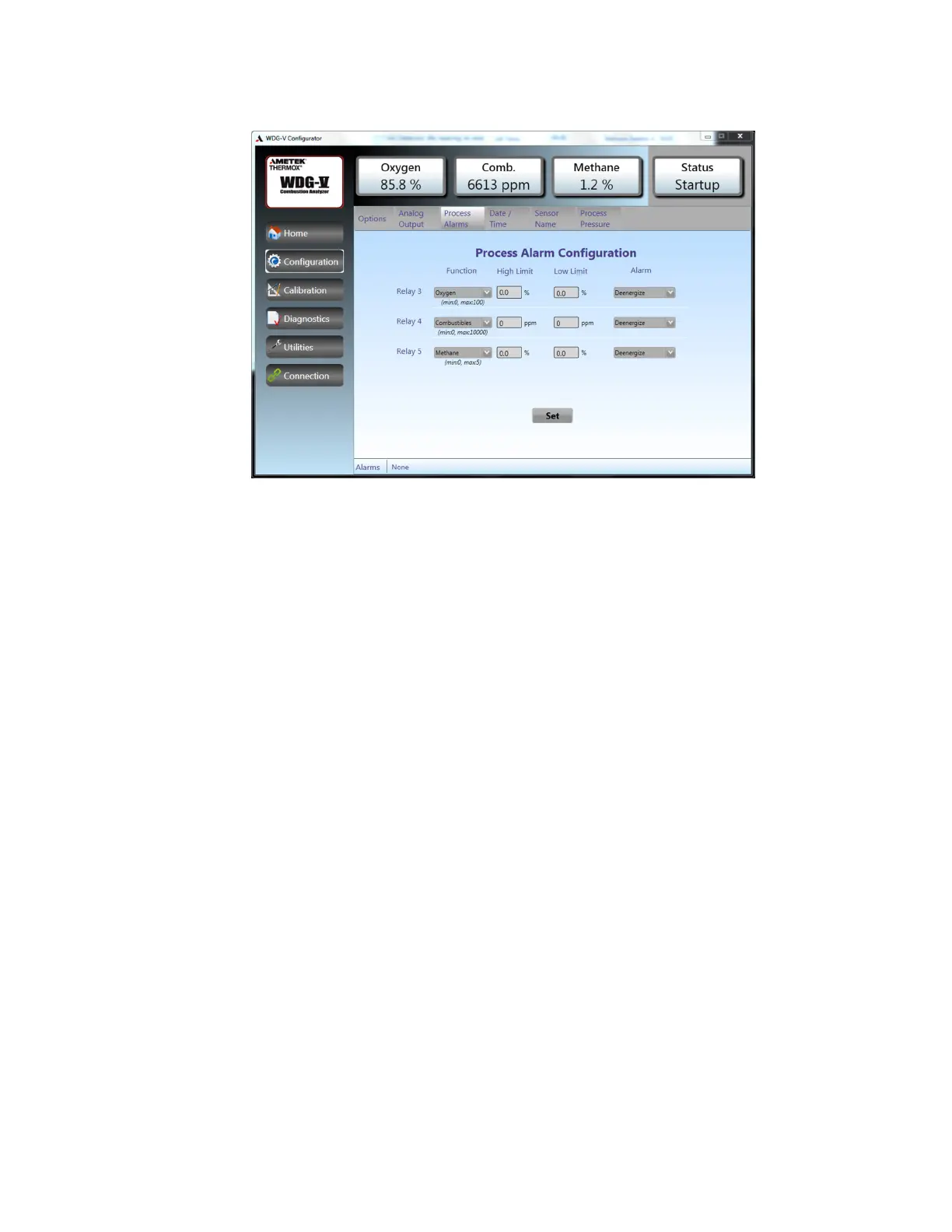

Figure6.Conguration_ProcessAlarmsscreen.
Process alarms are activated when the process reading levels, based on
what the user has defined, have been exceeded. There are three process
alarms (relays) available for configuration. The option for each is as fol-
lows:
• Function: O
2
, Combustibles, Methane, Disable
• High Limit
• Low Limit
• Alarm: Energize/Deenergize
When you have entered the information for each function, click the SET
button at the bottom of the screen to apply the values.
