Ametek Thermox WDG-VC

6-6 | Thermox WDG-V / VC / VCM with Blow Back
FURNACE
O-RING
CELL
HEX NUT
CELL HOUSING
WASHER
HOLD CELL HOUSING
USING 7/8" OR 1" WRENCH
(23mm or 26mm)
TURN HEX NUT COUNTER
CLOCKWISE USING A
7/8" WRENCH (23mm)
CELL CLIPS
CELL REPLACEMENT

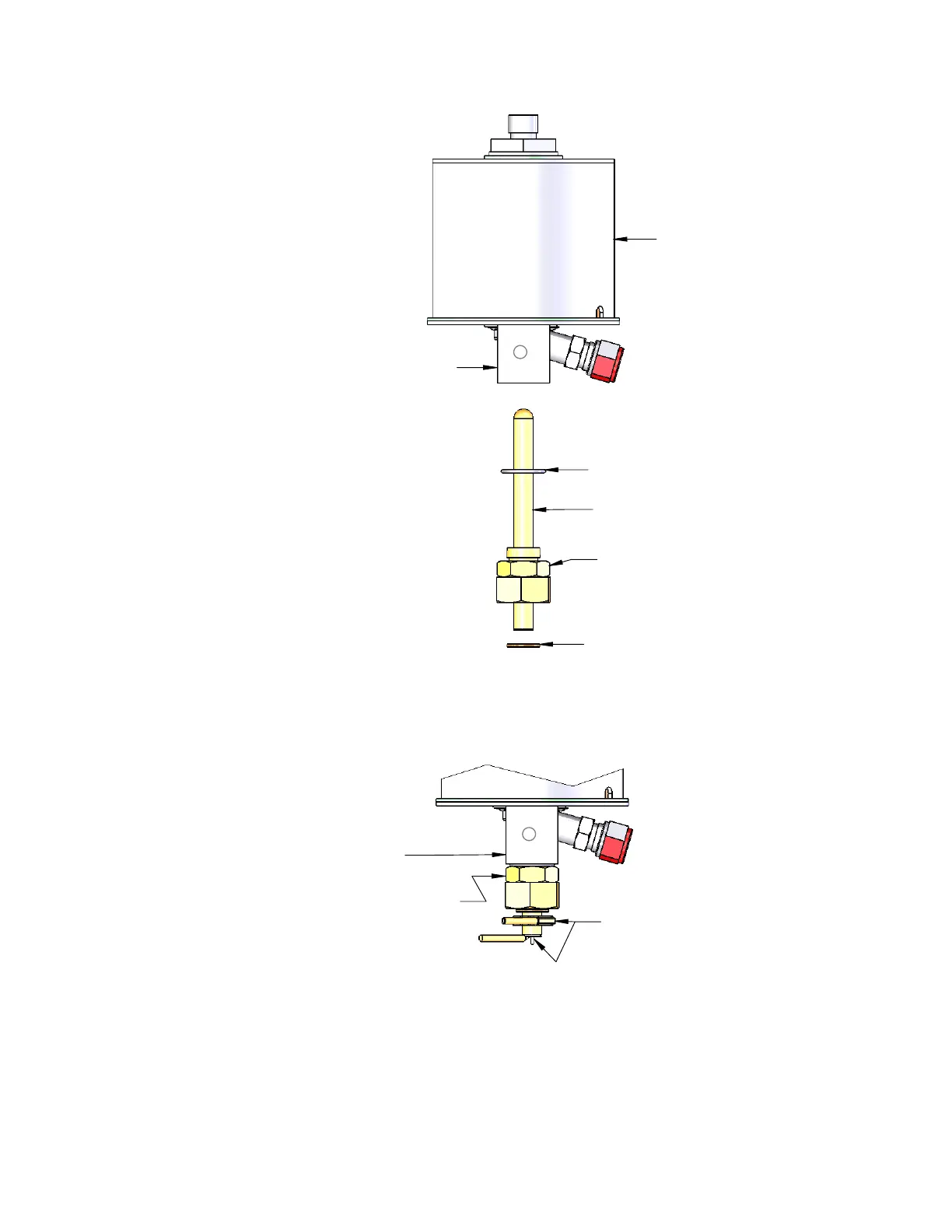

Figure 8-2. Cell replacement.
