AMF S-4000 - TKF ADJUSTMENTS; Feed Assembly and Stitching

1-96
S-4000
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
Main cam Home position
Feed reversing
lever
Stop disk
Drive spring

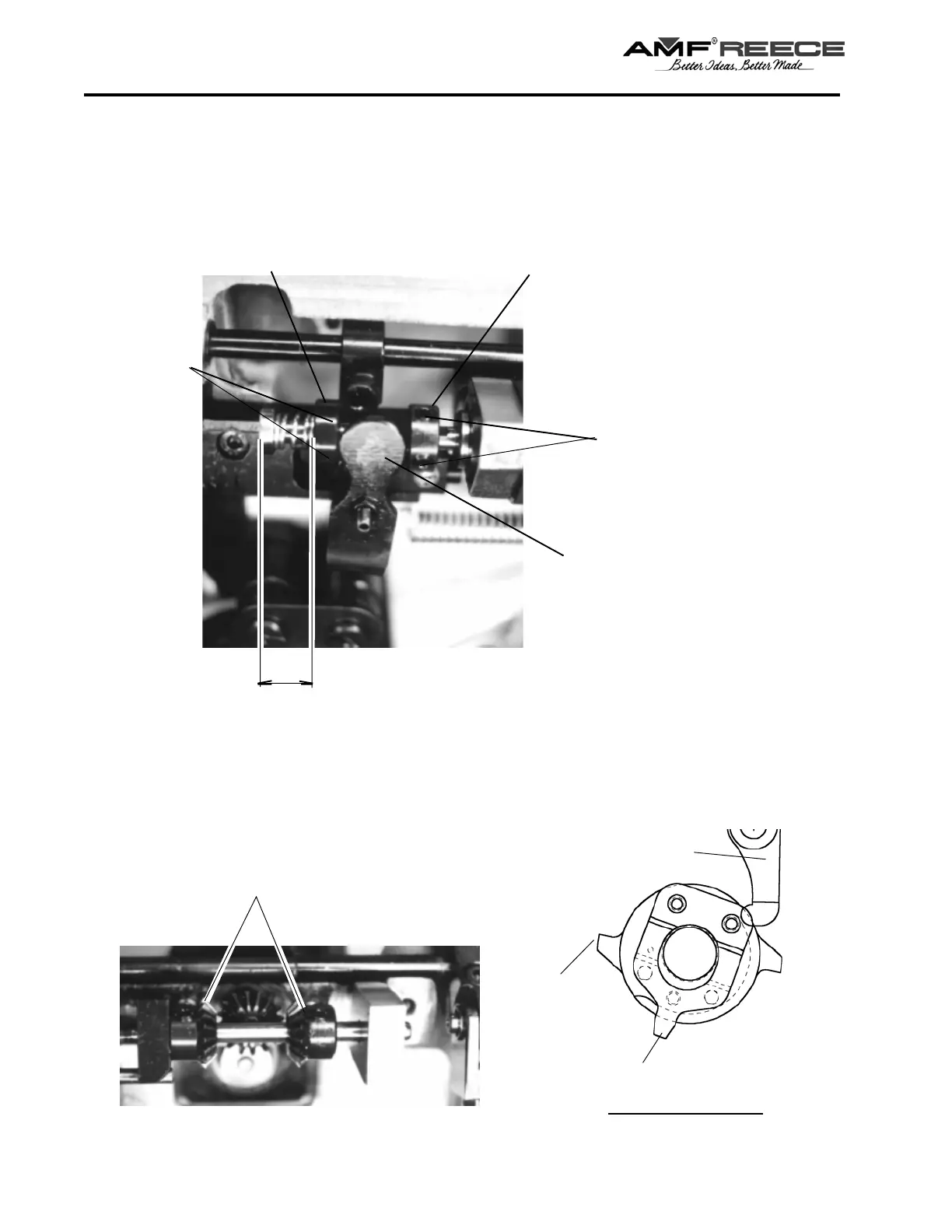

Feed Assembly
To set the clearance 10mm between the feed shaft and the left collar face loosen the two set screws on the
collar and push the end of the feed shaft. Tighten the two set screws.
Set
screws
Set
screws
Right collar
Left collar
10 mm
Stitching
The home position before sewing as follows:
- the bevel gears on the feed shaft are not engaged with the vertical bevel gear
- the clamp plate is positioned all the way to the right (to the head casting)
Bevel gears
TKF ADJUSTMENTS
Feed
reversing
lever
