S-4000
1-53
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
ADJUSTMENTS
Feed Assembly
Rotate the handwheel to verify all bevel gears are disengaged, when the machine is in the neutral,
barring position, as illustrated.

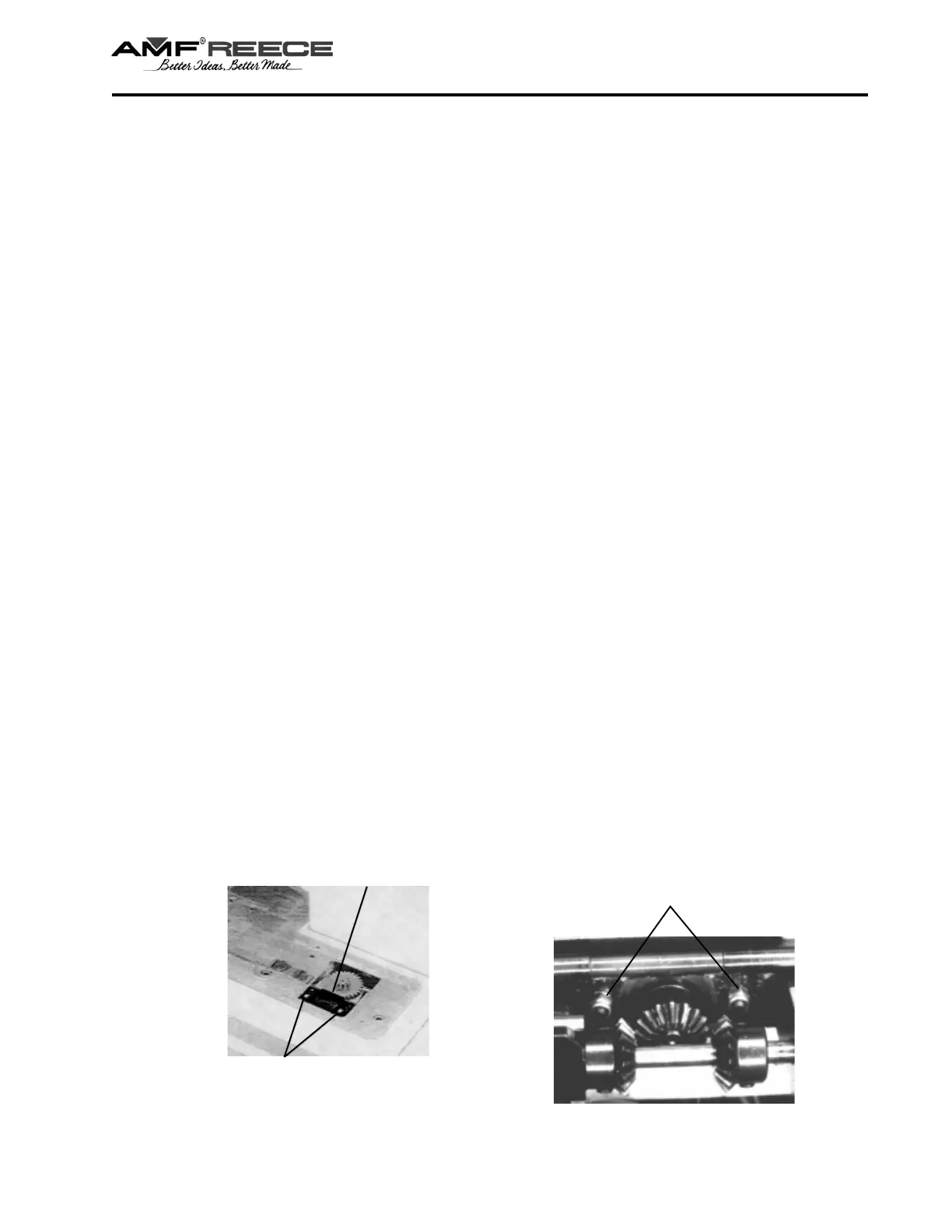

Slip Clutch
The slip clutch pressure is factory set and under normal conditions will not need adjusting.
The correct clutch torque setting is 4.3 centimeter kilograms, (60 to 65 inch ounces).
Hold the nut and tighten the adjusting screws with a torque screwdriver. Apply an equal amount of
pressure to both sides of the clutch.
CAUTION! If a torque screwdriver is not available, position both screw ends, until two screw threads are
visible above the lock nut.
Note: If disassembling a properly adjusted clutch, count the number of threads extending past the
lock nuts and install the clutch to the original setting.
CAUTION! Too little torque will produce an improper material feed.
Too much torque may damage parts.
Slip clutch
Lock nuts
Adjusting screws
Second bar
During the second bar the control spring of the main cam and of the shifter right arm is loosen, disengage
the bevel gears and machine feeds in one place.
Position the left bevel gear to engage with the vertical bevel gear.
Tighten the bevel gear set screws.
Position the drive crank firmly against the left bevel gear.
Tighten the drive crank set screw.
