ADJUSTMENTS
Feed Timing
Note: Start of the feeding occurs when the needle is out of the fabric and the needle tip is closely above the
fabric.
If incorrect:
Position the machine in the first or second row of stitches, not the barring position.
Loosen the feed cam set screws and adjust the feed cam position to move the clamp plate, when the
needle is out of the fabric.
Tighten the set screws.

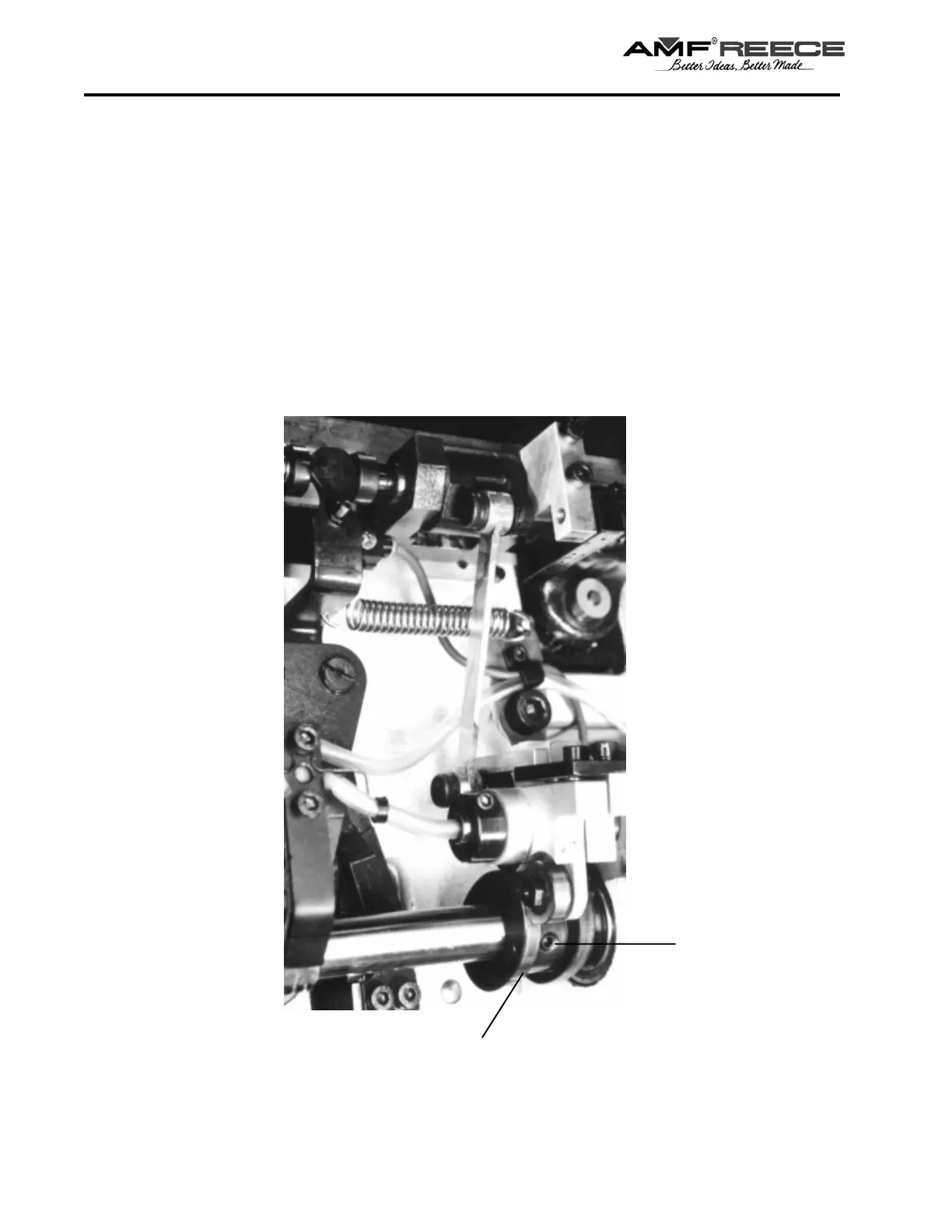

Set screws
Feed cam
