PRELIMINARY INSTRUCTIONS - BH MACHINE
Before performing any machine adjustments, understand how to manually position the machine in the
different normal operating cycle stages.
Normal Operating Cycle Stages
Home position
First row of stitches
First bar
Second row of stitches
Second bar

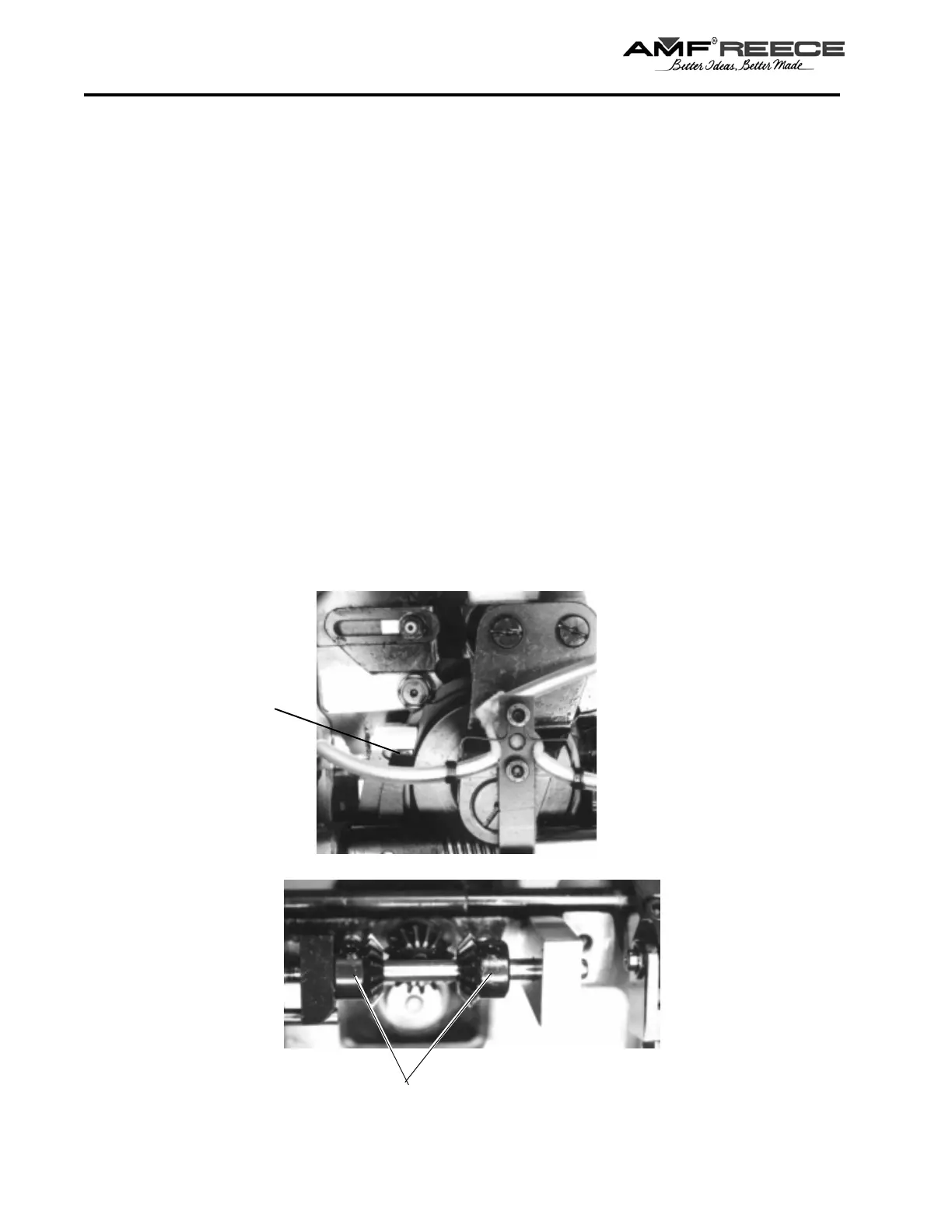

Home Position
The drive spring is within 2 mm, (1/32") of dropping into the left shifter block detent.
The two horizontal bevel gears are slightly disengaged from the vertical gear.
The clamp plate is positioned to the right, towards the head casting.
The needle bar is in the up position.
Disengaged bevel gears
Drive spring
